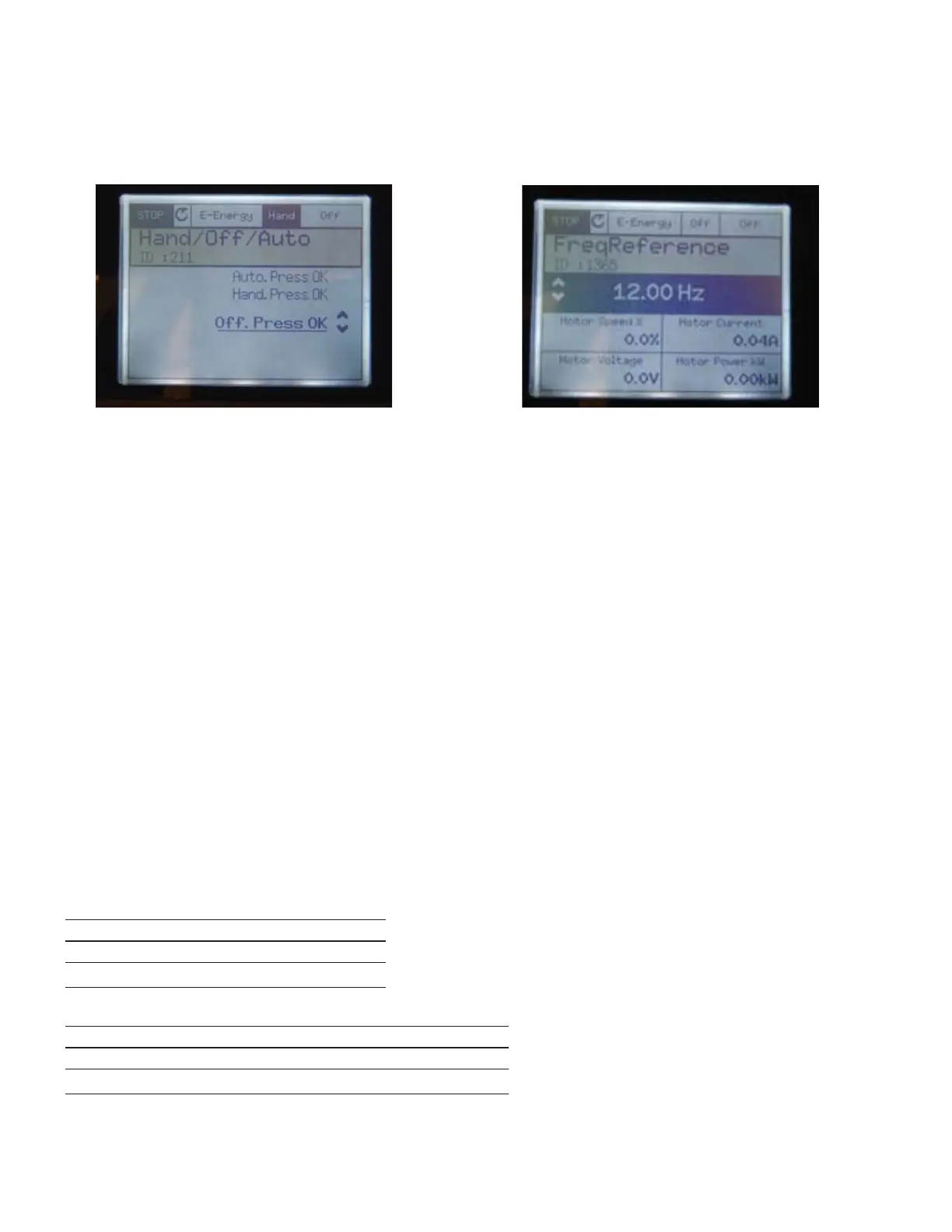

When control place Off is selected, the Drive cannot be started anywhere. It prohibits the start command for both Drive and
Bypass. If the M1 option is supplied, the Bypass may force started in the HOA off mode by using the Door switch.
Key Parameters related to proper IntelliPass Bypass operation
The following parameters are related to Bypass functionality and are factory default set. Changing them will affect proper
IntelliPass operation.
P2.1.2 Bypass: This parameter is for activating the Bypass functionality. It is factory enabled. If disabled the Bypass keypad
button is inactive and some parameters may be hidden. This is part of the Start-up wizard
P2.3.2.2.1 (RO1 Function) set to Bypass Run. This signal is active if the Bypass mode has been selected and the run com-
mand is active - this relay output controls the Bypass contactor it should not be changed.
P2.3.2.2.5 (RO2 Function) set to Run. This signal is active if the Drive mode has been selected and the run command is
active - this relay output controls the output contactor if should not be changed
P (DI2 Function) - (DI6 Function): set to Force Bypass.
If Force Bypass option has been selected for digital input and the input is activated, the Drive goes to Bypass the next time it
is started. If the M1 option is supplied, this input should not be changed.
IntelliPass” Short Circuit Rating
Frame Voltage Available current
4-6 240 Vac, 480Y/277 Vac 65,000 A
7 480 Vac 65,000 A
Intellidisconnect” Short Circuit Rating
Frame Voltage Available current Breaker/Disconnect
4-6 240 Vac, 480Y/277 Vac 65,000 A MMP
7 480 Vac 65,000 A HFDMP
IntelliPass/IntelliDisconnect Technical information
See H-Max Installation manual MN04008005E for additional data
Enclosure: Type 1 or Type 3R as ordered
Max Ambient Temp: 40 C
Wire temperature rating of field installed conductors: Use 75 C copper conductors only
44
IntelliPass/IntelliDisconnect Technical information
H-Max Series Drives IntelliPass®/IntelliDisconnect® IL04008003E April 2013 www.eaton.com
