Parameters
M-Max Series Adjustable Frequency Drive MN04020003E—October 2013 www.eaton.com 87
Drives Control, continued
Notes
: P6.24, P6.26, P6.28
: P6.25, P6.27, P6.29
In systems with mechanical resonances, you can cut out these frequency ranges for stationary operation.
Up to three different frequency ranges can be set.
PNU ID
Access
RUN Value/Range Description
Factory Setting
(P1.3)
P6.24 509 X — Skip frequency 1, lower value 0.00
0.00–P6.25 Hz —
P6.25 510 X — Skip frequency 1, upper value 0.00
P6.24–P6.4 —
P6.26 511 X — Skip frequency 2, lower value 0.00
0.00–P6.27 Hz —
P6.27 512 X — Skip frequency 2, upper value 0.00
P6.26–P6.4 Hz —
P6.28 513 X — Skip frequency 3, lower value 0.00
0.00–P6.29 Hz —
P6.29 514 X — Skip frequency 3, upper value 0.00
P6.28–P6.4 Hz —

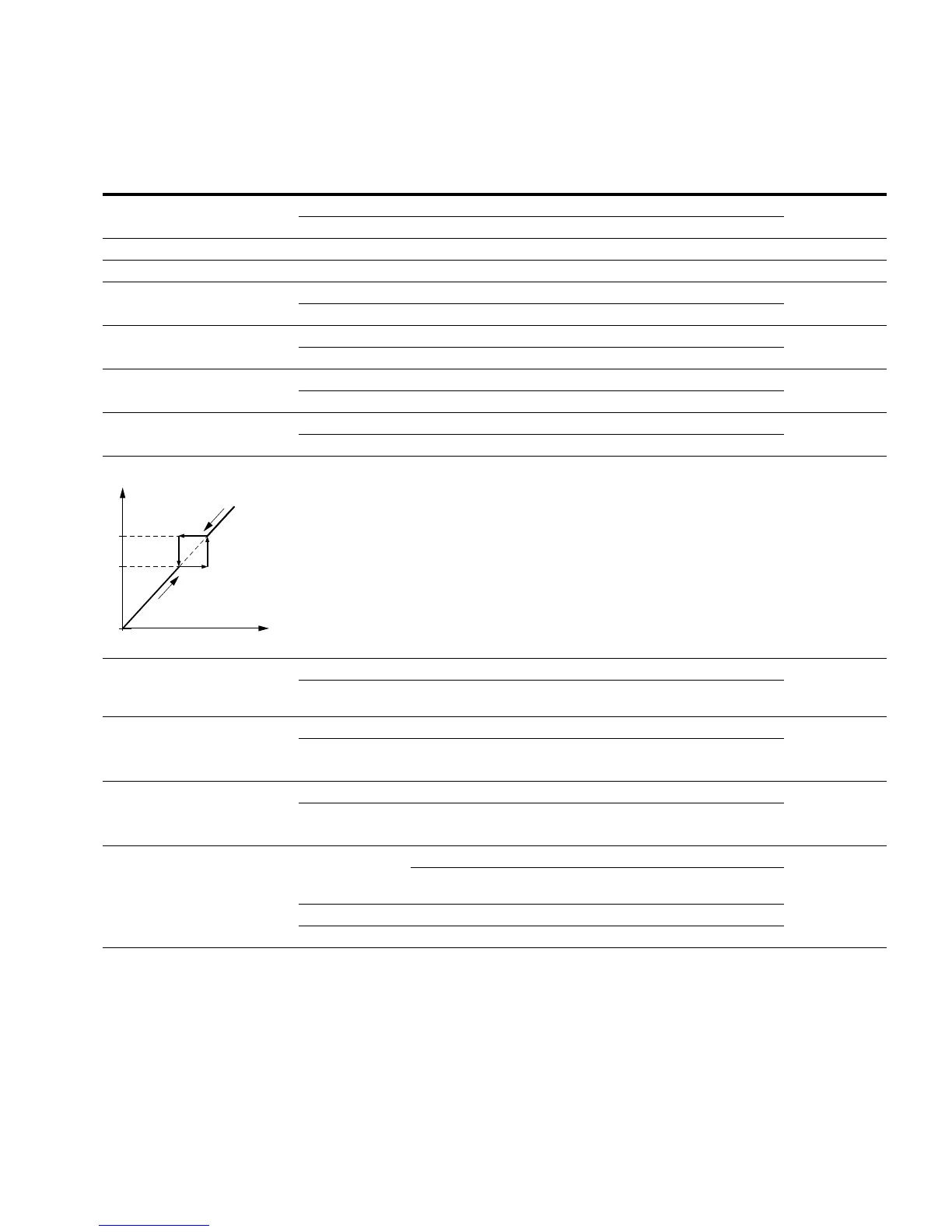

Setting Range for Skip Frequencies
P6.30 759 X — Automatic REAF attempts 3
1–10 Define the permissible number of automatic restarts
(REAF = Restart After Failure)
P6.31 1481 X — Manual mode, primary control source 1
Like P6.1 Assignment of the control levels
Manual mode is activated via parameter P3.37
P6.32 1482 X — Manual mode, primary speed reference 3
Like P6.2 Assignment of setpoint sources
Manual mode is activated via parameter P3.37
P6.33 1483 X — Manual mode, KEYPAD lock 1
The Start/Stop functions are blocked in Manual mode via the
keypad
0 Deactivated
1 Enabled
f
Hz
햲
햳
t
