Appendix A
M-Max Series Adjustable Frequency Drive MN04020003E—October 2013 www.eaton.com 157
PROFIBUS DP Fieldbus Interface Card
Note: The PROFIBUS DP fieldbus interface card
XMX-NET-PD-A or XMX-NET-PS-A are not supplied
with the M-Max frequency inverter.
XMX-NET-PD-A and XMX-NET-PS-A enable the connection
(slave) of frequency inverters of the M-Max series to the
standard PROFIBUS DP fieldbus.
Note: The optional MMX-NET-XA mounting frame is required
for mounting and connecting the MMX frequency
inverter.
Technical data:
●
Communication protocol: PROFIdrive (PROFIBUS profile
for variable speed drives)
●
Data transfer: RS485, half-duplex
Note: Further information on hardware and engineering the
XMX-NET-NET-P_ interface card is provided in the
manual MN04012002Z.

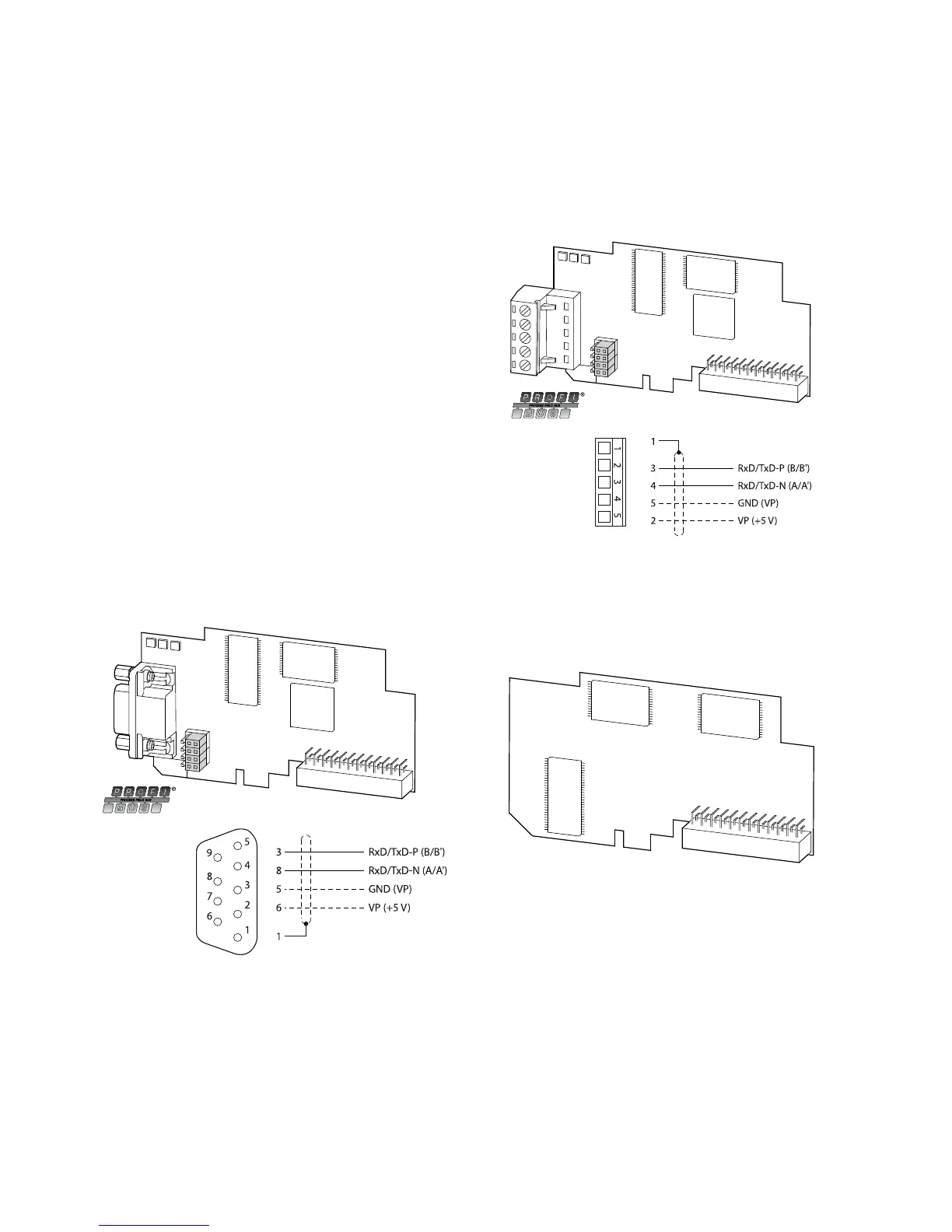

XMX-NET-PD-A
The fieldbus connection is implemented with a nine-pole
Sub-D plug connector.
XMX-NET-PD-A PROFIBUS DP Fieldbus Interface Card
with Nine-Pole Sub-D Plug Connection
Note: Detailed installation instructions are provided in
IL04012008Z.
XMX-NET-PS-A
The fieldbus connection is implemented with a pluggable
five-pole screw terminal.
Fieldbus Connection
Note: Detailed installation instructions are provided in
IL04012008Z.
XMX-NET-DN-A
XMX-NET-DN-A DeviceNet Fieldbus Interface Card
Note: The DeviceNet fieldbus internet card XMX-NET-DN-A
is not supplied with the M-Max frequency inverter.
The XMX-NET-DN-A enables the connection (slave) of
frequency inverters of the M-Max series to the standard
DeviceNet fieldbus.
Note: The optional MMX-NET-XA mounting frame is required
for mounting and connecting the M-Max frequency
inverter.
OPTE5
XMX-NET-PS-A
OPTE3
XMX-NET-PS-A
