Setpoint Input (REF), continued

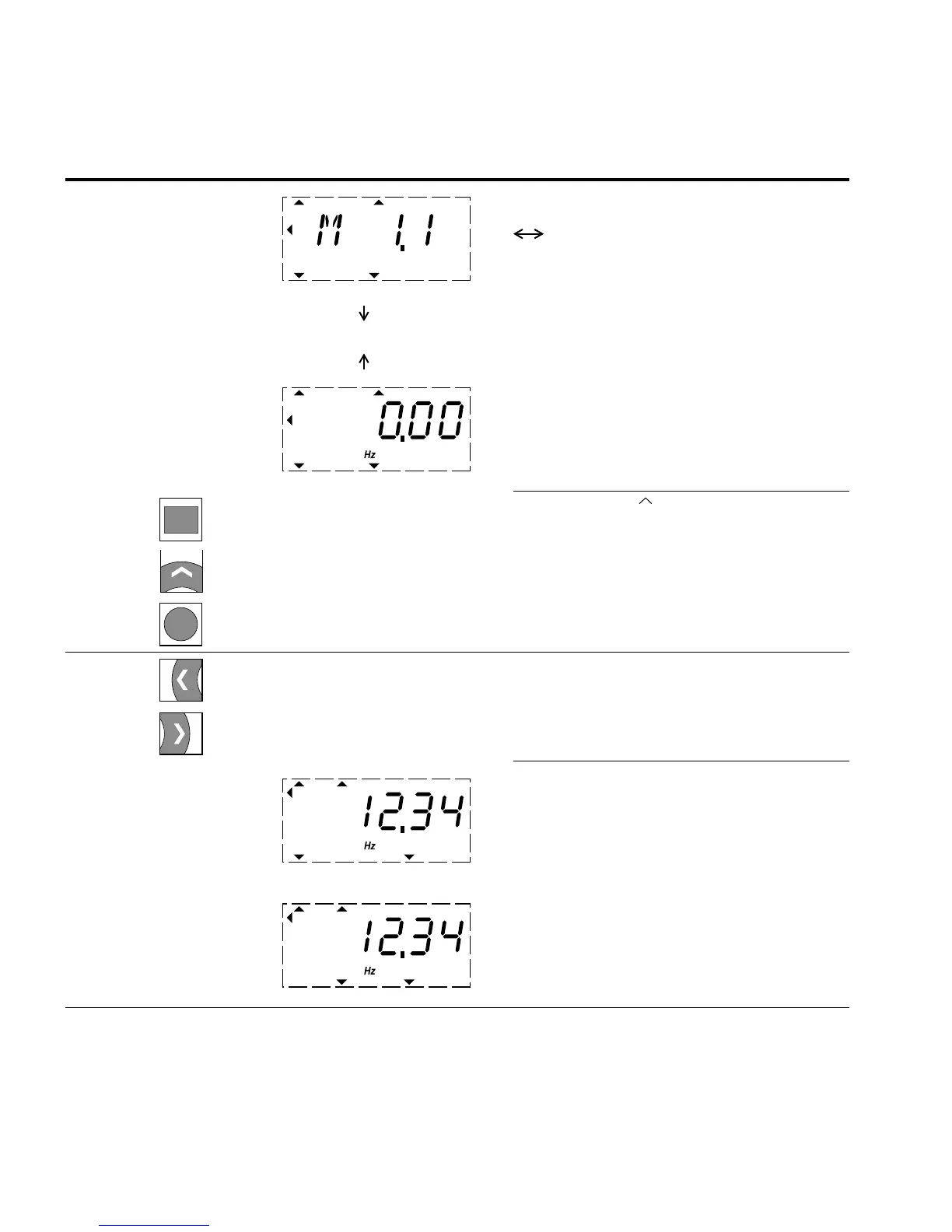

Sequence Commands Display Description
3 If the supply voltage is switched on with the KEYPAD control
level set, the MON menu item is activated first. The set display
value is shown in automatic alternation (factory setting: M.1.1
0.00 Hz)
Actuate the BACK/RESET, and OK buttons in succession. The entry
level is then reactivated (see sequence 2)
4 The two arrow buttons (< or >) are used to change the rotating
direction (FWD, REV)
FWD
REV
The rotating direction change is carried out in the factory setting
(P6.14 = 0) with an automatic stop at 0 Hz. For a direct changeover
(FWD/REV) you must set parameter P6.14 = 1
Note: The frequency of the REV rotating field direction is not
displayed with a negative sign
Note: When the setpoint entry is active (flashing number display), the
arrow buttons are used to change the entry locations (cursor)
RUN STOP ALARM FAUL
T
READY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
Display in Automatic
RUN STOP ALARM FAUL
T
READY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
BACK
RESET
OK
RUN STOP ALARM FAUL
T
READY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
RUN STOP ALARM FAUL
T
READY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
