Eaton MMX34AA3D3F0-0 User Manual

Parameters
M-Max Series Adjustable Frequency Drive MN04020003E—October 2013 www.eaton.com 63
Setting Parameters, continued
All settings are stored automatically by actuating the OK button.
Parameters marked in the “Access Right RUN” column with , can be changed during
operation (RUN mode).

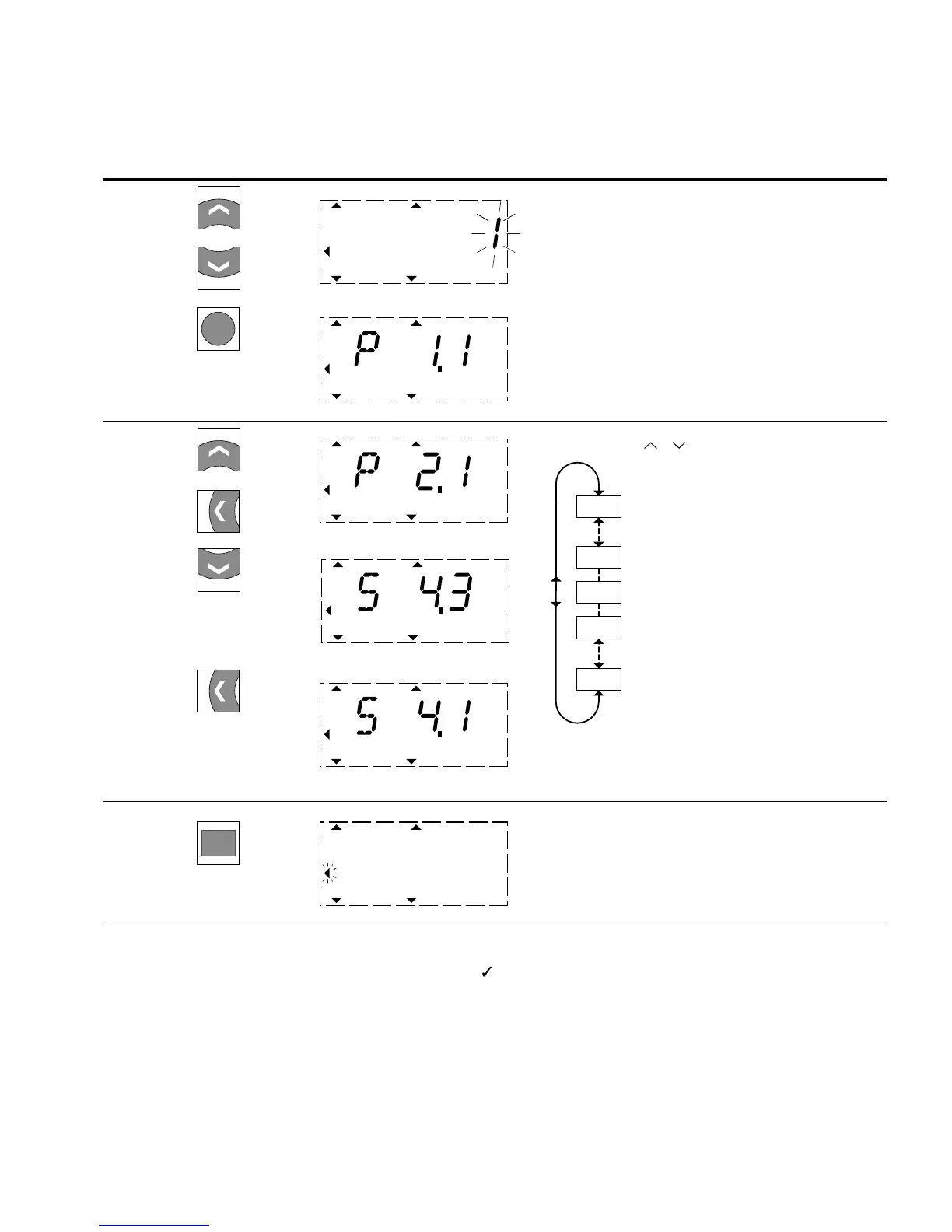

Sequence Commands Display Description
3 If the parameter value is flashing, you can use the two arrow keys to
change the value within the permitted range
P1.1 = You exit the Quickstart Wizard (access to all parameters)
The selected value is confirmed with the OK button
The display now changes automatically between the new value and
the respective parameter number
4 The other parameters in the main menu PAR can be selected with the
two arrow buttons ( or ) (closed circuit, Example: Factory setting)
The arrow buttons (< and >) enable you to select the first parameter of
each parameter group
> P1.1, P2.1, P3.1, P4.1, …
< S4.1, S3.1, S2.1, S1.1, P14.1, …
5 By actuating the BACK/RESET button, you exit main menu PAR (arrow
flashes, see sequence 1)
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
OK
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
P14.16
P2.1
P1.1
S4.3
S1.1
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
BACK
RESET
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
