UPS-MOUNTED BYPASS SWITCH INSTALLATION
EATON Powerware
®
9155 UPS (8–15 kVA) User’s Guide S 164201553 Rev F www.powerware.com
29
ON
OFF
Battery Circuit Breaker

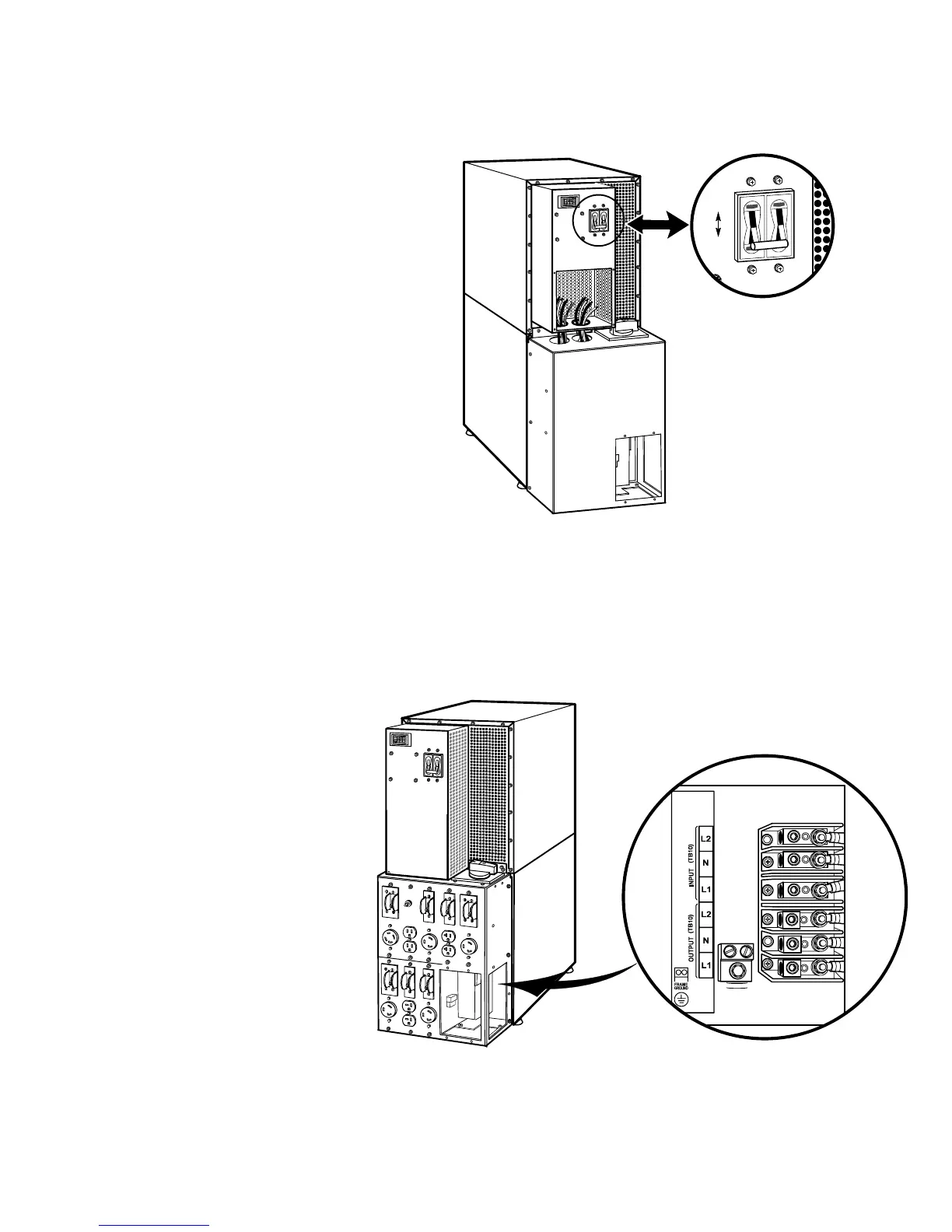

Figure 18. UPS with MBM Rear View
6. Punch two holes in the MBM/PDM conduit landing plate for the input and output
conduit using a Greenlee punch or similar device.
7. Hardwire the input, output, and ground terminations for the MBM/PDM.
See Table 4 for specifications and Figure 19 for a detailed view of the MBM/PDM
terminal block.
TB10
Figure 19. MBM/PDM Hardwiring (PDM Shown)
