EXTENDED BATTERY MODULE INSTALLATION
EATON Powerware
®
9155 UPS (8–15 kVA) User’s Guide S 164201553 Rev F www.powerware.com
48
8. Remove the top front covers of all cabinets.
Press and release the handle latch at the bottom of the cover and then lift the
cover up and off the cabinet.
9. Install the remaining ground straps between each cabinet (see Figure 35).
10. Reinstall the top front covers removed in S tep 8.
Hang the top edge of the cover on the cabinet first, then lower the bottom edge
andsnapintoplace.
11. Continue to one of the following sections:
S “Communication” on page 49 to install UPS communication options, such as
X-Slot cards or remote emergency power-off (REPO).
S “Operation” on page 57 to start up the UPS system.
NOTE After UPS startup, ensure maximum battery runtime by configuring the UPS for the correct number of
EBMs (see page 64).
Front Ground Strap

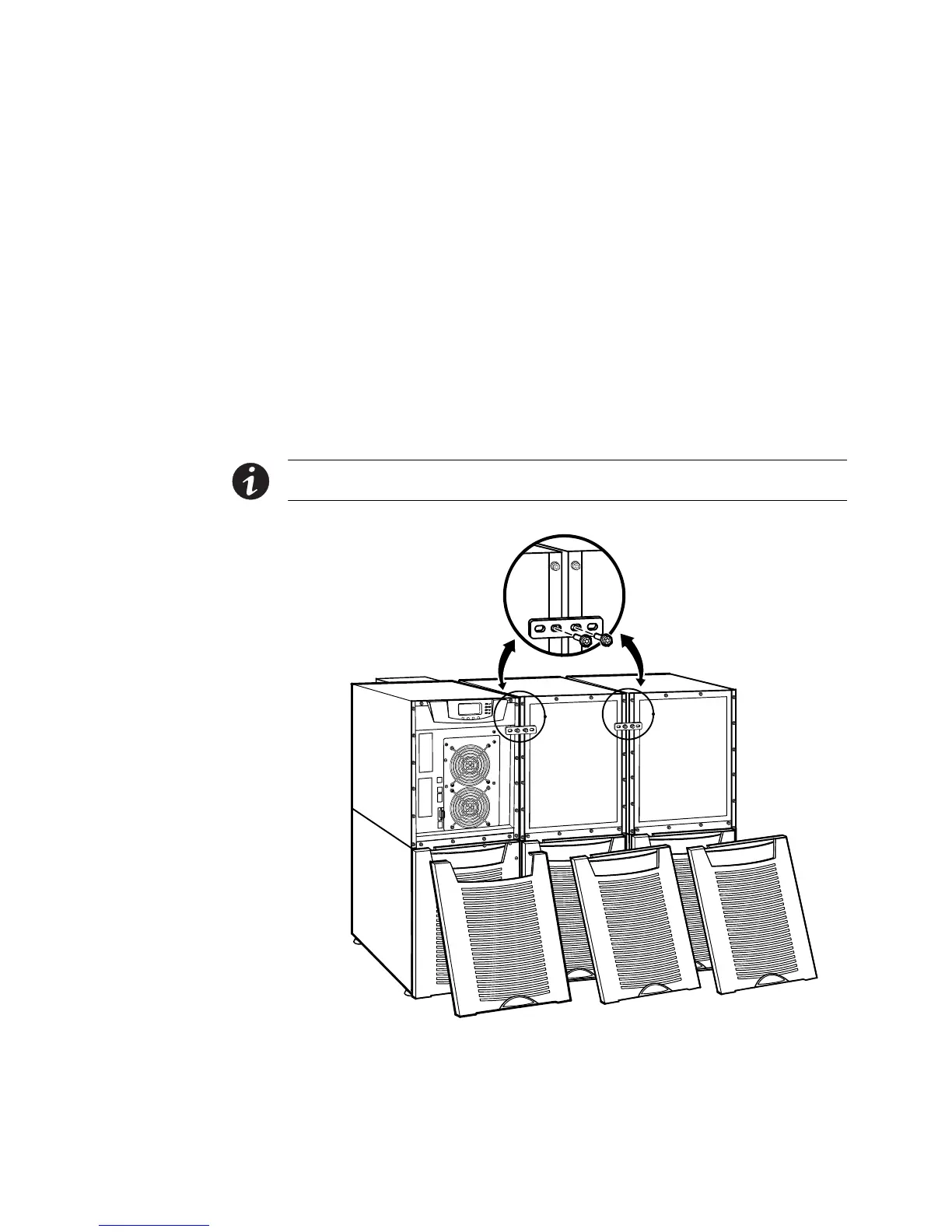

Figure 35. Front Ground Strap Installation (2-High Cabinets Shown)
