18 EATON Vickers Solenoid Operated Directional Valves Product Catalog V-VLDI-MC011-E September 2008
Subplates, Connection
Plates and Mounting
Surfaces
General description
This range of subplates and
auxiliary connection plates
are for use with size 3 valves.
Optional BSPF or SAE/UNF
pipe thread connections are
available.
The subplates fall into five
groups:
• Single station subplates
with either side or rear
entry ports for connecting
to the main system.
• Multi-station manifolds
having from two to six
stations. The two service
ports per station are ar-
ranged along one side but
the pressure and tank lines
are internally connected in
parallel to each station.
• Tapping plates for insertion
under modules or valves to
provide access to service
lines, e.g. for pressure
gage connection.
• Cross-over plates for inter-
connecting two sets of
service lines at the top of
module stacks when direc-
tional valves are not fitted.
• Blanking plate for termi-
nating a valve station e.g.
when the station is not to
be used until later.
The 2 to 6 multi-station sub-
plates, when used together
with Vickers
®
SystemStak
™
valves, provide very compact
control assemblies.
Plates having machined trap-
ezoidal O-ring recesses are
supplied complete with Viton
O-rings.
On all models, the size 03
mounting face includes a
drilled hole (for a location pin)
in conformance with ANSI/
B93.7M) and (NFPA) size
03. All Eaton size 3 valves
and auxiliary plates contain
a matching location pin to
ensure correct orientation of
the mounting faces.
Design number subject to change. No change of installation dimensions for designs 10 thru 19. “R”
(or “B”) sufx – ISO 228 (BSPF) ports and/or metric attaching bolt tappings. “S” sufx – SAE/UNC
ports and/or UNC attaching bolt tappings.

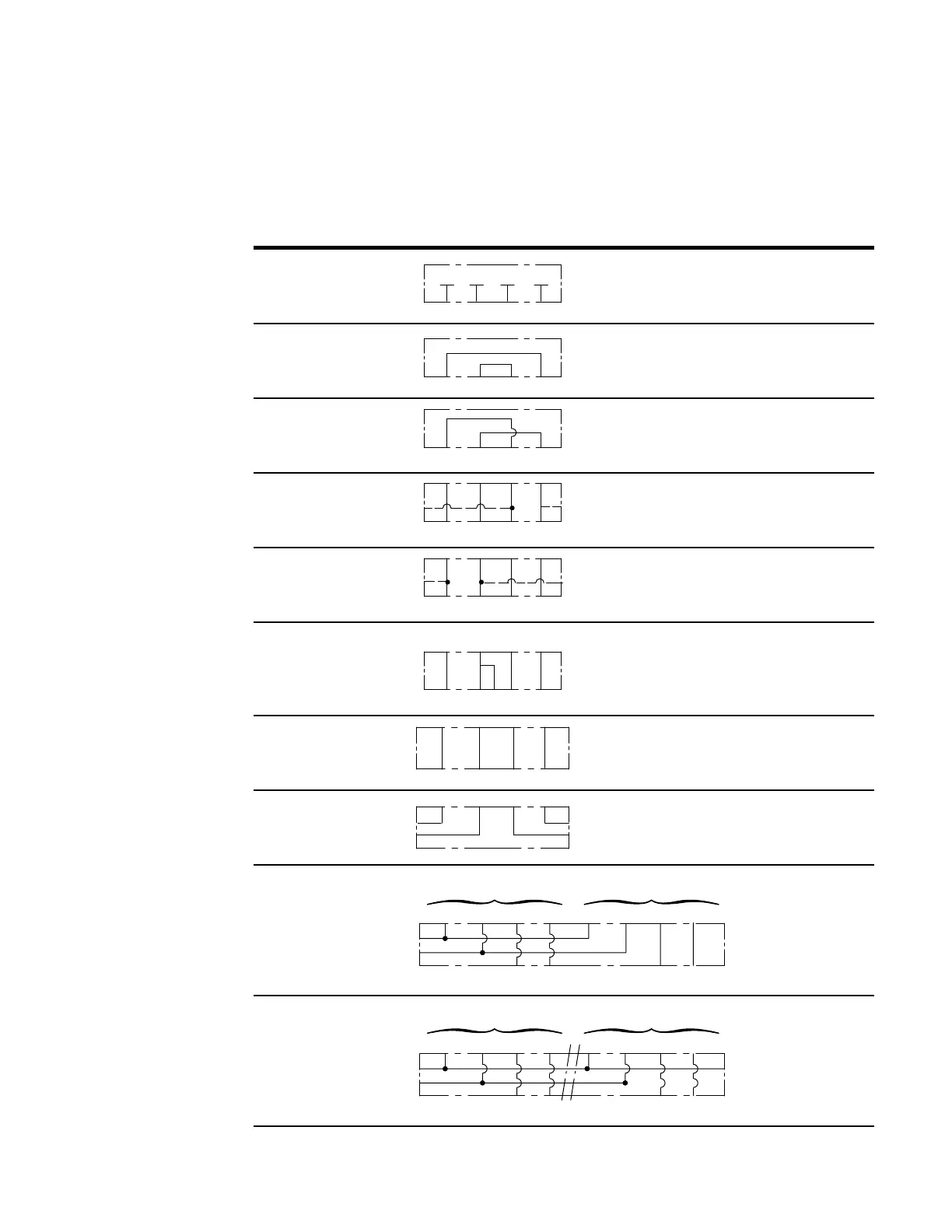

DESCRIPTION AND
MAXIMUM PRESSURE FUNCTIONAL SYMBOL MODEL CODE
Blanking plate DGMA–3–B–1*
250 bar (3600 psi)
Crossover plate DGMA–3–C1–1*
P–A, B–T
250 bar (3600 psi)
Crossover plate DGMA–3–C2–1*
P–B, A–T
250 bar (3600 psi)
Tapping plate DGMA–3–T1–1*–B
Ports A and B DGMA–3–T1–1*–S
250 bar (3600 psi)
Tapping plate DGMA–3–T2–1*–B
Ports P and T DGMA–3–T2–1*–S
250 bar (3600 psi)
Adaptor size 05 to 03 DGAM–3–01–1*–R
207 bar (3000 psi) DGAM–3–01–1*
(UNC valve mtg. bolts)
Single station DGVM–3–1*–R
subplate/manifold DGVM–3–1*–S
Rear ports P,T,A,B
250 bar (3600 psi)
Single station DGMS–3–1E–1*–R
subplate/manifold DGMS–3–1E–1*–S
Side ports P,T,A,B
250 bar (3600 psi)
Multi-station subplate/ DGMS–3–2/3E–1*–R
manifold; side ports DGMS–3–2/3E–1*–S
P,T,A1,B1,A2,B2, etc.
250 bar (3600 psi)
2 station
3 station
Multi-station subplate/ DGMS–3–4/5/6E–1*–R
manifold; side ports DGMS–3–4/5/6E–1*–S
P,T,A1,B1,A2,B2, etc.
250 bar (3600 psi)
4 station
5 station
6 station
P T B A
P T B A
P T B A
P T B A
BT
A
P
P
T
B
1
A
1
P T B A
P
1
T
1
B
1
A
1
B
2
A
2
P
2
T
2
B
2
A
2
P
T
B
1
A
1
P
1
T
1
B
1
A
1
B
6
A
6
P
6
T
6
B
6
A
6
Valve station 1 Valve station 2 – 6
Valve station 1 Valve station 2 – 3
Size 03
Size 05
P T B A
P T B A
P T
A
T
B
B A
