Eaton VICKERS SystemStak User Manual

19EATON Vickers Solenoid Operated Directional Valves Product Catalog V-VLDI-MC011-E September 2008
46,0 (1.8)
73,0
(2.9)
4 holes Ø 5,6 (0.22 dia.)
counterbored to Ø 9,5 (0.374 dia)
Nameplate
P T B A
P T B A
22,0 (0.9)
46,0 (1.8)
75,0
(3.0)
48,5 (1.9)
Nameplate
A
T
B
P
A
T
B
P
24,4 (1.0)
10,0 (0.4)
22,0 (0.9)
11,0 (0.43)
P T B A
P T B A
20,0
(0.78)
46,0 (1.8)
48,4 (1.9)
75,0
(3.0)
Nameplate
2 tapped ports
for DGMA–3–T*–1*–B, G 1/8 (1/8” BSPF)
for DGMA–3–T*–2*–S, 7/16 ”– 20 UNF – 2B (SAE)
(for 1/4” O.D. tubing)
DGMA-2-T1-1*–*
(Ports A and B)
DGMA-2-T2-1*–*
(Ports P and T)
A
T
B
P
A
T
B
P
4 holes Ø 5,6
(0.22 dia.)

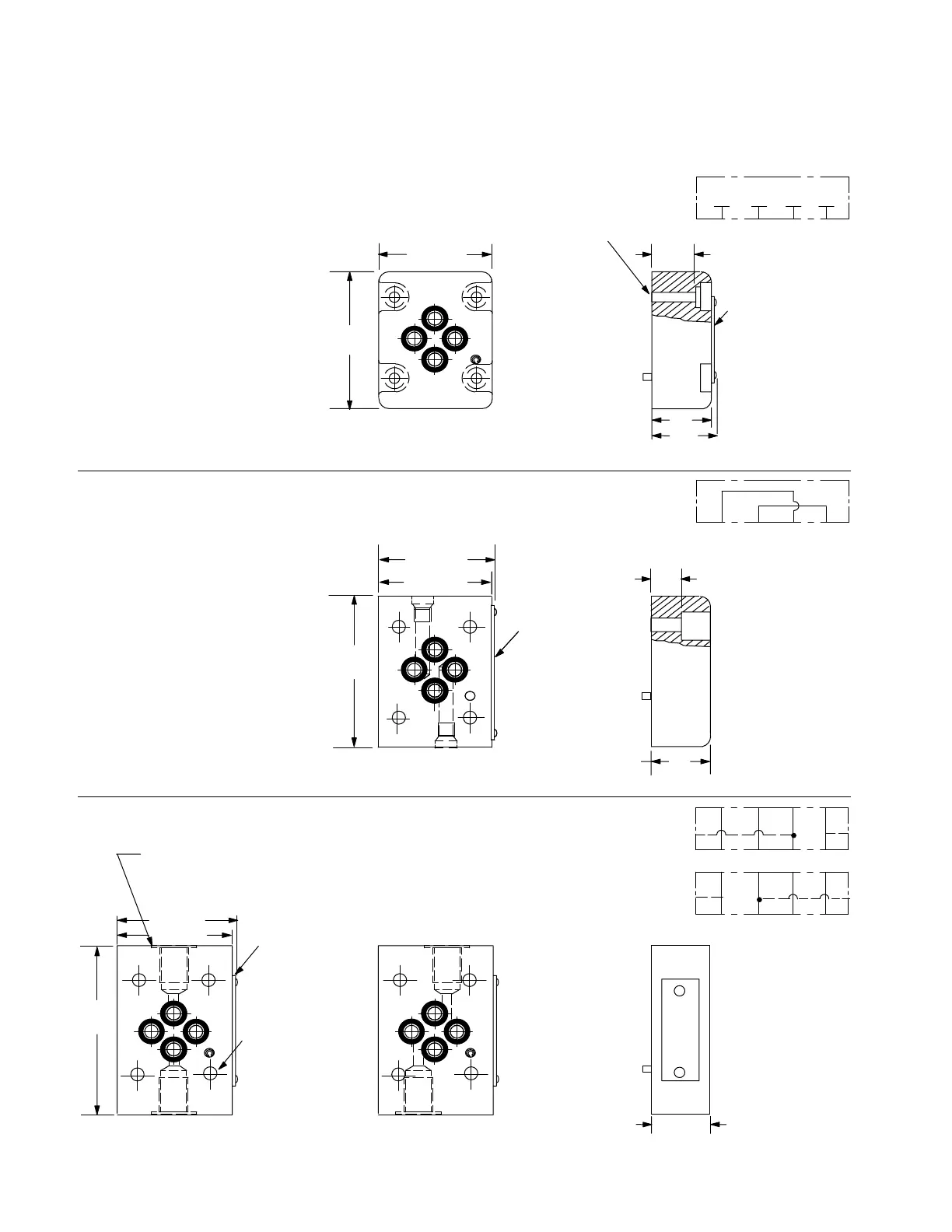

Installation
Dimensions
DGMA-3-B-1* Blanking Plate
DGMA-3-C2-11 Crossover Plate
DGMA-3-T*-1*-* Tapping Plate
Dimensions in mm(in).
