20 EATON Vickers Solenoid Operated Directional Valves Product Catalog V-VLDI-MC011-E September 2008
Installation
Dimensions

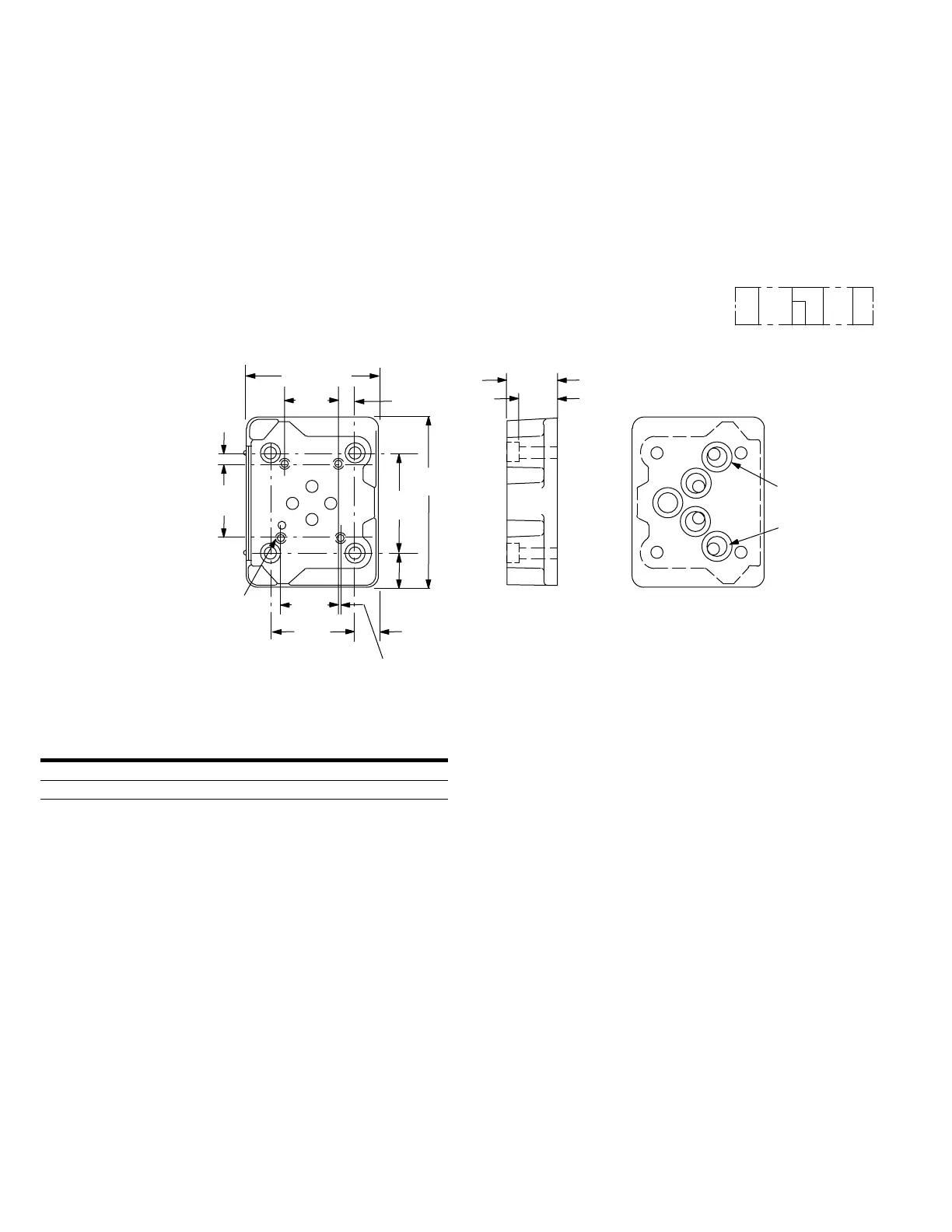

DGAM-3–01–1*–R
(Metric bolt tapping)
DGAM-3–01–1*
(UNC bolt tapping)
Adaptor plate, Size 05 to 03
for pressure up to 210 bar
(3000 psi)
Size 3 valves can frequently be
used in place of size 5 valves,
typically for pilot control func-
tions, or generally where the
system flow rate is within that
of size 3 valves.
The DGAM–3 adaptor bolts
to an existing size 5 interface
and provides a size 3 mounting
face for the smaller valves.
Dimensions in mm(in).
Size 03 Mounting Surface
MODEL TAPPINGS FOR VALVE MOUNTING BOLTS
DGAM–3–01–1*–R M5–6H x 12 (0.47) deep
DGAM–3–01–1* #10–24 UNC–2B x 12,7 (0.5) deep
Size 05 Mounting Surface (seals included)
Adaptor is supplied complete with bolts for mounting
to size 5 interface:
M6 bolts with type DGAM–3–01–1*–R
1/4" –20 UNC bolts with type DGAM–3–01–1*
BT
A
P
70,0 (2.75)
31,0
(1.22)
90,4
(3.56)
54,0
(2.12)
18,3
(0.72)
31,75
(1.25)
46,0
(1.81)
12,0
(0.47)
0,75
(0.03)
40,5
(1.59)
5,3
(0.21)
14,2
(0.56)
28,4 (1.12)
21,0 (0.83)
Standard T
port (T
A
)
Additional T
port (T
B
)
4 holes for valve
mounting
bolts (see table)
P T
A
B A
Size 03
Size 05
P T B A
T
B
DGMS
DGVM
72,0
(2.83)
84,0 (3.3)
72,0 (2.83)
19,75
(0.78)
6,0
(0.24)
84,0
(3.31)
35,0
(1.37)
20,0
(.787)
6,0
(0.24)
16,0 (0.63)
57,25
(2.25)
35,0
(1.38)
12,75 (0.5)
59,25
(2.33)
36,00
(1.42)
12,75 (0.5)
4 holes tapped according
to model type (see table)
4 ports .750-16 UNF-2B
for side ports.
4 ports .750-16 UNF-2B
for rear ports.
5,6 (.22) dia. thru
13,0 (.51) spotface
to depth shown. 4
holes for mounting.
P
A
B
T
A
P
B
B
T
P
A
B
P
A
T
P T B A
To Next Page
