Eaton XVS400 - Interface Overview

5 Installation
5.3 Interfaces
26 MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com
5.3.1 Overview of interfaces
Connector side:
Service side:
Tab. 8 Overview of interfaces

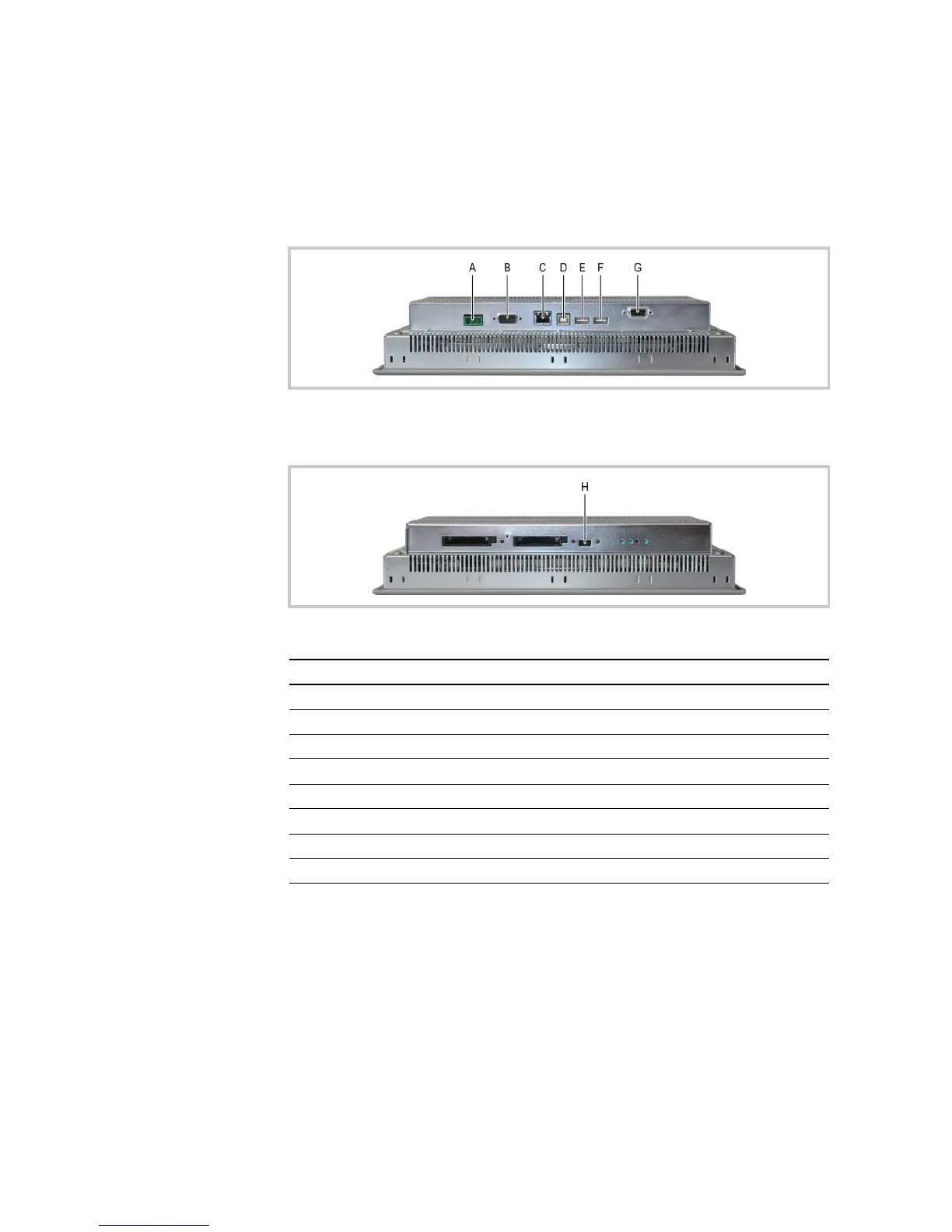

Fig. 7 Connector side of the device
Fig. 8 Service side of the device
Interface Interface description
A Power supply → Chapter 5.3.3,  29
B System Port → Chapter 5.3.4,  30
C Ethernet → Chapter 5.3.5,  32
D USB Device → Chapter 5.3.6,  33
EUSB Host0 → Chapter 5.3.7,  33
FUSB Host1 → Chapter 5.3.7,  33
G Profibus → Chapter 5.3.8,  34
H DIAG Only for service tasks
