9 Technical data
9.1 Dimensions and weights
MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com 57
9.1.3 15" devices
Tab. 22 Dimensions and weights of the 15" devices

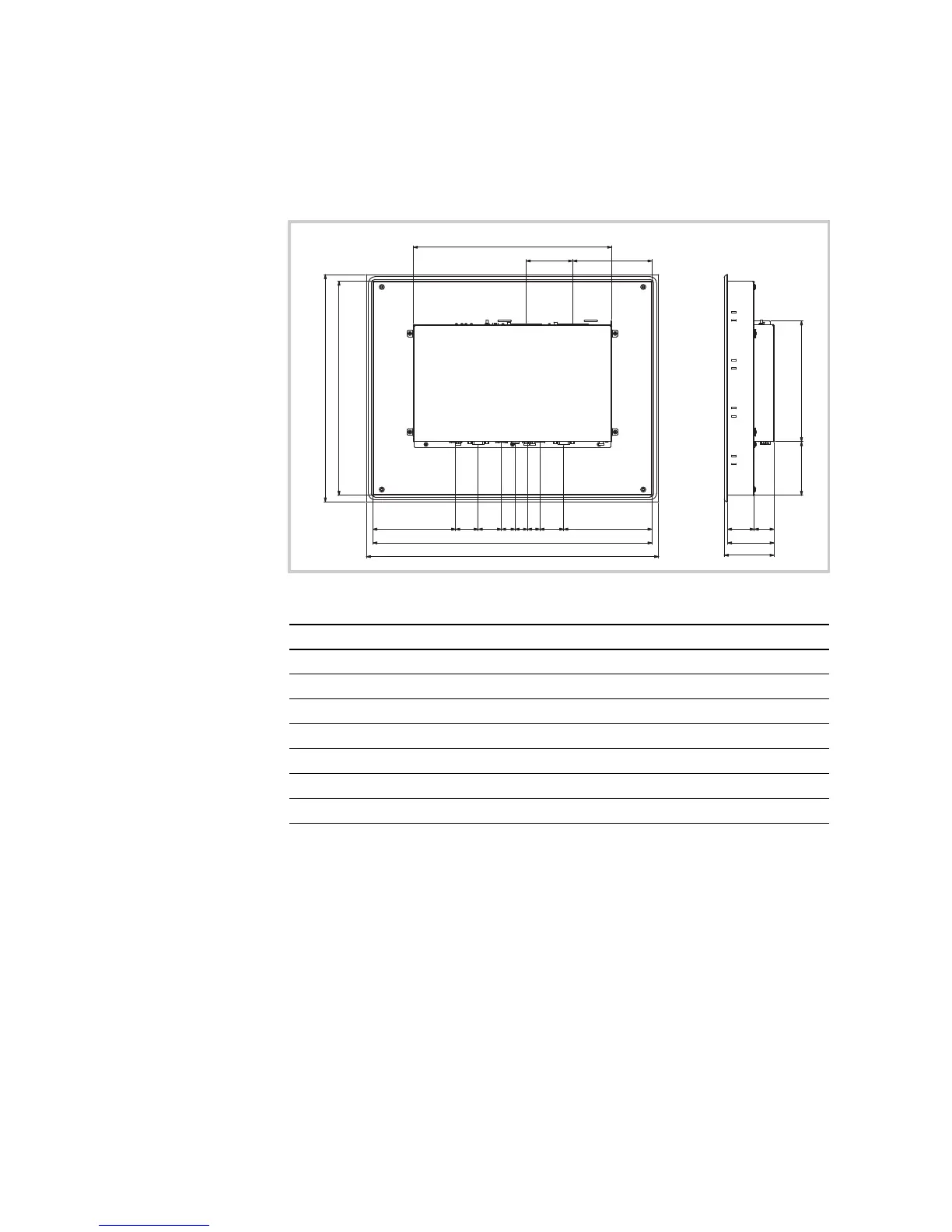

Fig. 32 Mechanical dimensions of the 15" devices in mm
Property XVS400 15"
Height 332 mm
Width 427 mm
Depth 73 mm
Thickness of front plate 5 mm
Mounting depth 68 mm
Mounting cutout 410 mm × 315 mm (±1 mm)
Weight Approx. 5.8 kg
290
68 116
121 33
34
20 1818
35
(129)
408
427
73
78.5
176.5
332
313
68
39
(29)
