5 Installation
5.3 Interfaces
28 MICRO PANEL XVS400 10.4"/12.1"/15" 10/2011 MN04802012Z-EN www.eaton.com

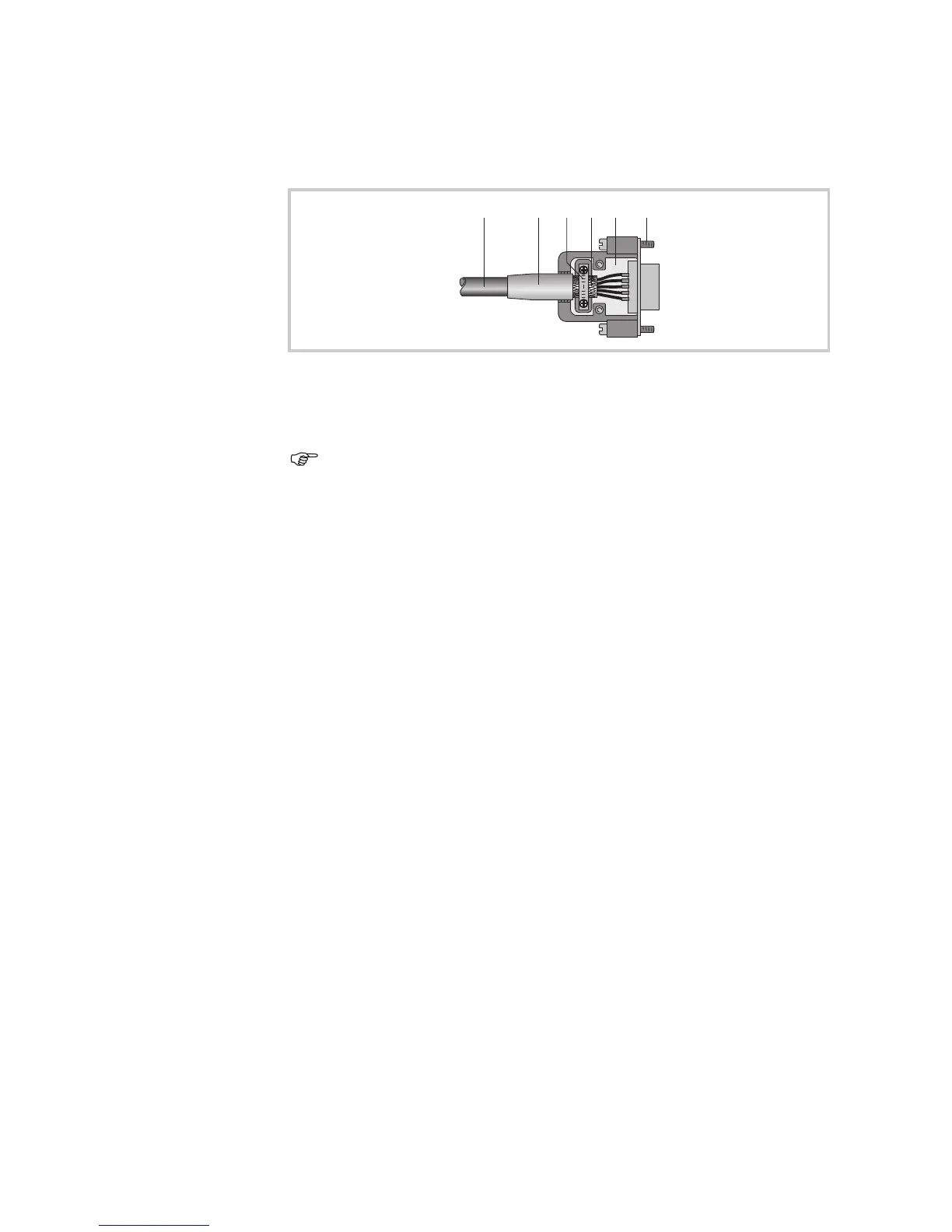

Fig. 10 Cable prepared with D-Sub connector
A Cable with cable sheath
B Heat shrinkable tubing or rubber grommet
C Cable clamp
D Shield braid
E D-Sub connector
F Mounting screw UNC

The EMC values stated in the technical data (immunity and emission) can only be guar-
anteed by observing the prescribed cable preparation!
ABCDEF
