12 16
All electrical work must be performed correctly
by a qualified electrician and all national and
local electrical codes must be observed.
Note: Refer to instruction manual supplied with pump
Refit the coupling guards. Refit the coupling guards.
Note:

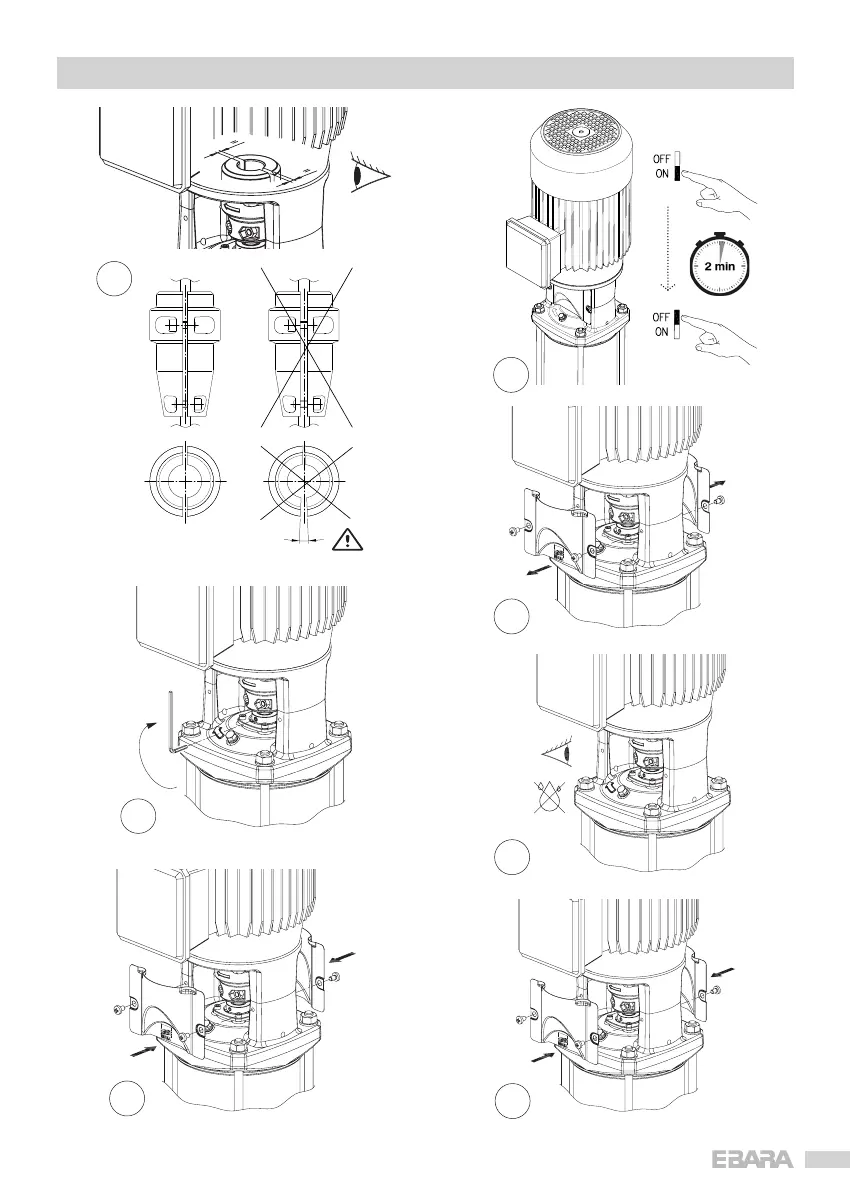

The illustrations above refer to
EVMS( ) pumps 1 to 20 with
motors up to 4.0 kW
(B14A face mount)
For EVMS( ) pumps 1 to 20
and 5.5 kW & above.
- Motors are B5 flange mount
- Spacer couplings are used
B5 flange mount
(Bolts & nuts)
Spacer coupling
For more details on the various models & motor sizes, and on
replacing their mechanical seals, refer to Appendix D in the
Operating & Instruction Manual. It shows:-
EVMS 1/3/5/10/15/20 - 4 kW & below
EVMS 1/3/5/10/15/20 - 5.5 kW & above
EVM 32/45/64 with bearing
EVM 32/45/64 without bearing
E.&O.E. All care has been taken to ensure the accuracy of the information
and is correct to the best of our knowledge and is given without guarantee.
Specifications are subject to change without notice.
EPA-R.1
16/08
Page 2/2
A
B
D
C
0.5 mm ≤ AB ≤ +0.5 mm
0.5 mm ≤ CD ≤ +0.5 mm
