EBARA GS - Pump Structure and Service; External View and Risks

- 22 -
9
Structure

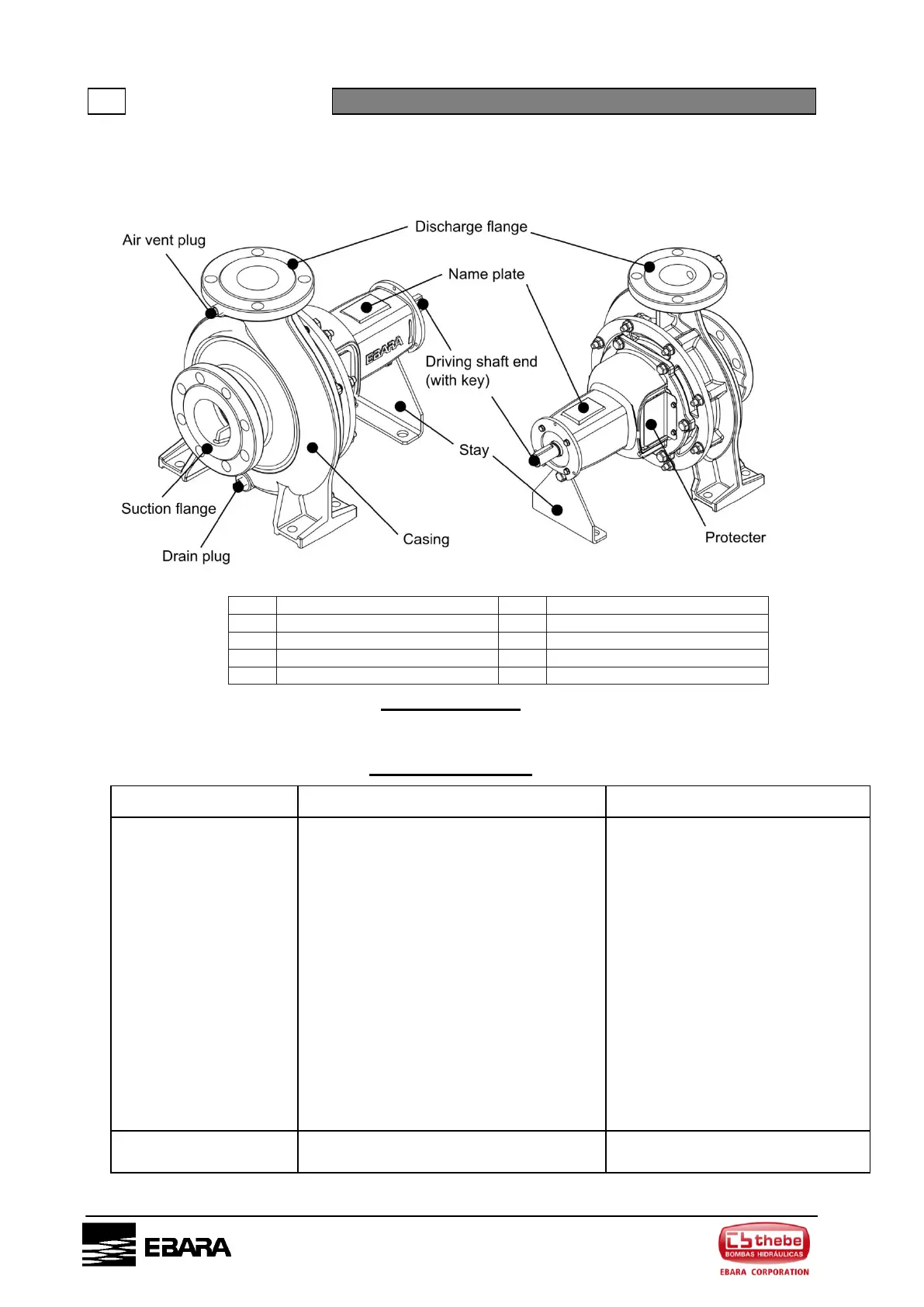

1. External view and residual risks
Fig.6 External view
Table 6 Residual risks
Operation
Risk
Measures to be taken
Maintenance
- Burns
- Damage caused due to it being empty or
due to pressure
- Damage caused by entrapment
- Wait until the temperature goes
down
- Check the temperature before
touching
- Stop the pump and proceed very
carefully
- Stop the pump and proceed very
carefully
- Always fit protection guards
- Keep your distance from rotating
parts
Transport and lifting
- Impacts and falls
- Proceed with care
No.
Name
No.
Name
1
Casing
5
Name plate
2
Driving shaft end (with key)
6
Protector
3
Discharge flange
7
Drain plug
4
Suction flange
8
Air vent plug
①
②
⑤
④
⑥
⑦
⑧
③
