2. Assembly
Tighten torques for hexagon bolts and nuts;
1/4”: 4.5 Nm, 5/16”: 11 Nm, 3/8”: 22 Nm, 1/2”: 38 Nm, 5/8”: 93 Nm, 13/16”: 181 Nm, 15/16”: 313 Nm.
Model GS

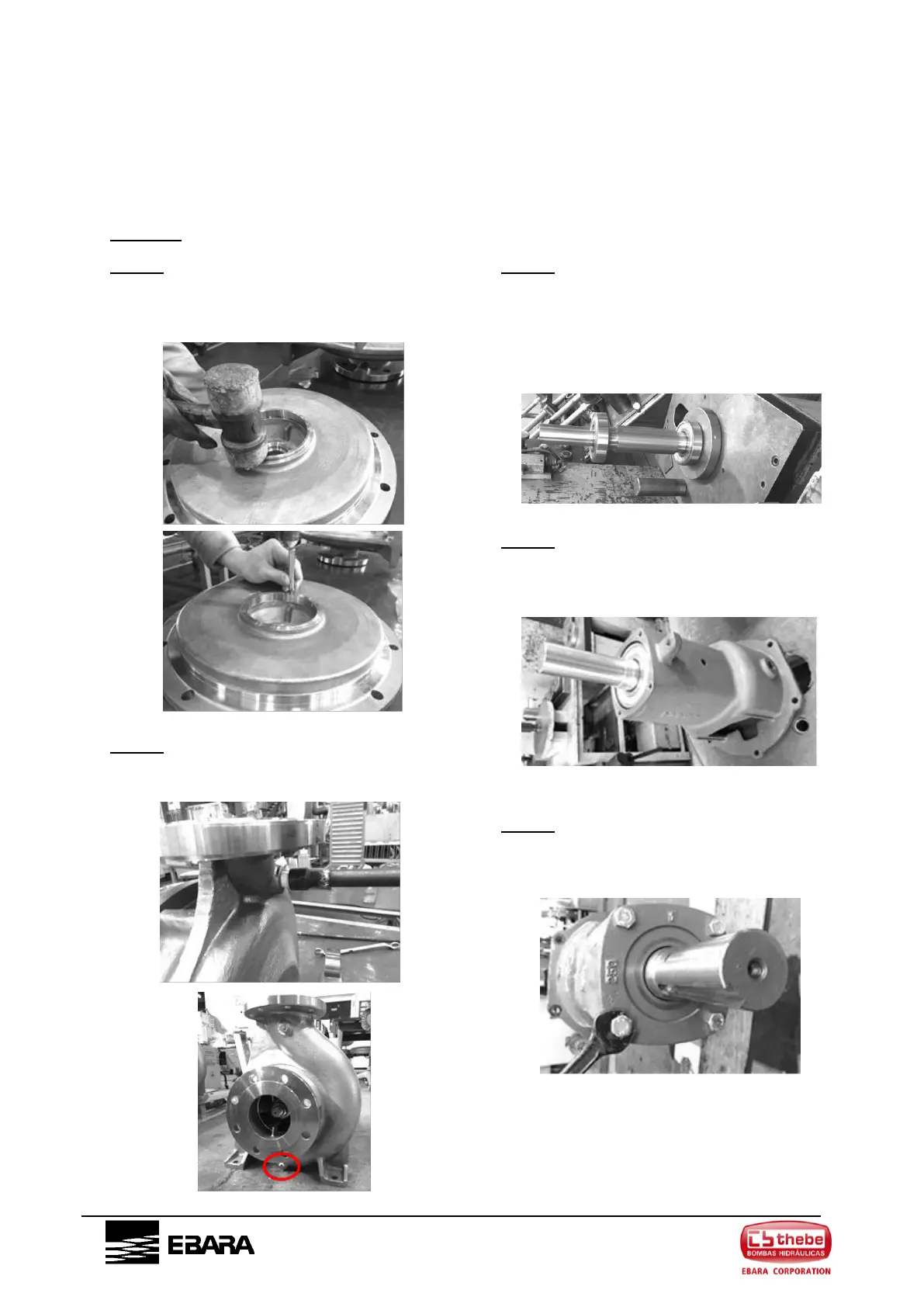

STEP.1
Assemble the Casing Ring (33) and Spring Pin
(34) to the Casing Cover (27) and Casing (35).
STEP.2
Assemble the Plugs (39/40) to Casing (35).
STEP.3
Assemble 2 Bearings (7) to the Shaft (2).
*First, install 1 bearing into the shaft from one
side. Then, insert another bearing into the shaft
from the other side.
STEP.4
Insert the Shaft (2) into the Bearing Casing (11).
Position is referred in this photo.
STEP.5
Assemble the Bearing Cover (6) to the Bearing
Casing (11).
