EBARA GS - Exploded Component View

- 23 -
2. Exploded view
Model GS
This figure shows a Model GS (GS200-500) for example. Depending on the model, your pump may vary
slightly.

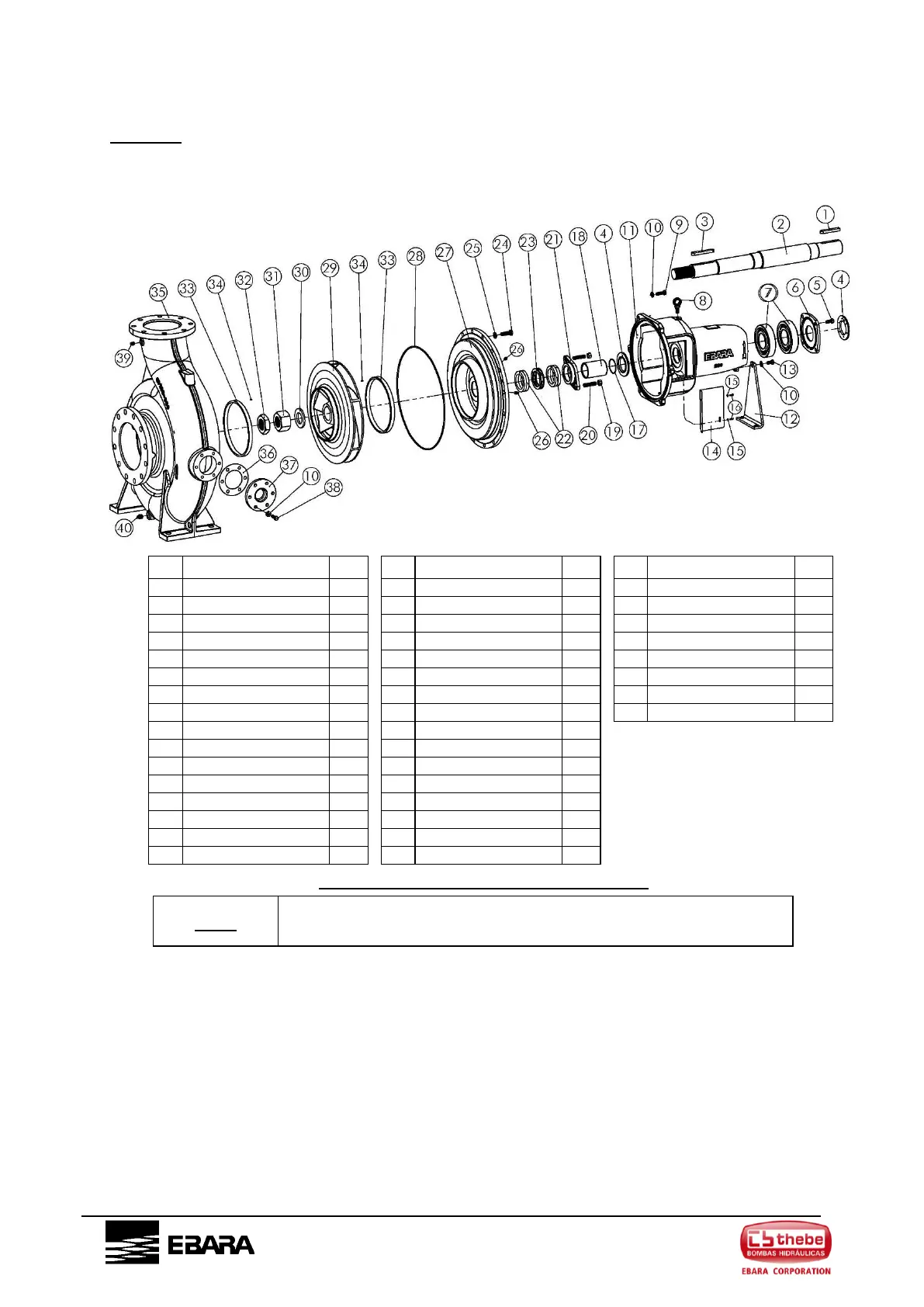

Fig.7 Exploded view [Example of GS200-500]
Note
Cross-section drawings indicating the materials of the components can
be obtained from EBAS sales offices or dealers.
No. Description Qty. No. Description Qty. No. Description Qty.
1 Key form AB 1 17 Gasket 1 33 Casing Ring 2
2 Shaft 1 18 Shaft Sleev e 1 34 Spring Pin 2
3 Key form AA 1 19 Nut 2 35 Casing 1
4 Deflector 2 20 Gland Bolt 2 36 Handhole Gasket 1
5 Bolt 4 21 Gland 1 37 Handhole Cov er 1
6 Bearing Cov er 1 22 Gland Packing 4 38 Bolt 6
7 Bearing 2 23 Lantern Ring 1 39 Plug 3/8" BSP 1
8 Eyebolt 1 24 Bolt 16 40 Plug 1/2" BSP 1
9 Bolt 6 25 Washer 16
10 Washer 13 26 Plug 2
11 Bearing Casing 1 27 Casing Cov er 1
12 Stay 1 28 O-Ring 1
13 Bolt 1 29 Impeller 1
14 Protector 2 30 Washer 1
15 Washer 4 31 Hex Nut 1
16 Bolt 4 32 Hex Jam Nut 1
