Model GSD
This figure shows a Model GSD (GSD40-250[2P-50HP]) for example. Depending on the model, your
pump may vary slightly.

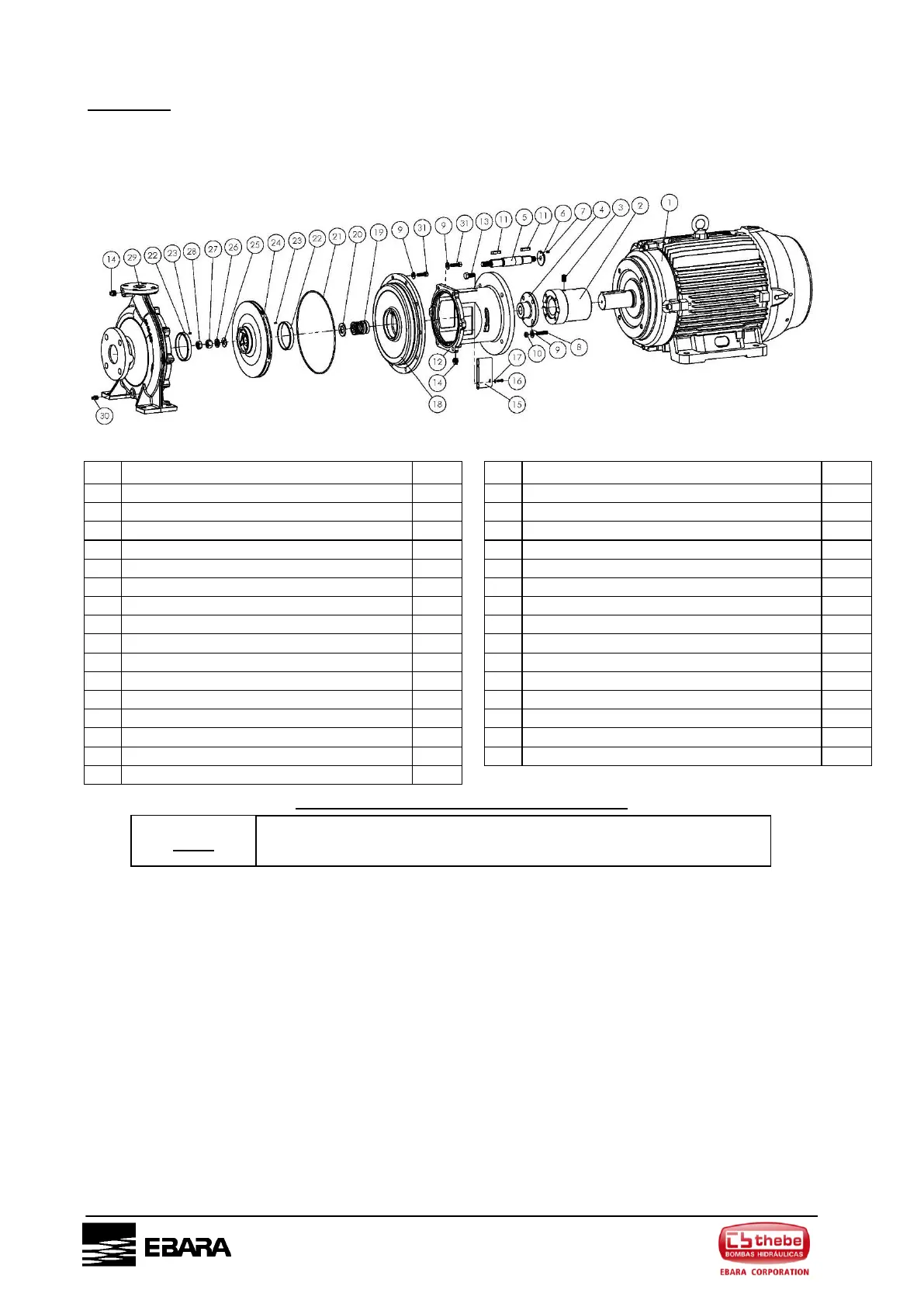

Fig.8 Exploded view [Example of GSD40-250]
3. Accessories
Standard accessories (with motor)
Common base (GS/GSD)………………………………………1
Coupling (GS) ············································ 1 set
Coupling guard (GS) ··································· 1 set
Note
Cross-section drawings indicating the materials of the components can
be obtained from EBAS sales offices or dealers.
No. Des crição (Description) QTY No. Descrição (Des cription) QTY
1 Motor eixo standard (S tandard shaft motor) 1 17 Arruela lis a (Washer) 4
2 B ucha do Motor (Motor bushing) 1 18 Tampa de P res são S elo (Casing Cover) 1
3 P arafuso Allen (S et screw) 2 19 S elo Mecânico (Mechanical S eal) 1
4 B ucha da B omba (P ump bushing) 1 20 Anel Dis tanciador do R otor (S pacer R ing) 1
5 E ixo (S haft) 1 21 Anel O'R ing (O'R ing) 1
6 P orca sextavada (Hex nut) 1 22 Anel de des gaste (Cas ing ring) 2
7 P arafuso Allen (S et screw) 1 23 P ino E lástico (S pring P in) 2
8 P ris ioneiro (S tud bolt) 4 24 R otor (Impeller) 1
9 Arruela L is a (Was her) 18 25 Arruela Lisa (P lane Was her) 1
10 P orca sextavada (Hex nut) 4 26 Arruela E lás tica (S pring Was her) 1
11 Chaveta (Key) 2 27 P orca Hexagonal (Hex Nut Normal Type) 1
12 Intermediário (B racket) 1 28 P orca Hexagonal(Fino) (Hex Jam Nut Thin) 1
13 P arafuso sextavado (bolt) 4 29 Carcaça (Casing) 1
14 B ujão 3/8" B S P (P lug) 2 30 B ujão 1/4" BS P (P lug) 1
15 P rotetor (P rotector) 2 31 P arafuso S extavado (B olt) 16
16 P arafuso S extavado (B olt) 4
