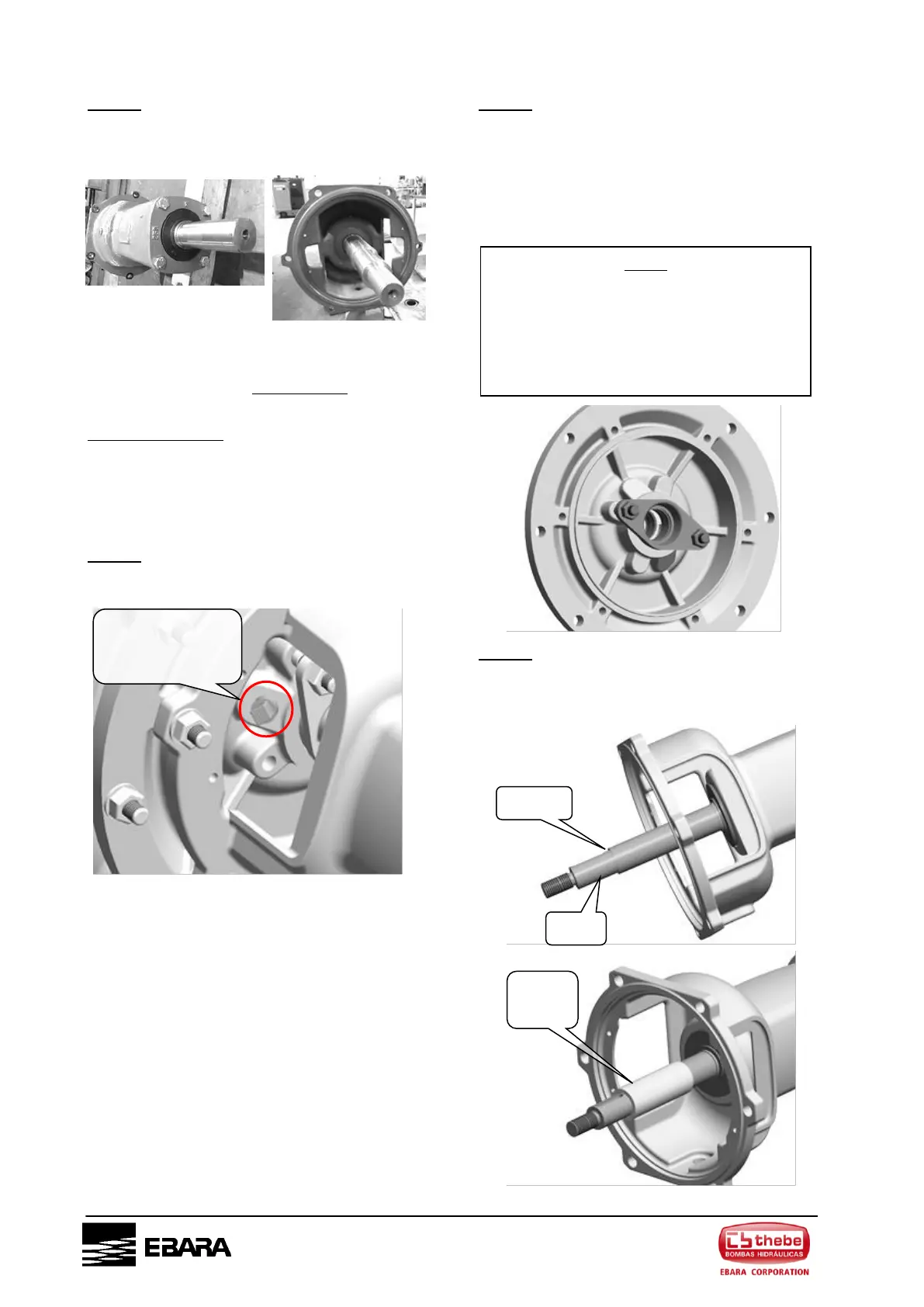

STEP.6
Assemble Deflectors (4) to Bearing Cover (6)
and Bearing Casing (11).
*Refer to the following STEP.7 to 11 for Gland
Packing specification and refer to the following
STEP.12 to 14 for Mechanical Seal
specifications.
[Gland Packing specification]
STEP.7
Assemble 2 Plugs (26) to Casing Cover (27).
STEP.8
Insert the Gland Packings (22) and the Lantern
Ring (23) into the Casing Cover (27). Then
assemble the Gland (21), the Gland Bolts (20)
and the Nuts (19) by hand to fix the
above-mentioned parts.
STEP.9
Insert the Gasket (17) and Shaft Sleeve (18) into
Shaft (2).
NOTE
The cutting line for the gland packing
nearest to bearing shall be facing under
direction. The other gland packings shall be
located the direction of cutting line every 90
degrees.
The notches in the lantern ring shall be
horizontal.
Plugs shall be used
on this side and the
reverse side
To Next Page
