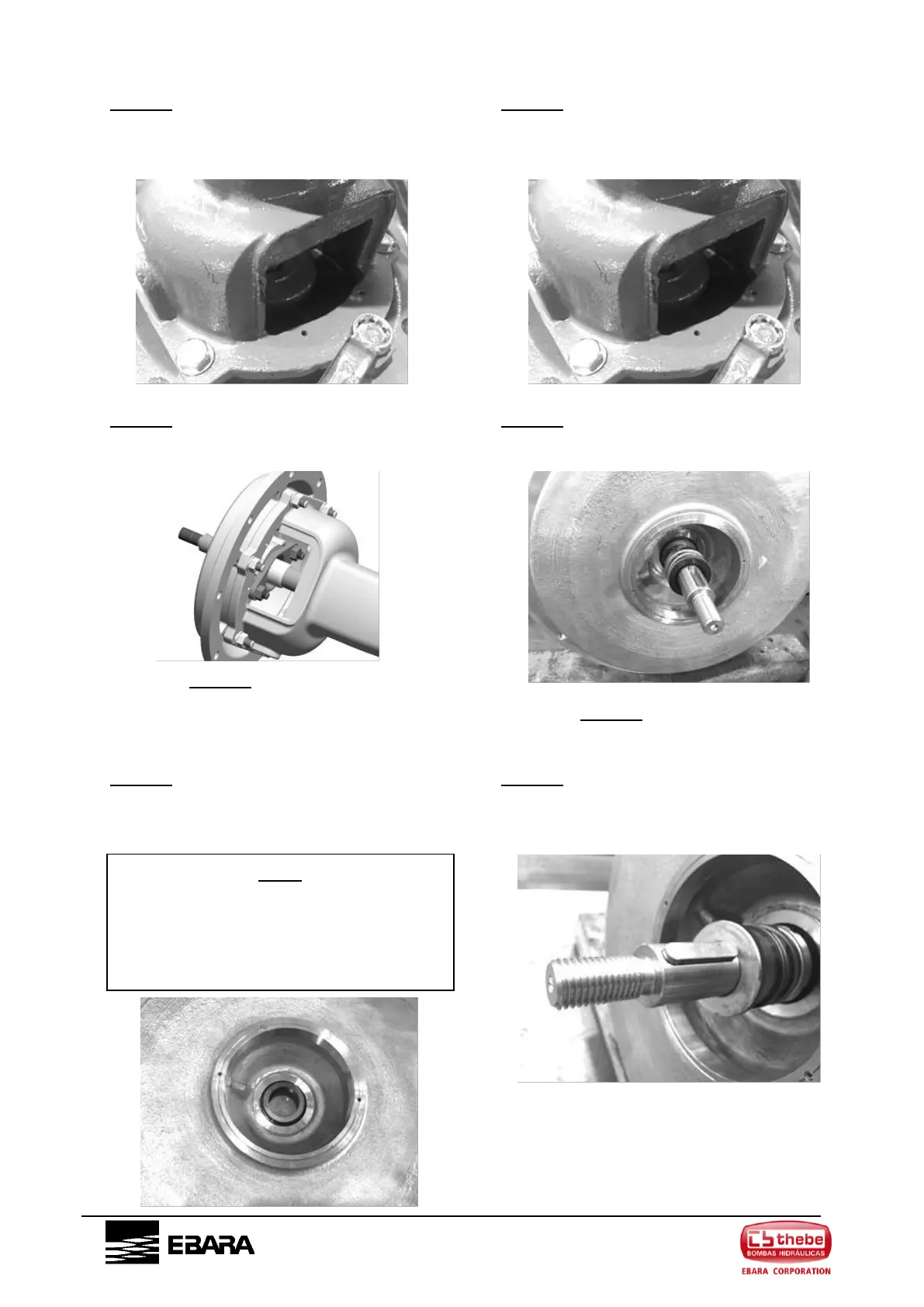

STEP.10
Assemble the Casing Cover (27) to the Bearing
Casing (11).
STEP.11
Tighten the Nuts (19).
Proceed to STEP.15 next.
[Mechanical Seal specification]
STEP.12
Assemble the Mechanical Seal to Casing Cover
(27).
STEP.13
Assemble the Casing Cover (27) to the Bearing
Casing (11).
STEP.14
Assemble the Mechanical Seal to the Shaft (2).
Proceed to STEP.15 next.
STEP.15
Assemble the Key (3) of impeller side to the
Shaft (2).
NOTE
Before insert the mechanical seal, wipe the
sliding surface with acetone.
Be careful not to get debris, dust or fingerprints
on the mechanical seal’s sliding surface.
