11ENGLISH

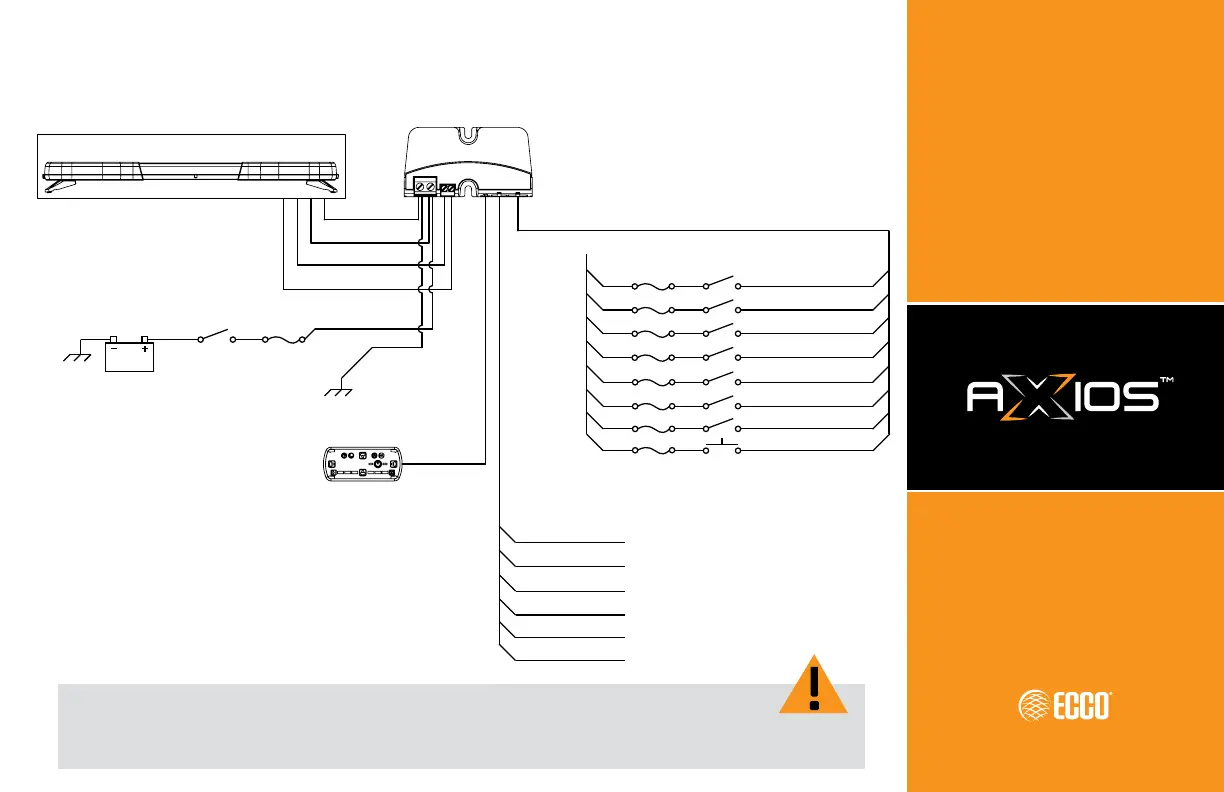

WIRING
INSTRUCTIONS
AXIOS LIGHTBAR
Junction Box
Black
Red
Blue
Yellow
BLK
RED
20A
Ignition
Switch
Axios Keypad
Pattern 1 (Black)
Pattern 2 (Yellow)
Alley Left (Red)
Alley Right (Green)
Rear Worklamps (Blue)
Pattern Sel (Violet)
Batt +
2A Mom
Cruise (Orange)
Front Worklamps (Brown)
Optional Wire Control Harness*
(Brown) Aux Out (connect to a relay coil)
(Yellow) Right
(Green) Tail
(Black) Left
(Blue) Stop
(White) Sync
STI/Aux/Sync Harness
NOTE
*If using the keypad controller to operate the lightbar, disconnect the optional wire control harness
from the junction box.
