Specifications
Length .................................39”/1m, 48”/1.2m, 54”/1.37m,
.............................................60”/1.5m, 72”/1.8m
Height .................................3”/76mm (5”/127mm w/ mounting feet)
Width ..................................10.5”/267mm
Voltage................................12-24 VDC
Operating Temperature .....-30ºC to +50ºC (-22ºF to +122ºF)
Current Draw
............................LED Directional = 0.5A Avg. @ 12 VDC
..........................................................LED Beacon = 0.5A Avg. @ 12 VDC
..........................................................LED STI = 0.3A Avg. @ 12 VDC
..........................................................LED Alley Light (pair) = 0.9A Avg. @ 12 VDC
..........................................................LED Worklamp (pair) = 0.9A Avg. @ 12 VDC
..........................................................LED Safety Director = 2.5A Avg. @ 12 VDC
..........................................................Center Illumination = 0.7 Avg. @12 VDC
..........................................................Max Standby = 0.45A @ 24 VDC / 0.35A @ 12 VDC
Flash Patterns .....................29 (see chart on page 15)
Certifications
• SAE J845 Class I: Beacons & Directionals
• J595 Class 1: Safety Director
• ECE Regulation 65: Beacons & Directionals
• California Title 13: Directionals
• ECE Regulation R6 & R7: Stop-Tail-Indicators
• ECE Regulation 10
Note: Compliance with SAE Class I, California Title 13 and ECE
Regulation 65 is dependent on both the specic conguration of
warning modules within the lightbar (see pages 21 & 23) and the
selected ash pattern (see page 15).
Unpacking & Pre-Installation
All Axios lightbars include an aluminum chassis with solid-state
electronics, a three or ve-piece polycarbonate lens assembly
(depending on chassis length), a keypad controller and an
electrical junction box. The specic type and conguration
of the lighting modules of the lightbar is dependent on the
options selected at the time of purchase.
Carefully remove the lightbar and place it on a at surface.
Examine the unit for transit damage and locate all parts. If
damage is found or parts are missing, contact your Axios
distributor or ECCO. Do not use damaged or broken parts.
Ensure the lightbar voltage is compatible with the planned
installation.

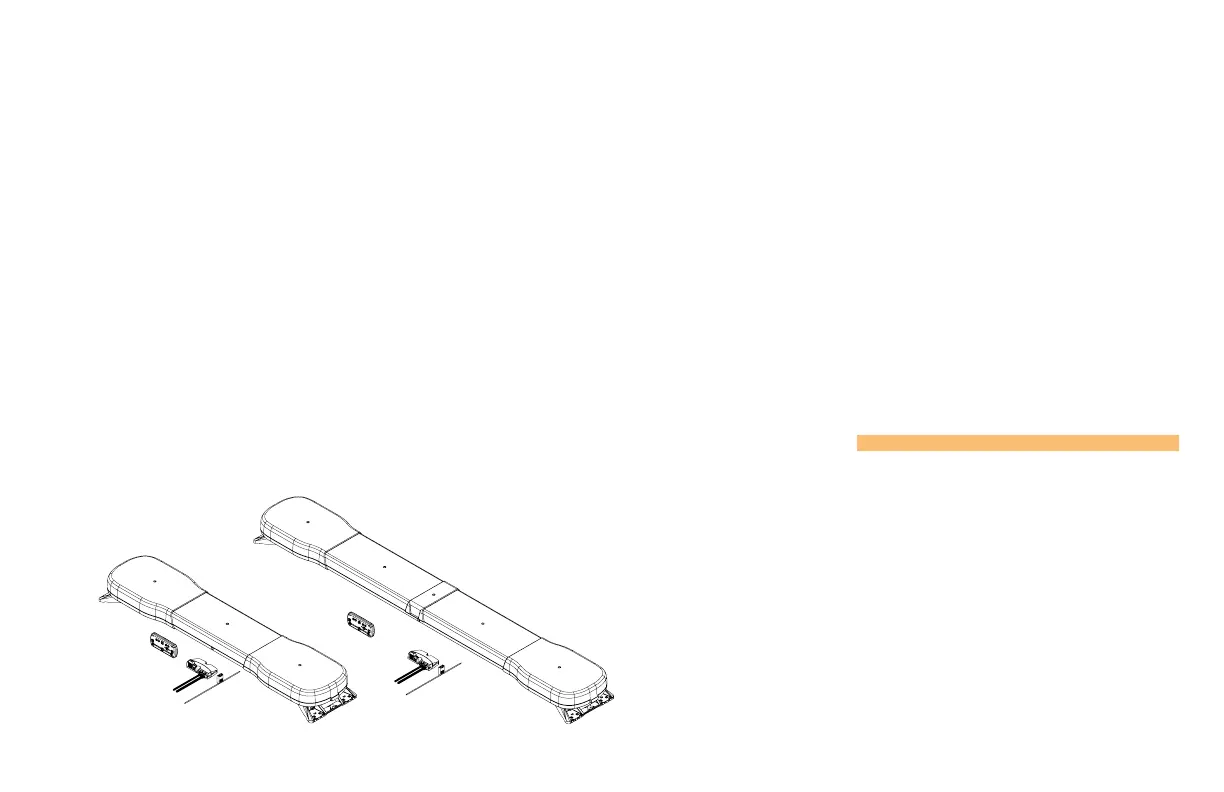

Examples
COMPONENTS & SPECIFICATION
72” lightbar & components
48” lightbar & components
