Stop-Tail-Indicator Modules
EZ1404
The EZ1404 Stop-Tail-Indicator (STI) LED module enhances the vehicle’s standard position, brake, and turn indicator lighting.
Installed on the rear DropLock™ power rail only, these modules provide high-intensity red light to warn other drivers of
position and slowing. The turn signal indicator blinks amber.
Remove the lenses to access the DropLock
TM
power rail system.

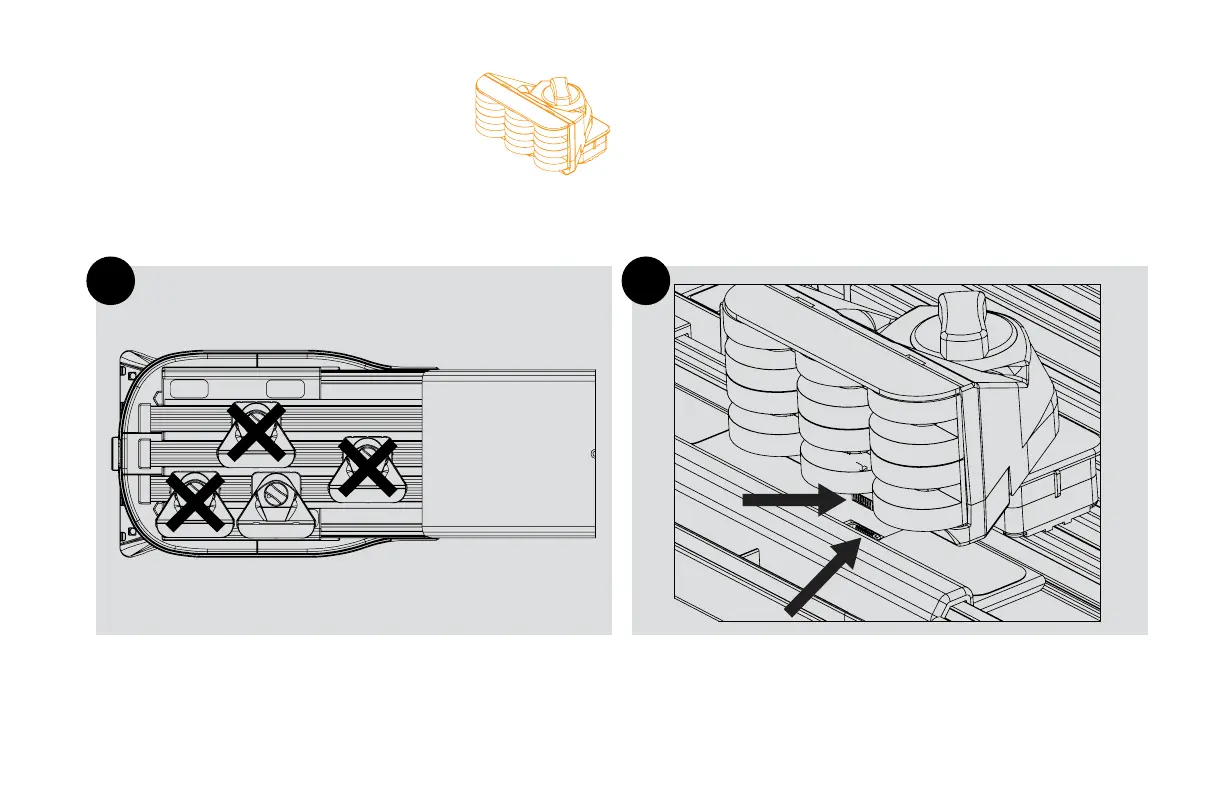

Install the STI in the rear power rail only (refer to step 2).
The STI module can only be placed in one position on each
end of the chassis. The connector on the bottom of the
module must plug into the STI data port on the chassis as
shown above.
1 2
FRONT
