27ENGLISH

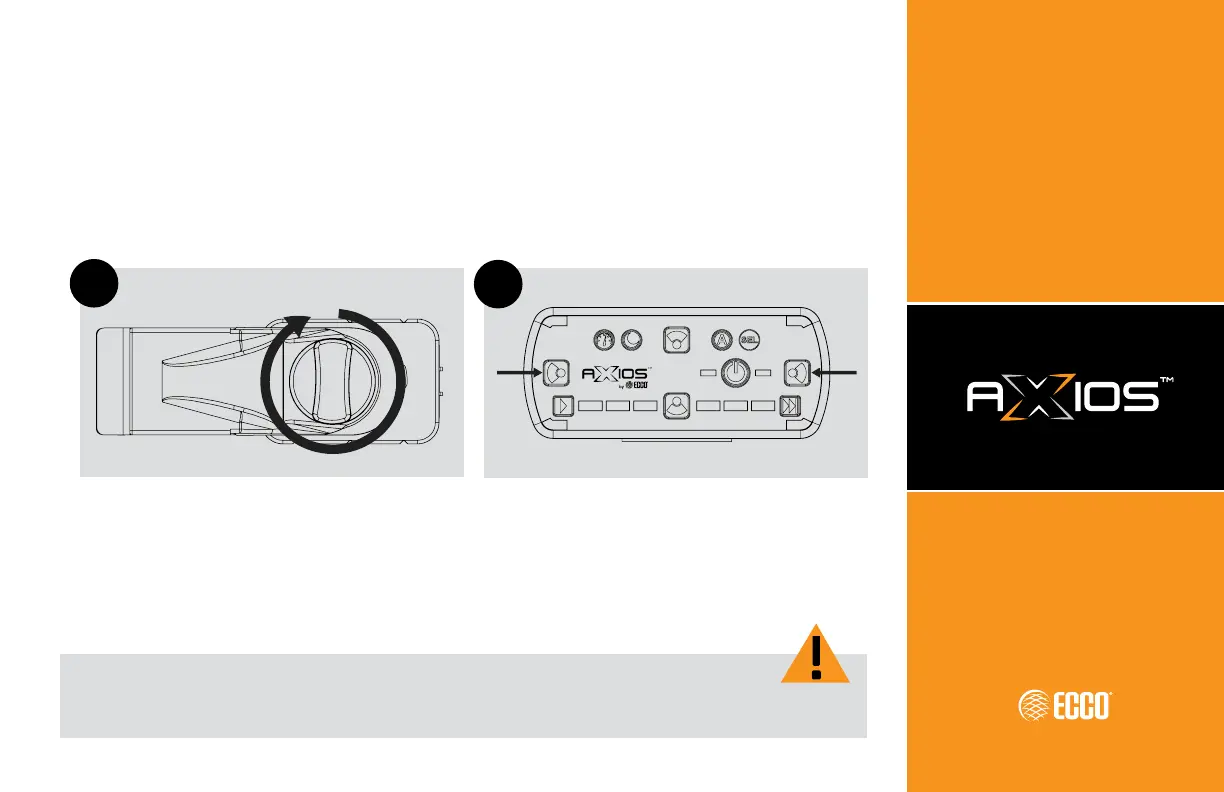

Apply power to the lightbar and use the
alley left and right buttons on the keypad to
operate.
To secure the module in the power rail, turn
the locking knob clockwise a half turn. Install
any additional modules, and replace the lens.
3
4
ASSEMBLY &
CONFIGURATION
Alley Light
Module Installation
WARNING
There is a four (4) module maximum per alley light button on the keypad controller. Do not attempt
to install alley lights in the front or rear power rails as damage to the central control board can occur.
