Ecco Axios - Smart Chassis

17ENGLISH
ASSEMBLY &
CONFIGURATION
Smart Chassis
The front and rear power rails are used for beacon and
directional warning modules as well as the stop-tail-
indicator and center illumination modules.
The center power rail is used for front/rear worklamps,
and alley lights.

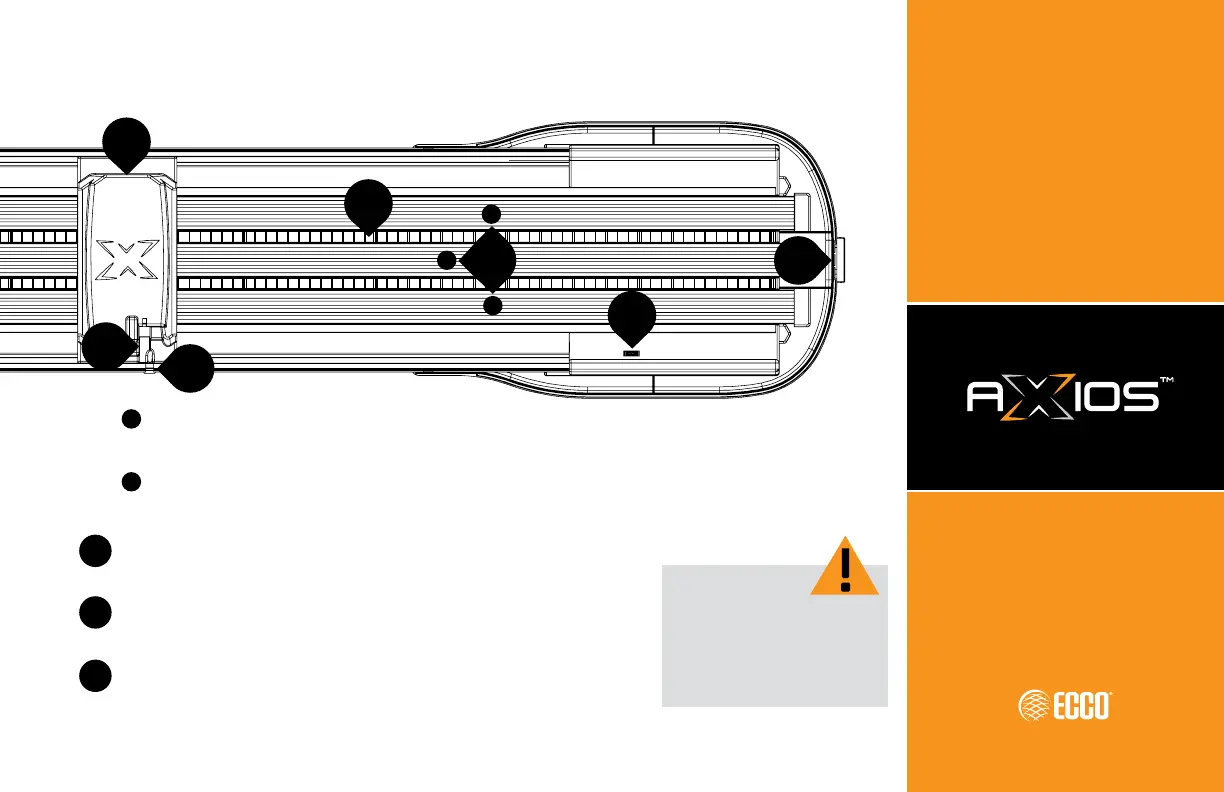

Identify the module positioning guides. These markers are
intended to assist with the symmetrical placement of modules.
Identify the stop-tail-indicator (STI) data port. The STI modules
must be positioned/connected with this port.
Identify the locking lens latch. These latches secure the lens
to the chassis.
a
b
6
7
8
SAFETY
DIRECTOR
1
2
3
5
6
7
8
a
a
b
WARNING
Ensure total average
current draw for any
lightbar configuration is
less than 20A. Reference
average module current
draws on page 4.
