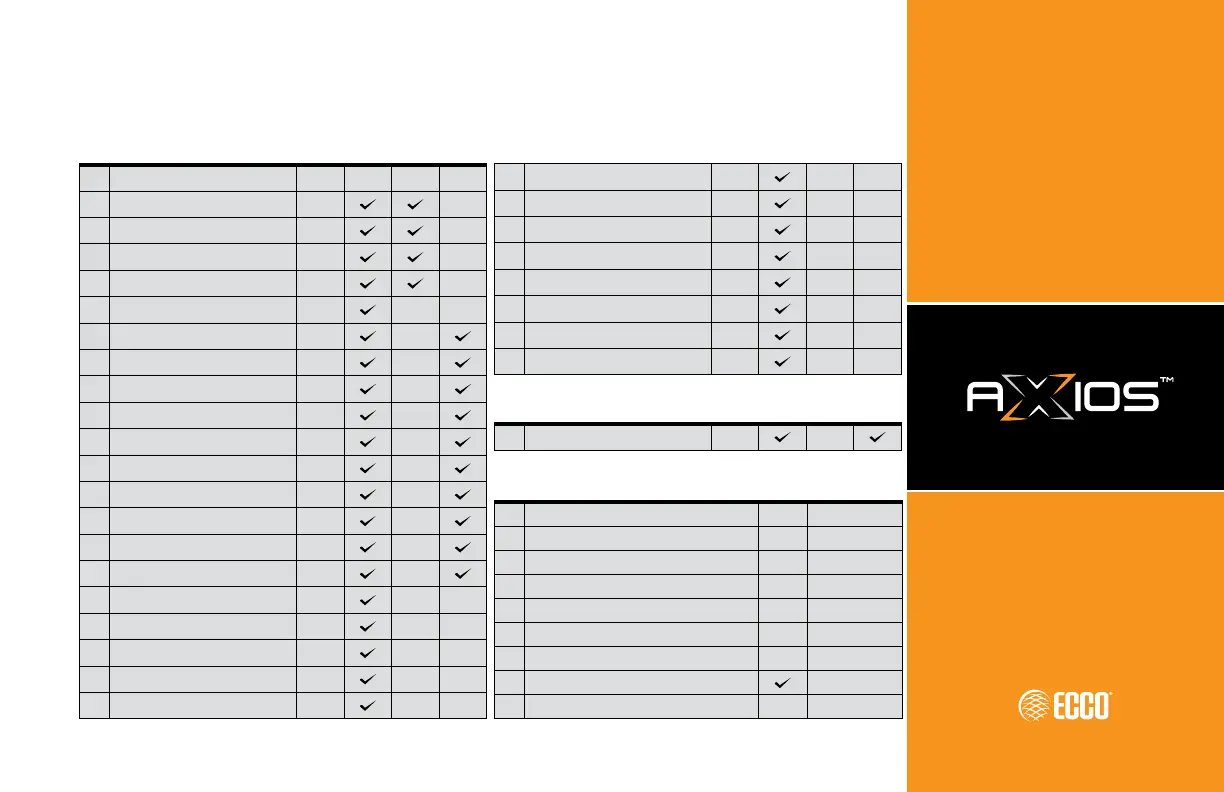

FLASH PATTERN CHART
# Description FPM SAE T13 R65
1 Steady Burn -
2 CA Title 13 Double 75
3 CA Title 13 Slow Quad 65
4 CA Title 13 Slow Double 65
5 CA Title 13 Quint 75
6 Pulse8 75
7 R65 Single 120
8 R65 Double 120
9 R65 Triple 120
10 R65 Quad 120
11 R65 Burst 120
12 R65 Single Side-to-Side 120
13 R65 Double Side-to-Side 120
14 R65 Triple Side-to-Side 120
15 R65 Quad Side-to-side 120
16 R65 Burst Side-to-Side 120
17 Quad Alternate Side-to-Side 75
18 Quad Cross Alternate 75
19 Double Alternate Side-to-Side 75
20 Double Cross Alternate 75
21 Quint Alternate Side-to-Side 75
22 Quint Cross Alternate 75
23 Quad Alternate Side-to-Side Front 75
24 Quad Alternate Side-to-Side Rear 75
25 Double Alternate Side-to-Side Front 75
26 Double Alternate Side-to-Side Rear 75
27 Quint Alternate Side-to-Side Front 75
28 Quint Alternate Side-to-Side Rear 75
29 Cycle All (2,3,5,6,13,15,16) -
# Description FPM SAE T13 R65
1 R65 Rotate 120
ROTATE MODE (BEACONS ONLY)
# Description
1 Left
2 Left Solid
3 Right
4 Right Solid
5 Center Out
6 Center Out Solid
7 Wig Wag
8 Alternating
9 Alternating Quad Flash
FLASH MODE (SAFETY DIRECTORS ONLY)
SAE
NOTES: • EZ1402A amber beacon modules do not meet California Title 13 • EZ1402B blue beacon modules do not meet ECE Regulation 65 • ECE Regulation 65 and California Title 13 do not apply to clear (white)
modules. • SAE, ECE Regulation 65, and California Title 13 do not apply to green modules. • All R65 flash patterns meet ECE Regulation 65 Class II, Beacon modules meet ECE Regulation 65 Class I only. • All SAE flash
patterns meet Class I in day mode and Class II in night mode. • Flash patterns #12 - #22 meet SAE Class 1S 180º • Flash patterns #23 - #29 meet SAE Class 1S 90º
