ECD 100-181 - Controller ID and Configuration

Controller ID.
DEC 2003
Controller ID
Date Drawing No:
Drawn Rev:DATE:
100-170 100-172 100-173 100-174 100-177 CAR_SR
01 - 00-10KW (14HP) 02 - 10-20KW (27HP) 03 - 20-30KW (40HP) 04 - 30-40KW (54HP) 05 - 40-50KW (66HP) 06 - 50-60KW (80HP) 07 - OVER 60 KW H - HYDRAULIC T - TRACTION D - DUAL HYD
04 - 4 STOP 08 - 8 STOP 12 - 12 STOP 16 - 16 STOP 32 - 32 STOP
00 - GMV 3010EN 01 - DYNAHYD DA VALVE 02 - GMV 3010/2CH/S 03 - VF TYPE 1; KEB;ZETADYN 04 - 2 SPEED AC 05 - GMV 3010/S BLAIN EV100 06 - VF TYPE 2 07 - VF TYPE 3;ABB 08 - BERRINGER 09 - GMV CARD 3100ES
S - SIMPLEX D - DUPLEX
A: CONTROL BOARD TYPE;
B: ELEVATOR TYPE;
C: ELEVATOR CONTROL;
D: No OF STOPS;
E: MOTOR CONTROL;
F: MOTOR SIZE;
G: DOOR CONFIGURATION;

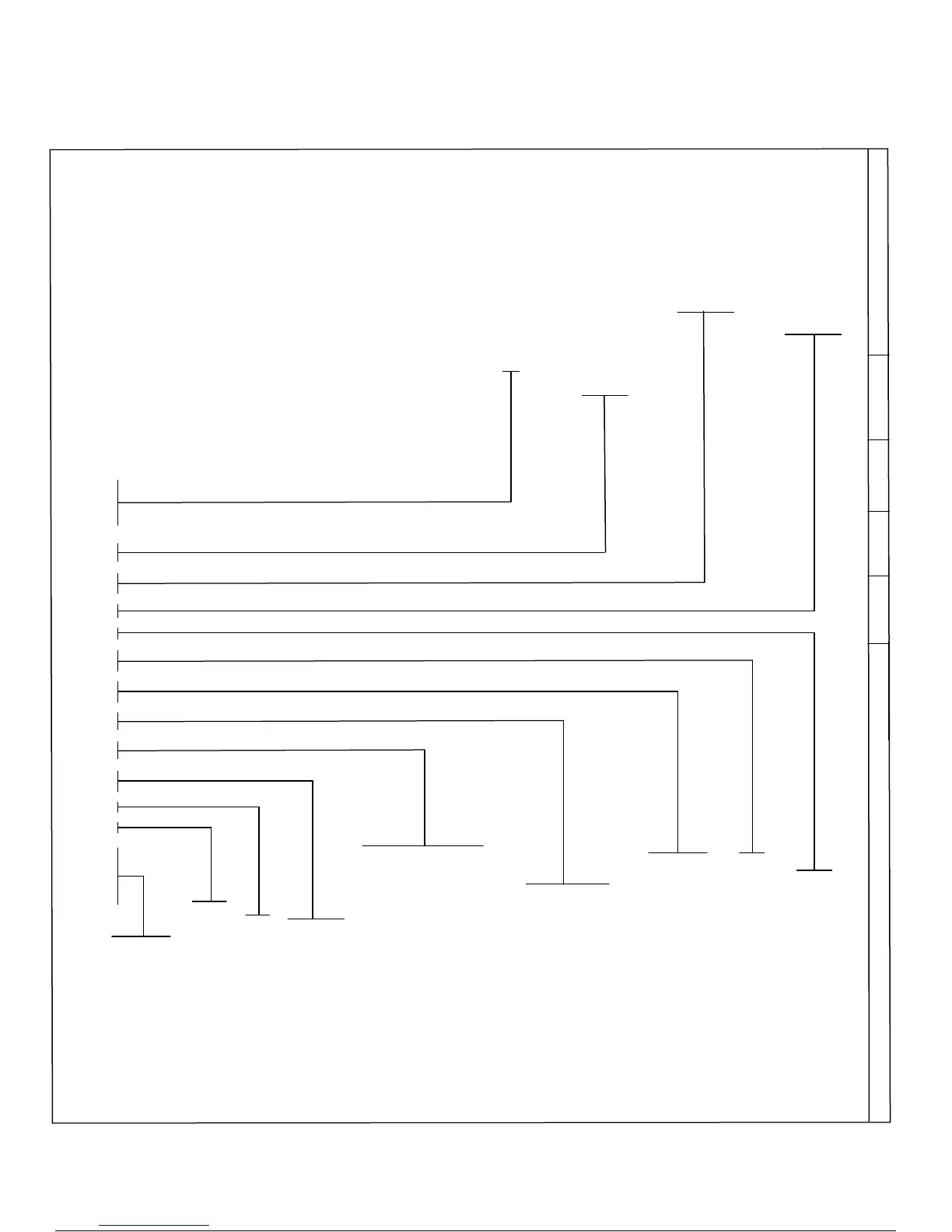

AAA-AAA - B -C DD -EE - FF GG HH
-
- - -
01 - FRONT DOORS 02 - FRONT & REAR DOORS 03 - SELECTIVE F& R DOORS 04 - FRONT DOORS W/CAM 05 - F & R DOORS W/CAM
01 - RELAY OPERATED 02 - CONTACTOR OPERATED
II
00 - NA 01 - 100-145 SW/OVER 02 - 100-145 & UPS
AUXILIARY EQUIPMENT 100-127 INSPECTION RUN/CALL BOARD 100-133 POSITION DISPLAY 100-135 SEGMENT POSITION DISPLAY 100-141 POSITION DISPLAY 100-143 POSITION DISPLAY 100-144 POSITION DISPLAY 100-146 DISPLAY PROGRAMMER 100-152 POSITION DISPLAY 100-154 RS485-RS422 BOARD 100-157 POSITION DISPLAY 100-162 POSITION DISPLAY 100-163 POSITION DISPLAY 100-175 SHAFT INFORMATION SYSTEM COP80 CAR OPERATING BOARD 8 STOP COP160 CAR OPERATING BOARD 16 STOP COP240 CAR OPERATING BOARD 24 STOP COP320 CAR OPERATING BOARD 32 STOP GROUP_SR GROUP SERIAL BOARD HALLSIO4_SR 4 IN/OUT SERIAL BOARD SEC_SR SERIAL SECURITY BOARD GONG CTRL SERIAL BOARD POS8 8 STOP SERIAL POS. OUT. BOARD POS24 24 STOP SERIAL POS. OUT. BOARD POS32 32 STOP SERIAL POS. OUT. BOARD
00 - NA 01 - GONG RELAYS 02 - 100-125/4 GONG BOARD 03 - 100-125/8 GONG BOARD 04 - 100-125/12 GONG BOARD
00 - NA 01 - SECURITY RELAYS 02 - 100-126/4 BOARD 03 - 100-126/8 BOARD 04 - 100-126/12 BOARD
00 - NA 01 - 100-128 DEC-BINARY BOARD 02 - 100-128 REVERSE DEC-BINARY BOARD 03 - 100-148 DEC-GREYCODE BOARD
-
- - -
JJ LLKK MMMM
I: EMERG. LOWERING;
J :GONGS/CHIMES;
K: SECURITY;
L: BINARY BOARDS;
M: SERIAL NUMBER;
S/N OF MAIN CONTROL BOARD
H: DOOR CONTROL;
