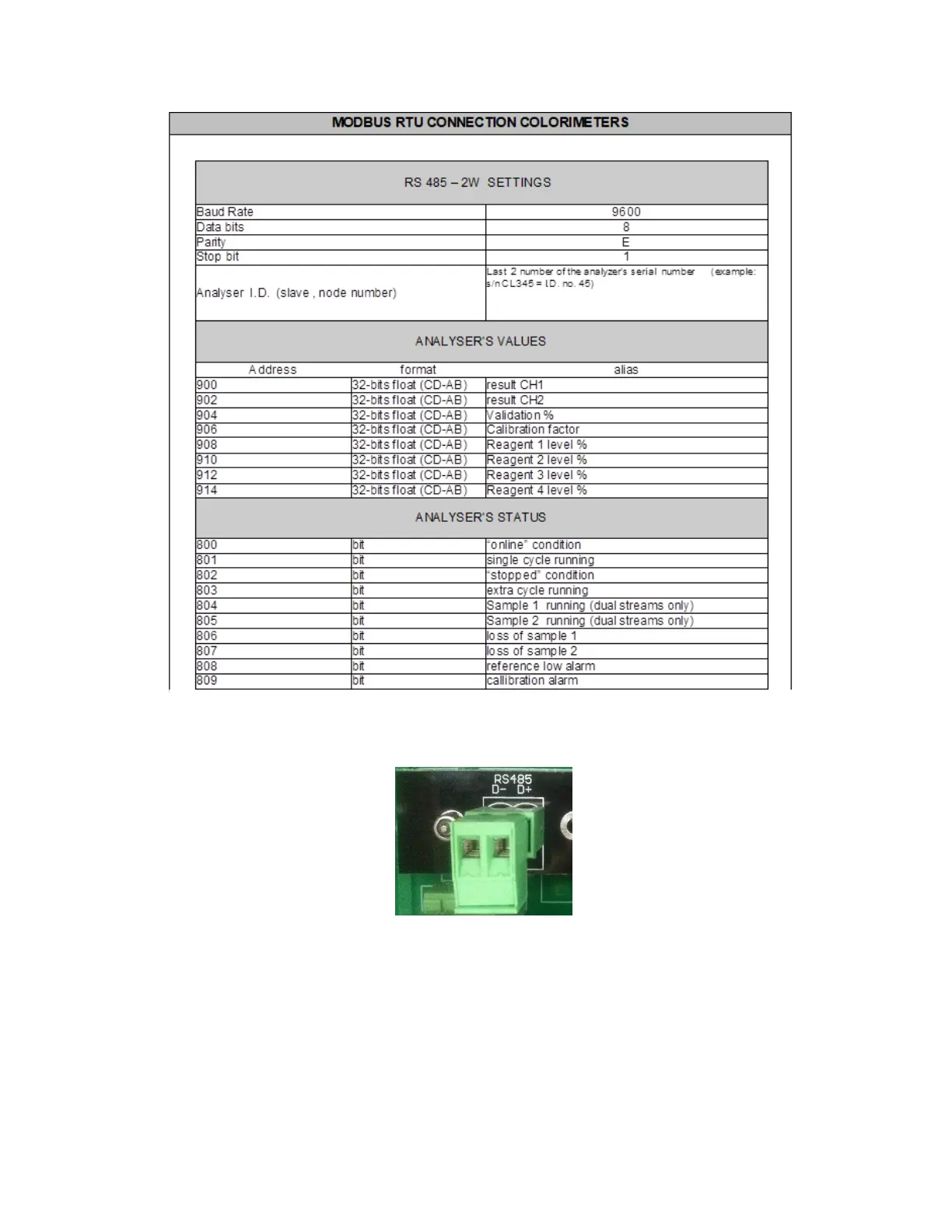

Modbus protocol connection (Modbus RTU). This module is plugged on the control board. Use

the connector provided on the board for communication.
