PPF-225 ASSEMBLY
X7502308206 15
©7/2015 ECHO Inc.
ASSEMBLY

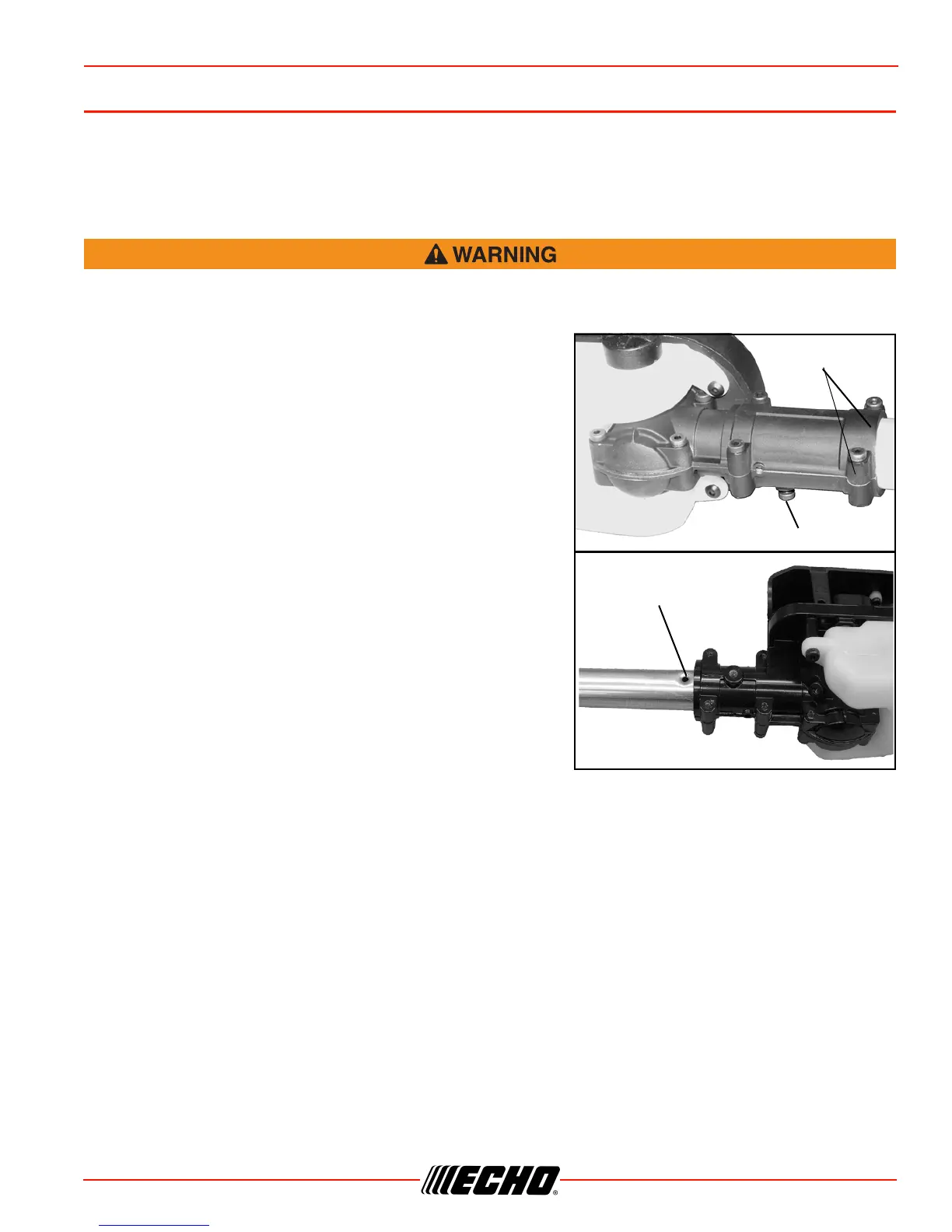

Cutting Attachment to Drive Shaft Installation
Saw Chain is sharp! Always wear gloves when handling assembly, otherwise serious personal injury
may result
1. Loosen the two (2) screws (A) and remove locator screw (B)
on cutting attachment.
2. Slide the cutting attachment onto the shaft housing until the
hole in the neck of the cutting attachment is aligned with the
hole (C) in the housing. (It may be necessary to rotate the
saw chain slightly to align the internal pinion and drive
shaft.).
3. Insert locator screw (B) into hole (C) and tighten to snug.
4. Tighten bolts (A), clamping the cutting attachment onto the
housing.
Parts Required: Drive Shaft Assembly, Cutting Attachment.
A
B
C
