PPF-225 MAINTENANCE
X7502308206 29
©7/2015 ECHO Inc.
Lubrication
Drive Shaft
Level 1.

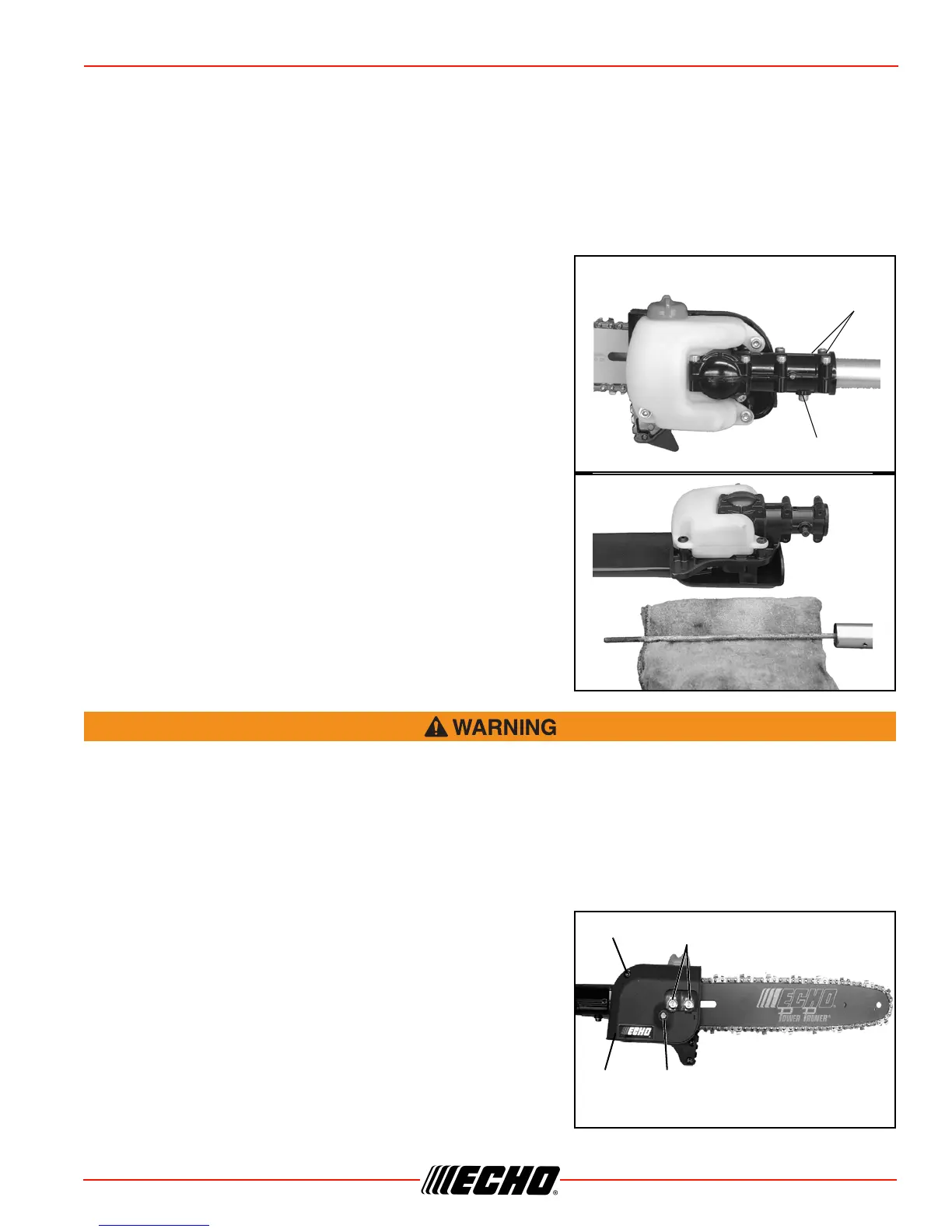

1. Remove cutting attachment locator screw (A).
2. Loosen two (2) bolts (B).
3. Remove cutting attachment assembly.
4. Remove flex cable, wipe clean and apply a thin coating
(15 ml [1/2 oz.]) of lithium based grease.
5. Slide the flexible cable back in the drive housing. DO NOT
get dirt on the flex cable.
6. Install and secure cutting attachment assembly.
Guide Bar and Saw Chain Replacement
Never try to replace or adjust guide bar and saw chain with engine running. Always disconnect
spark plug wire before servicing guide bar and saw chain. This saw chain is VERY sharp, wear heavy
gloves to protect your hands when handling it. Wear eye protection meeting CE or ANSI
specification Z87.1.
Guide Bar Replacement / Installation
Level 2
1. Remove 2 guide bar nuts (A) and sprocket guard screw (B),
and turn saw chain tension adjustment screw (C)
counterclockwise to release tension.
2. Remove sprocket guard (D).
3. Remove guide bar and saw chain from gear case and
sprocket.
4. Remove chain from guide bar and check guide bar for
damage and excessive or uneven wear. Replace guide bar if
necessary.
Parts Required: Lithium Based Grease
