Exhaust System

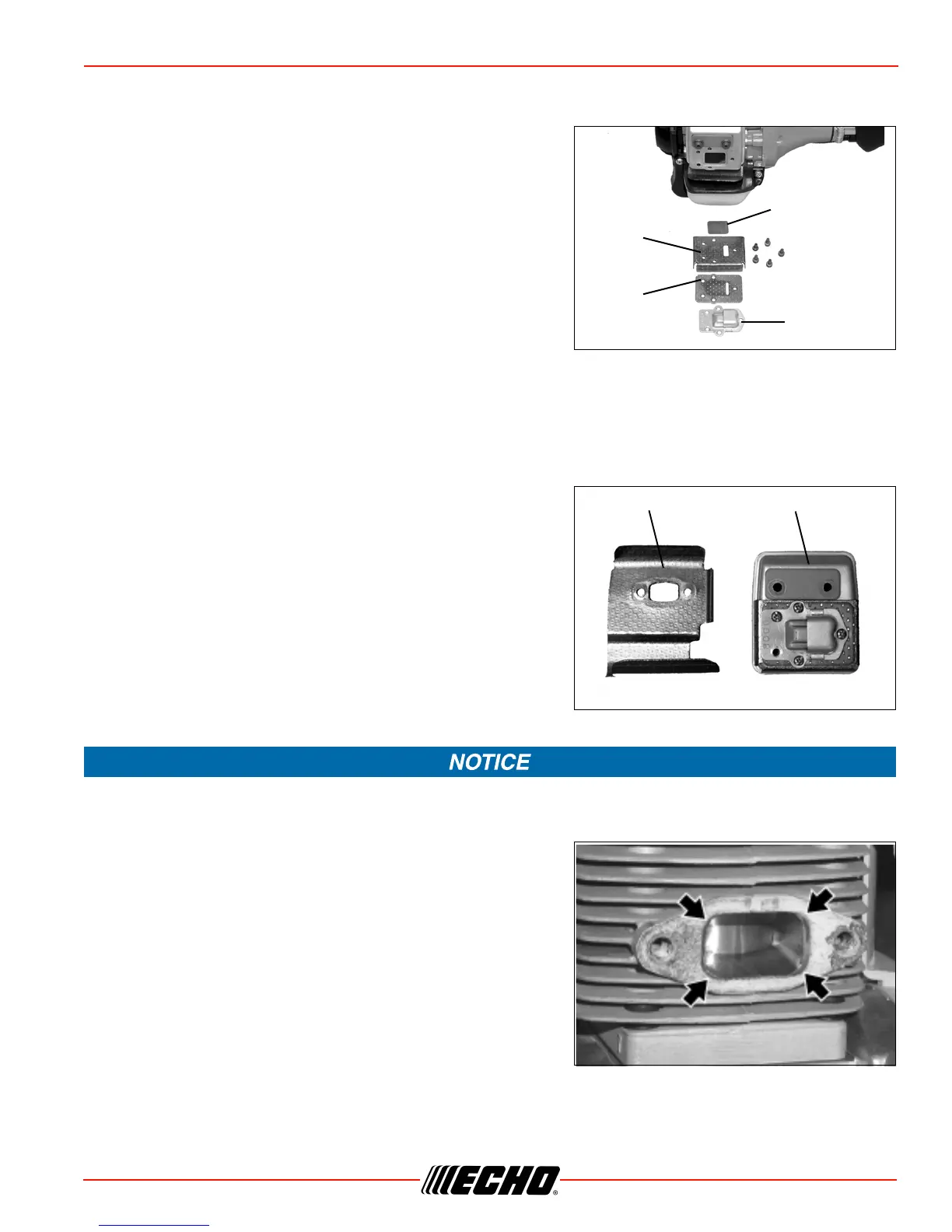

Spark Arrestor Screen
Level 2.
1. Remove engine cover (B).
2. Place piston at Top Dead Center (TDC) to prevent
carbon/dirt from entering cylinder.
3. Remove spark arrestor screen cover (C), gaskets (D), (E),
and screen (F), from muffler body.
4. Clean carbon deposits from muffler components.
Note: When cleaning carbon deposit, be careful not to damage the catalytic element inside muffler.
5. Replace screen if it is cracked, plugged, or has holes burned through.
6. Assemble components in reverse order.
Exhaust Port Cleaning
Level 2.
1. Remove spark plug lead from spark plug, and remove
engine cover.
2. Place piston at top dead center. Remove muffler (A) and
heat shield (B).
3. Use a wood or plastic scraping tool to clean deposits from
cylinder exhaust port.
Never use a metal tool to scrape carbon from the exhaust port. Do not scratch the cylinder or piston when
cleaning the exhaust port. Do not allow carbon particles to enter the cylinder.
4. Inspect heat shield, and replace if damaged.
5. Install heat shield and muffler.
6. Tighten muffler mounting bolts (or nuts) to 90-110 kgf•cm
(80-95 in•lbf).
7. Install engine cover and attach spark plug lead.
8. Start engine, and warm to operating temperature.
9. Stop engine, and re-tighten mounting bolts (or nuts) to
specifications.
Parts Required: Spark Arrestor Screen, Gasket
Parts Required: As needed: Heat Shield
