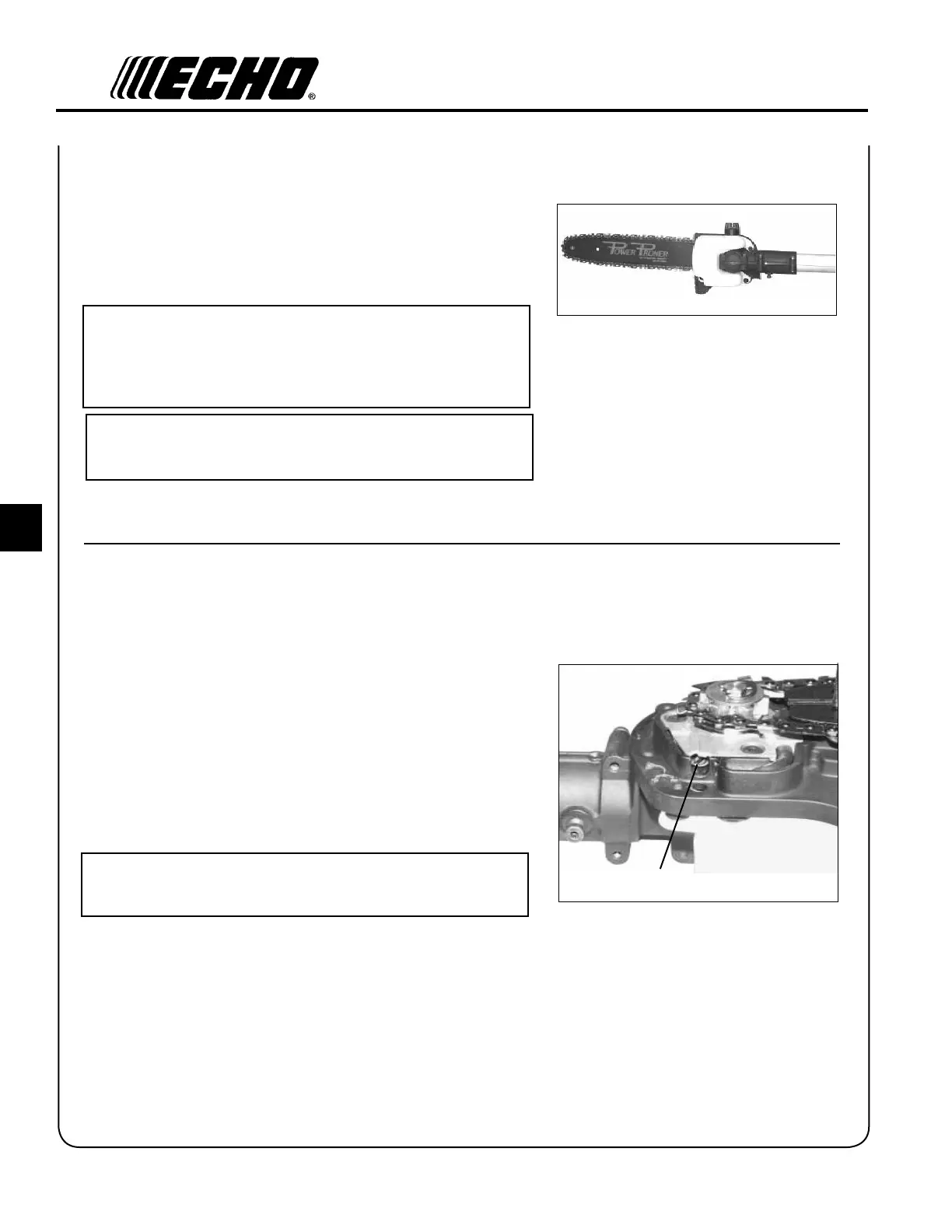

adjustIng automatIc oIler
Tools Required: 10 x 19 mm T-Wrench
1. Remove two (2) 10 mm guide bar retaining nuts and sprocket
cover.
2. From bottom of gear case, turn adjustment screw clockwise to
decrease oil volume - anticlockwise to increase oil volume.
NOTE
Very little visible oil on the saw chain will provide sufcient lubri-
cation.
Automatic Oiling System
1. Wipe debris from around oil ll cap.
2. Remove oil ll cap and ll reservoir with a quality, low viscosity
guide bar and saw chain oil.
NOTE
The discharge volume of the automatic oiler is preset to deliver 3
to 4 mL/min. at normal operating rev. During heavy or dry cutting
conditions the oil discharge volume may be adjusted to assure
adequate lubrication. Rell the oil reservoir with each tank of fuel.
IMPORTANT
To prevent plastic deterioration, do not use synthetic or silicone
based oil.
lubrIcatIng the guIde bar and saw chaIn
Adjustment screw
