equIpment
Before operation a complete check of the unit must be performed;
• Check unit for loose/missing nuts, bolts and screws. Tighten
and/or replace as needed.
• Inspect fuel lines, tank and area around carburettor for fuel leaks.
DO NOT operate unit if leaks are found.
• Never adjust the guide bar or saw chain when the engine is operating.

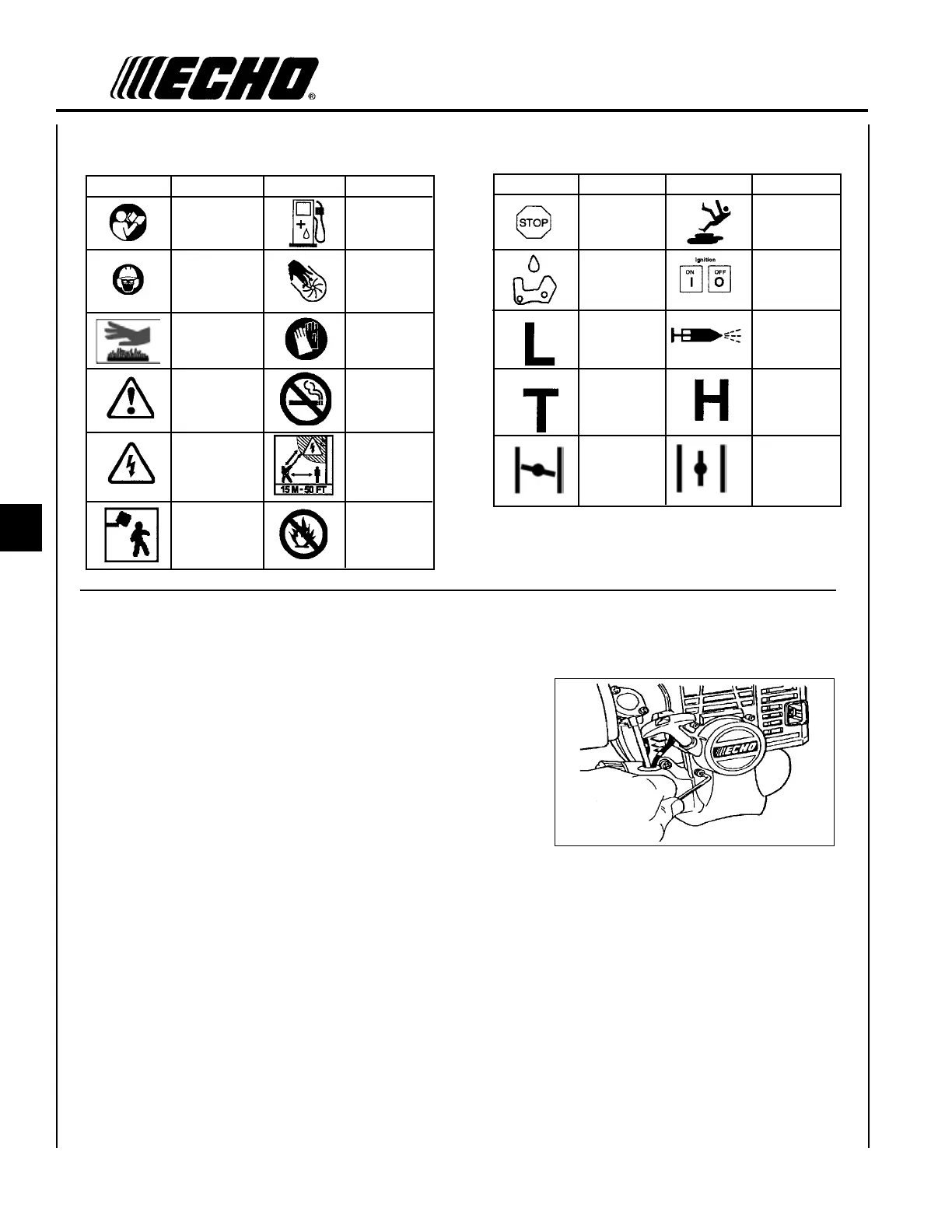

InternatIonal symbols
Hot
Surface
Symbol
description/application
Symbol form/shape
Symbol
description/application
Symbol form/shape
Read and understand
Operator's Manual.
Wear eyes, ears and
head protection
Fuel and oil mixture
Finger Severing
Safety/Alert
Avoid all power lines.
This unit is not insu-
lated against electri-
cal current.
Do not operate closer
than 15 M (50 ft.) from
electrical hazards.
Keep bystanders
at least 15 meters
(50 feet) away.
Plan retreat
path from falling
objects.
Wear hand
protection. Use
two handed.
DO NOT smoke
near fuel.
Symbol
description/application
Symbol form/shape
Symbol
description/application
Symbol form/shape
Carburetor adjustment
- Idle speed
Carburetor adjustment
- High speed mixture
Emergency stop
Carburetor adjustment
- Low speed mixture
DO NOT allow ames
or sparks near fuel.
Wear slip resistant
foot wear.
Ignition
ON/OFF
Chain lubrication
Primer bulb
Choke Control
"Cold Start"
Position
(Choke Closed)
Choke Control
"Run"
Position
(Choke Open)
