Echo PPF-225 User Manual

PPF-225 ASSEMBLY
X7507820701 19
© 09/19 ECHO Incorporated
ASSEMBLY

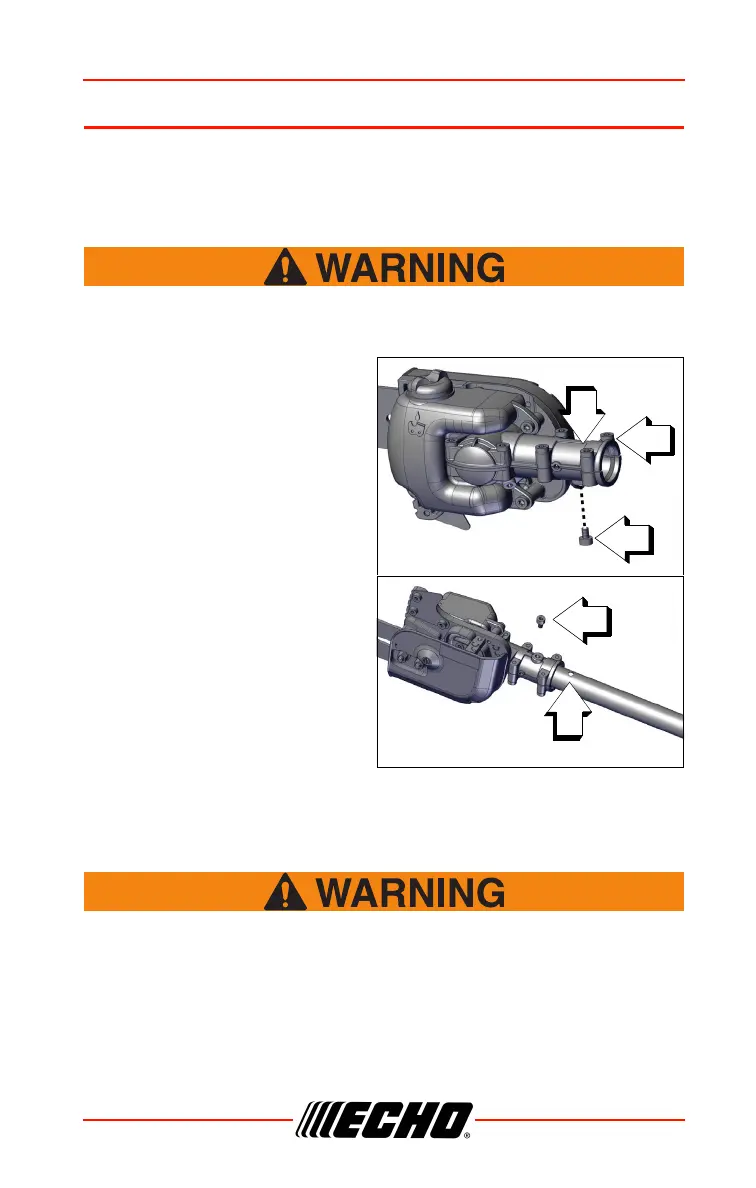

Cutting Attachment to Drive Shaft Installation
Saw Chain is sharp! Always wear gloves when handling
assembly, otherwise serious personal injury may result.
1. Loosen the two (2) screws (A)
and remove locator screw (B)
on cutting attachment.
2. Remove the vinyl cap from the
drive shaft.
3. Slide the cutting attachment
onto the shaft housing until the
hole in the neck of the cutting
attachment is aligned with the
hole (C) in the housing (it may
be necessary to rotate the saw
chain slightly to align the
internal pinion and drive shaft).
4. Insert locator screw (B) into
hole (C) and tighten to snug.
5. Tighten bolts (A), clamping the cutting attachment onto the housing.
Saw Chain Adjustment
Always disconnect spark plug wire before servicing cutting
attachment. Wear gloves when handling saw chain, otherwise
serious personal injury may result.
Parts Required: Drive Shaft Assembly, Cutting Attachment.
A
C
A
C
B
C
B
C
