Echo PPF-225 User Manual

PPF-225 MAINTENANCE
X7507820701 37
© 09/19 ECHO Incorporated

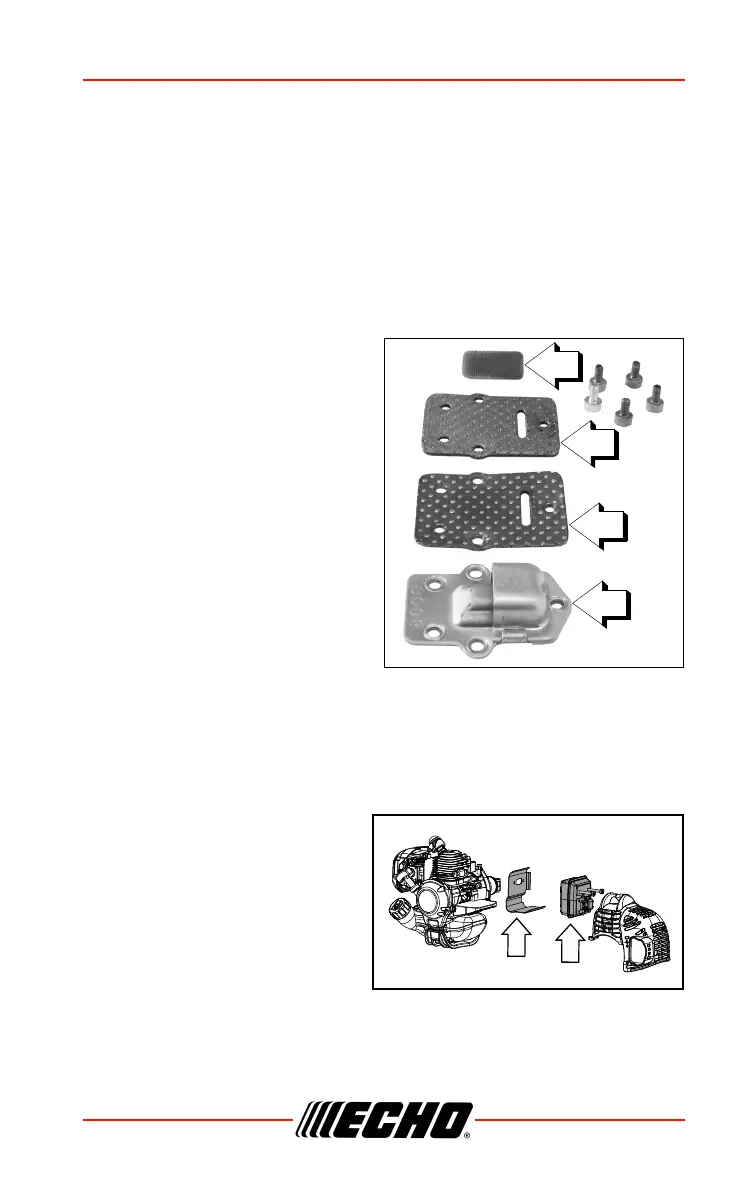

Exhaust System
Spark Arrestor Screen
Level 2.
1. Remove spark plug lead and engine cover.
2. Place piston at Top Dead Center (TDC) to prevent carbon/dirt from
entering cylinder.
3. Remove spark arrestor screen
cover (C), gaskets (D), (E), and
screen (F), from muffler body.
4. Clean carbon deposits from
muffler components.
Note: When cleaning carbon
deposit, be careful not to
damage the catalytic
element inside muffler.
5. Replace screen if it is cracked,
plugged, or has holes burned
through.
6. Assemble components in
reverse order.
Exhaust Port Cleaning
Level 2.
1. Remove spark plug lead from spark plug, and remove engine cover.
2. Place piston at top dead
center. Remove muffler (A)
and heat shield (B).
Parts Required: Spark Arrestor Screen, Gasket
Parts Required: As needed: Heat Shield
C
F
D
E
A
B
