22

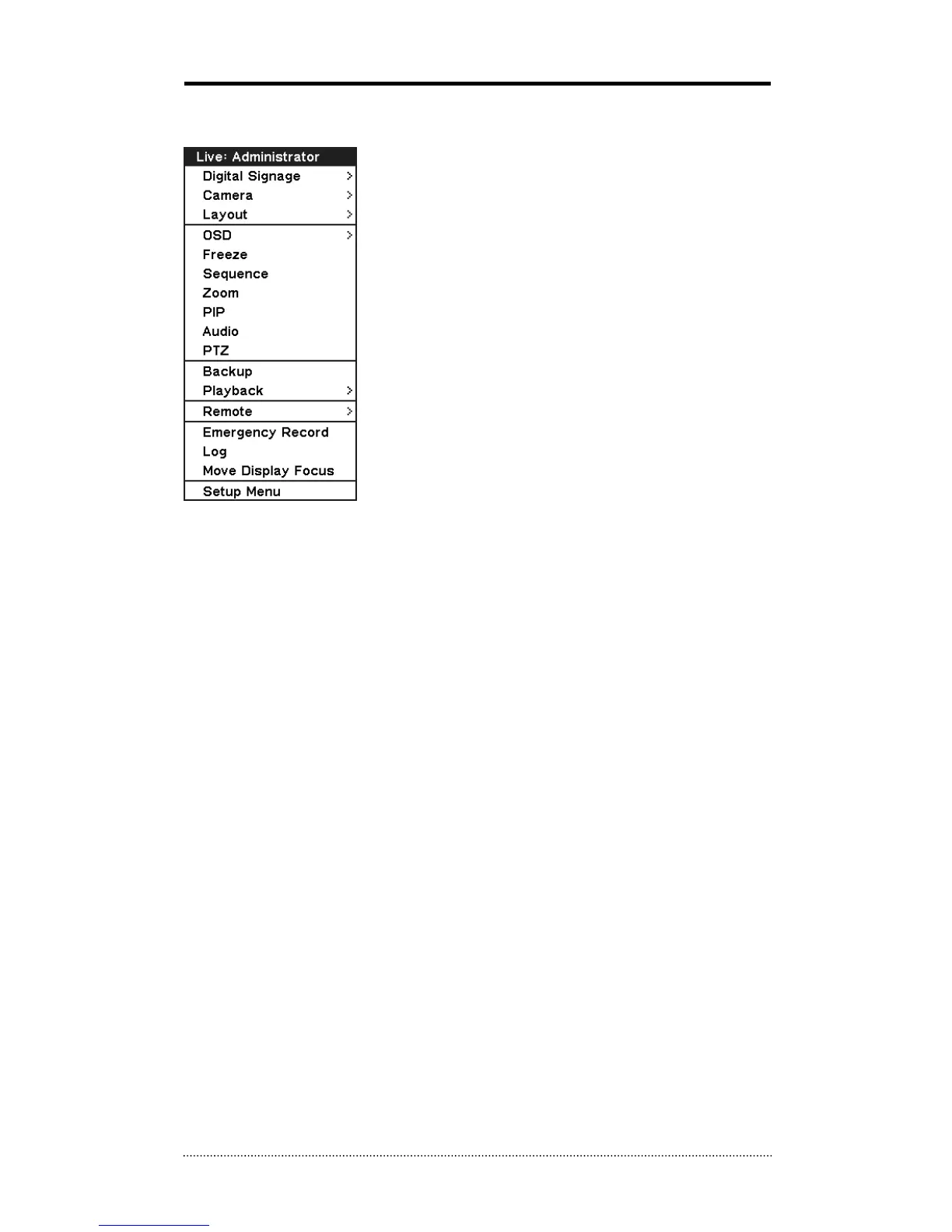

1-7. Contextual Menu
Additional Contextual Menu screen appears by pressing right button on the Mouse.
Digital Signage: Select Digital Signage output either on VGA or CVBS.
Camera : Select camera no.
Layout : Select display mode (8/16 ch. DVR Only)
OSD : Select OSD display option
Text-In Info.: On/Off Text-In OSD.
Freeze : Pause current image display
Sequence : Begin sequence display
Zoom : Zoom in image (x2, x4, x8)
PIP : Select PIP mode and camera
Audio : Select Audio outs
PTZ : Select PTZ options
Backup : Select backup options
Playback : Playback recorded data
Remote : Select PC Free Remote Monitoring option (refer to Appendix D. PFRM)
E. Record : Start Emergency Recording
Log : Select System/Event log
Move Display Focus: Move control focus (e.g. setup, OSD and etc) from one monitor to
another when using both CVBS and VGA at the same time.
Setup Menu: Enter Main setup menu
For more information on Contextual Menu please refer to 2. DVR Configuration.
