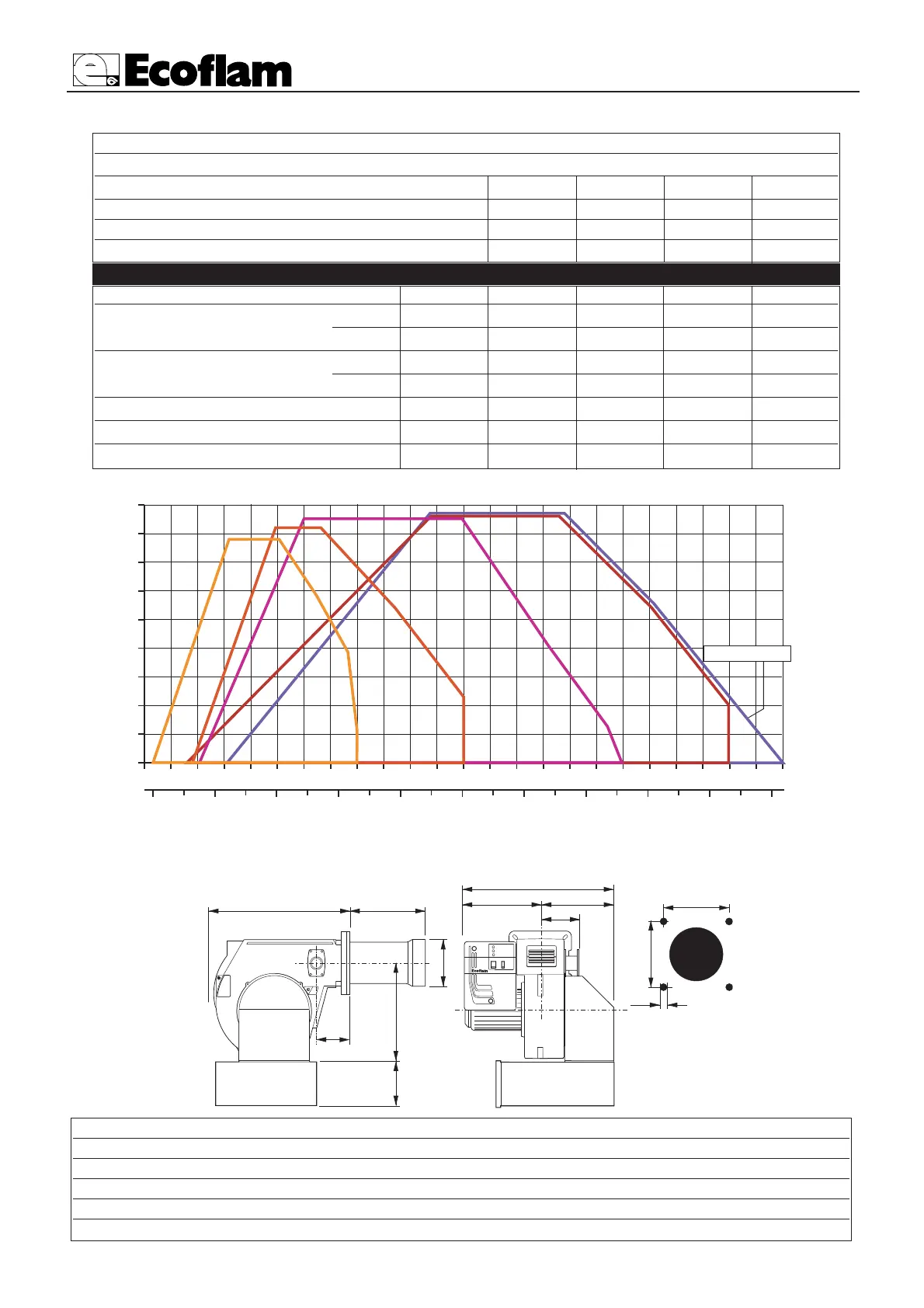

Ecoflam Blu 700 PR/MD - WORKING FIELDS

150100 200
200100 300 400 500 600 700 800 900 1000 1100
250 300 350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300
0
1
2
3
4
5
6
7
8
9
mbar
kW
kcal/h
x 1000
Blu 700 PR/MD Blu 1000 PR/MD Blu 1200 PR/MD
BLU 1400 PR/MD
Blu 500 PR/MD
pag.15
LB 381 BLU 500 -1400 PR / MD B
BLU PR - MD 500 700 1000 1200 1400
Termal power max. kW 500 700 1000 1200 1300
kcal/h 430.000 602.000 860.000 1.032.000 1.118.00
Termal power min. kW 120 190 200 180 250
kcal/h 103.200 163.400 172.000 154.800 215.000
Voltage 50 HzV 230 / 400 230 / 400 230 / 400 230 / 400 230 / 400
Motor kW 0,55 0,74 1,1 2,2 2,2
Rpm N° 2800 2800 2800 2800 2800
TECHNICAL DATA
OPERATING FEATURES
Models : Blu 500-700-1000-1200-1400 PR/MD Categoria gas - II 2H 3+
G20 G25 G31 G30
Max. gas pressure mbar 25 - 45 35
Min. gas pressure mbar 17 - 25 20
Fuel L.C.V. kcal/Nm
3
8.570 - 22.260 29.320
WORKING FIELDS
Output
Backpressure in comb. chamber
OVERALL DIMENSIONS
G
M
L
I
F
D - D1E
CB
A
H
N
O
MODELS A B C D D1 E F G H I L M N O
BLU 500 PR/MD 650 330 320 170 330 555 160 385 225• 190 190 M10 115 165
BLU 700 PR/MD 650 330 320 170 390 555 180 385 225• 190 190 M10 115 165
BLU 1000 PR/MD 650 330 320 175 395 555 190 385 225• 190 190 M10 115 165
BLU 1200 PR/MD 670 350 320 310 470 555 215 385 225• 190 190 M10 115 165
BLU 1400 PR/MD 670 350 320 310 470 555 215 385 225• 190 190 M10 115 165
D = short head D1 = long head
•= ( Optional)
Dimensions (mm)
