Ecolab Hybrid 7 Foamatic MA2iM User Manual

0 1 2 3 4 5 6 7 8 9
A B C D E F
A B C D E F
Hybrid 7 Foamatic MA MA2i, MA2iM, MA3i, MA3iM

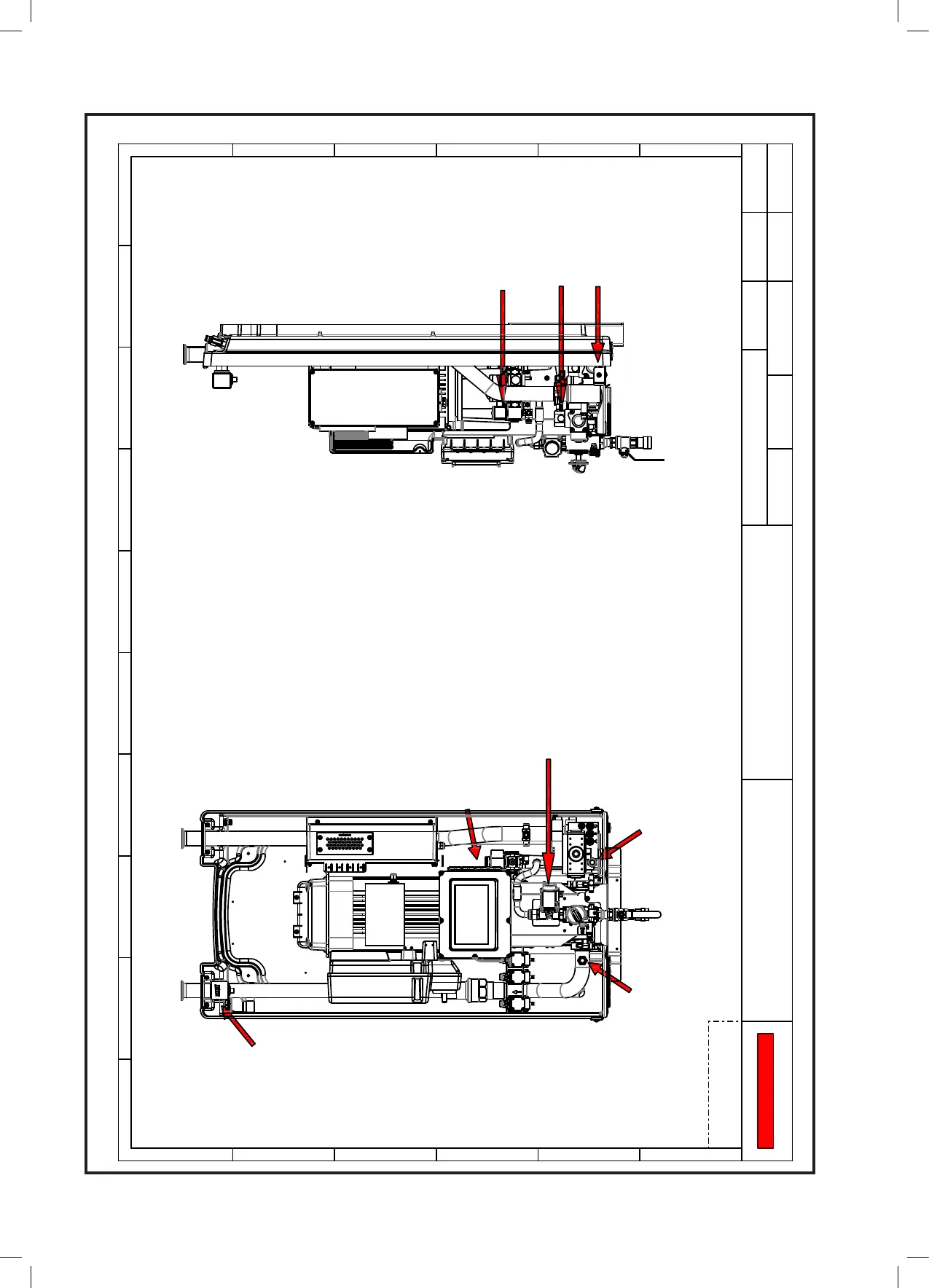

Component placement
Revision
Init.
11
DCC
&EFS
Next page
No of pages
11
Page
Dwg. Number
110009267
Dato
21-02-2023
Project responsible
SAN
A
-Q110 Rinse valve -Q111 Product water valve (Not installed in PD version) -Q112 Air valve -Q120 Product valve A -Q121 Product valve B -Q122 Product valve C -Q113 Manual Cleaning valve -K1 Inverter -K11 MultiController -K12 IO Module
-K4 Inlet Pressure sensor -K5 Outlet Pressure sensor -K8 Flow Switch -M1 Pump -K6 PT1000 sensor
-K5
-K4
-K8
-Q111
-Q110
-K6
-M1
-K1
-K11
-K12
-Q120
-Q121
-Q122
-Q113
-K12
-Q112
11.3. Component location MA


Ecolab Hybrid 7 Foamatic MA2iM Specifications

General

Brand	Ecolab
Model	Hybrid 7 Foamatic MA2iM
Category	Cleaning Equipment
Language	English
