Hybrid 7 Foamatic SA
SA2i, SA2iM, SA3i, SA3iM

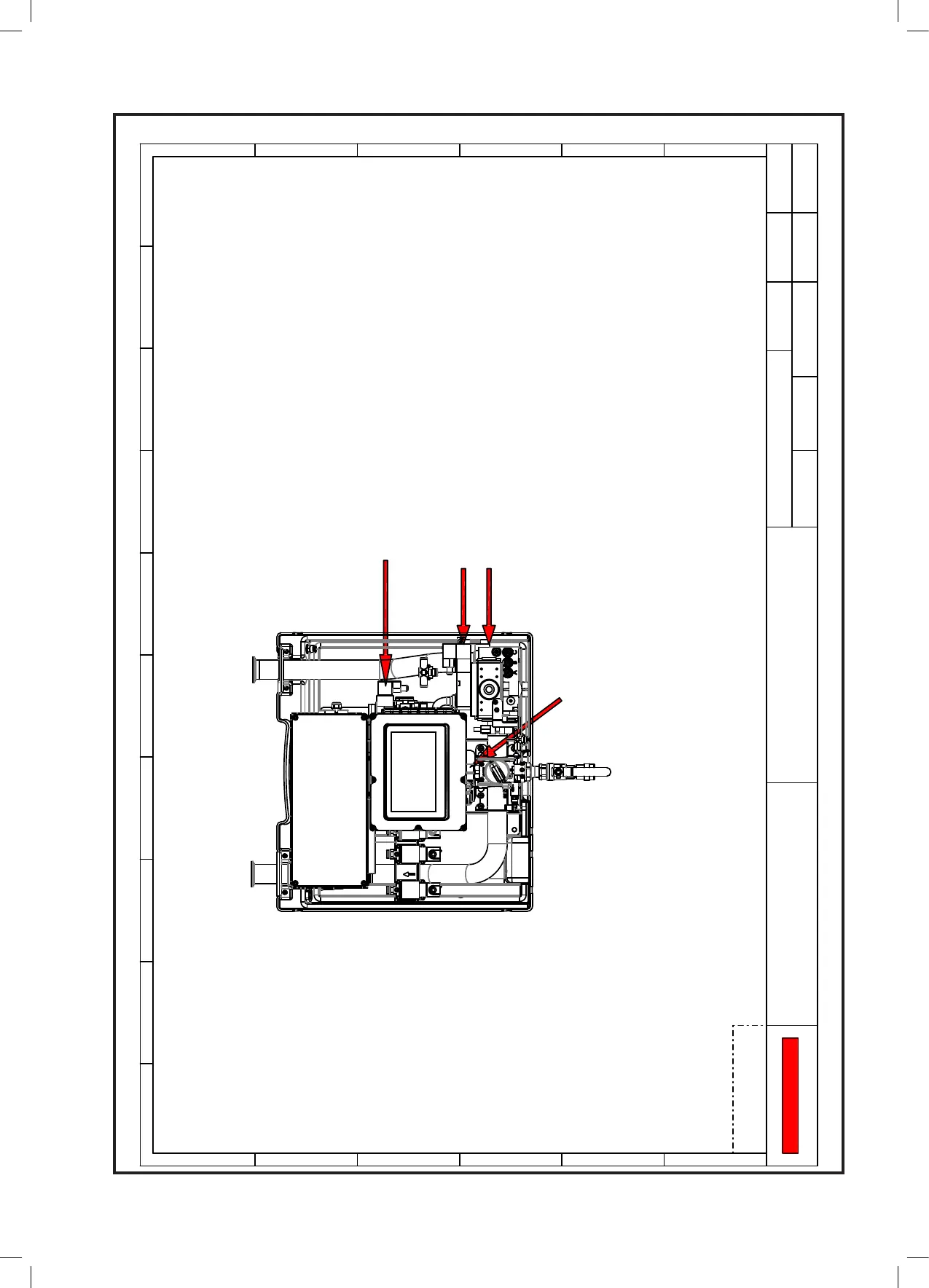

Component placement
Revision
Init.
8
DCC
&EFS
Next page
No of pages
8
Page
Dwg. Number
110009261
Dato
21-02-2023
Project responsible
SAN
B
-Q110 Rinse valve
-Q111 Product water valve (Not installed in PD version)
-Q112 Air valve
-Q120 Product valve A
-Q121 Product valve B
-Q122 Product valve C
-Q113 Manual Cleaning valve
-Q113
-K11 MultiController
-K12 IO Module
-Q120
-Q110
-Q121
-Q122
-Q111
-Q112
-K11
-K12
12.3. Component location SA
