Hybrid 7 Foamatic MA
MA2i, MA2iM, MA3i, MA3iM
STO
Revision
Init.
4
DCC
&EFS
Next page
4
No of pages
11
Page
Dwg. Number
110009267
Dato
05-11-2021
Project responsible
SAN
A

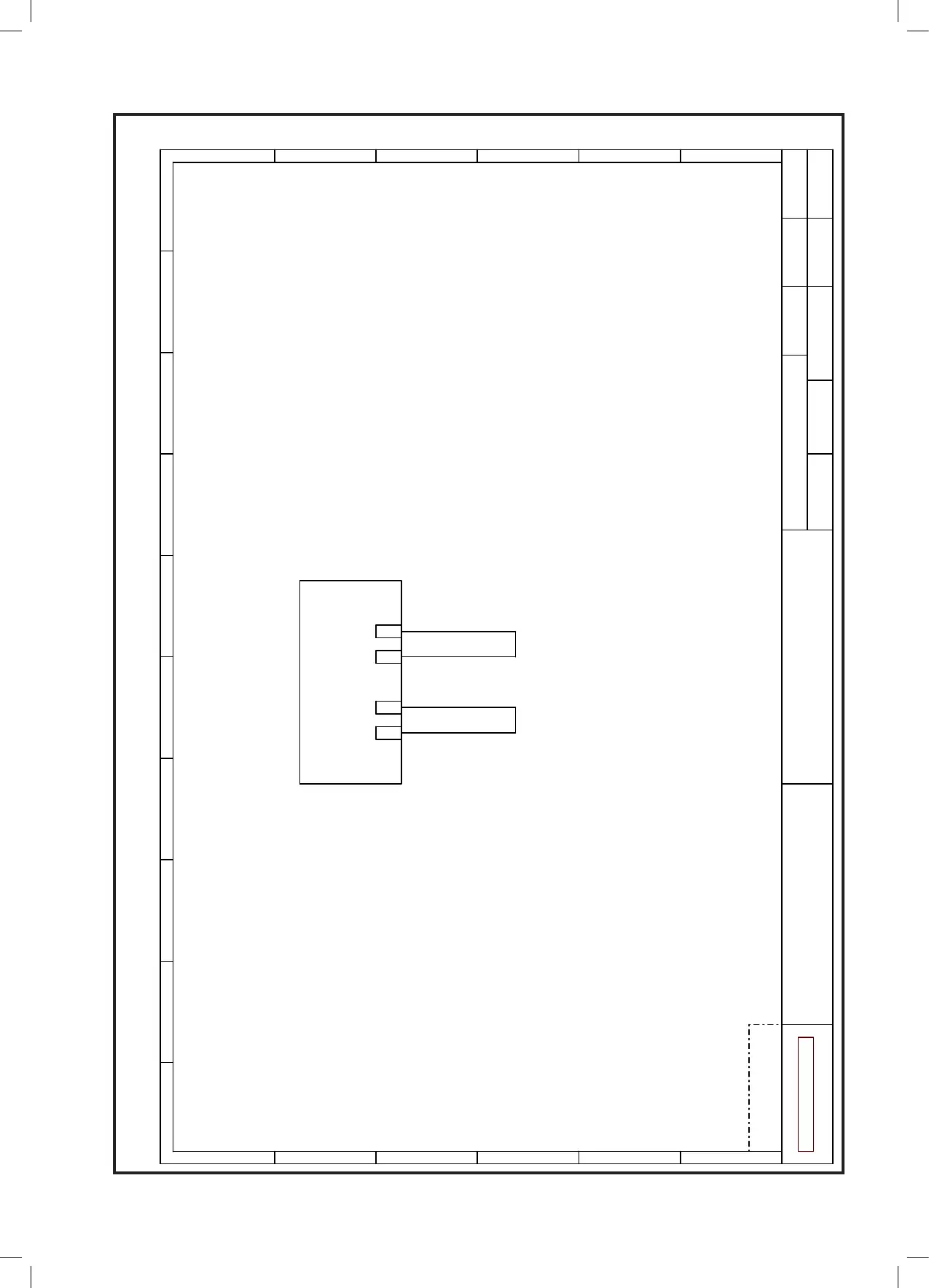

STO-A_+
STO-A_-
STO-B_+
STO-B_-
-K1
S
TO
49
51
Table of Contents
Table of Contents
9
Contents
11
Document Symbols
11
General Information
12
Identification Plate
13
Supplier
13
Specifications
14
Safety
15
Operation Safety
15
Product Safety
15
Emergency Shutdown
16
Turn off the Power Supply
16
Closing Valve for Water Supply
16
Closing Valve for Air Supply
16
Noise
16
Vibrations
16
Anticipated Failurs and Precautions
16
Bursted Air Tube in Unit
16
Breakdown of Non-Return Valves for Air and Water
16
Residual Risk
16
Transportation & Installation
17
Transportation
17
Installation Preparations
17
Mounting Instructions
17
Electrical Installation
17
Power Supply
17
Earth Leakage Circuit Breaker (ELCB)
17
Service Switch
17
I/O Modules
17
Water Connection
17
Air Connection
18
Supply of Product
18
User Pack System
18
Can Holder System
18
Use of Direct Chemical Injection (DI)
19
Hose Connection
19
System Preparation
20
Start up of New System
20
Bleeding Guidelines
20
Bleeding the Pipe System
20
Bleeding the Pump (MA Only)
20
Adjustments
20
Instruction and Setup
20
Adjustment of Air
20
Adjustment of Product - Manual Block
20
Operation
22
Start/Stop
22
Maintenance, Troubleshooting & Service
23
Maintenance Personnel
23
Long Production Stops
23
Components
23
Control System
23
Flow Switch
23
Pump/Motor
23
Product Solenoid Valve
23
Preventive/Regular Maintenance
24
Rinsing the Product Supply/Injector System
24
Change of Injector
24
Deliming
24
Coupling
24
Internal Cleaning of the Unit
24
Trouble Shooting and Remedy
25
Service Address
25
End of Use
26
Dismounting
26
Disposal
26
Spare Part List
27
MA Overview
28
SA Overview
30
Manual Block
32
Automatic Block
34
Inlet & Outlet Pipe MA
36
Inlet & Outlet Pipe SA
38
Product Solenoid Valve
40
Controller with Display
42
Sensors & Diagrams MA
44
Operating Diagram MA
45
Electrical Ratings MA
46
Component Location MA
47
Circuit Diagrams & Sensor Diagrams MA2IM, MA3IM, MA2I, MA3I
48
Circuit Diagrams & Sensor Diagrams MA2M, MA3M, MA2, MA3
57
Pump Curve
64
Sensors & Diagrams SA
65
Operating Diagram SA
66
Electrical Ratings SA
67
Component Location SA
68
Circuit Diagrams & Sensor Diagrams SA
69
Installation, Mounting & Layout
76
Installation & Mounting MA
76
Vertical Adjustment MA
77
Installation & Mounting SA
78
Layout MA
79
Layout SA
80
