Installing the Motherboard

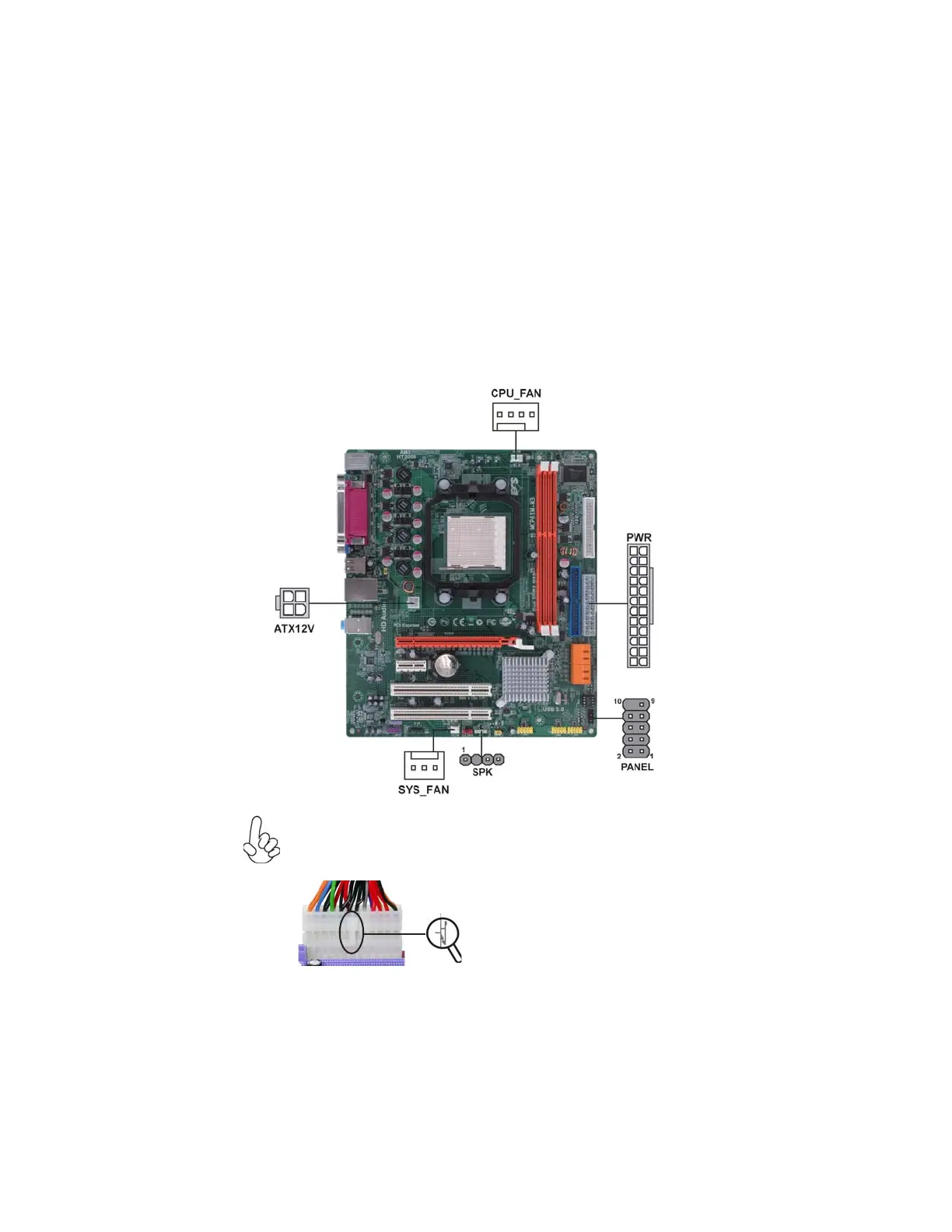

Connecting Case Components

After you have installed the motherboard into a case, you can begin connecting the

motherboard components. Refer to the following:

1 Connect the CPU cooling fan cable to CPU_FAN.

2 Connect the system cooling fan connector to SYS_FAN.

3 Connect the standard power supply connector to PWR.

4 Connect the auxiliary case power supply connector to ATX_12V.

5 Connect the case switches and indicator LEDs to the PANEL.

6 Connec the case speaker cable to SPK.

Users please note that the 24-pin power cable can be connected to the

PWR1 connector.

With ATX v2.x power supply, users please

note that when installing 24-pin power

cable, the latches of power cable and the

PWR match perfectly.

Connecting 24-pin power cable

24-pin power cable
