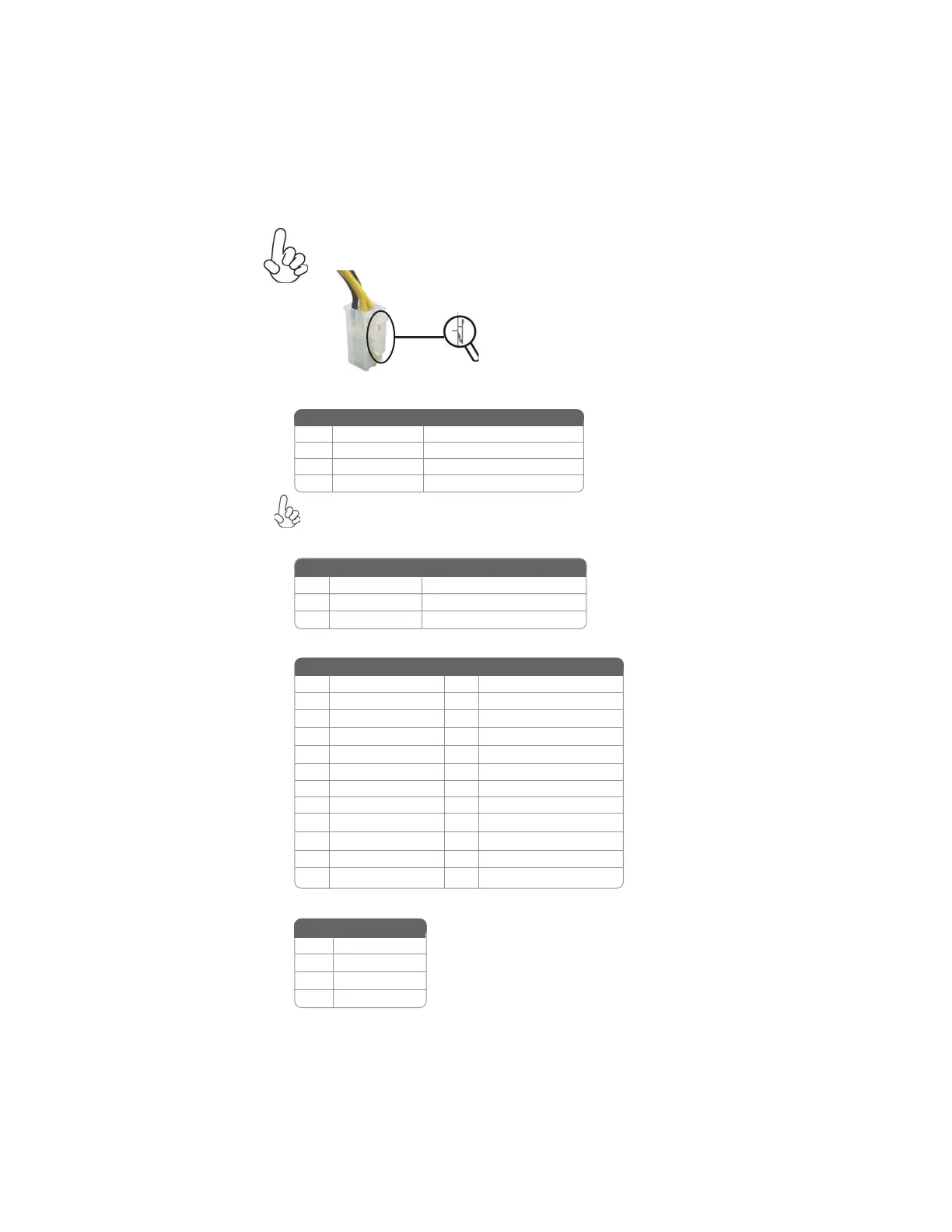

Installing the Motherboard

ATX_12V: ATX 12V Power Connector

Users please note that the fan connector supports the CPU cooling fan of

1.1A ~ 2.2A (26.4W max) at +12V.

PWR: ATX 24-pin Power Connector

Pin Signal Name Pin Signal Name

1 +3.3V 13 +3.3V

2 +3.3V 14 -12V

3 Ground 15 Ground

4 +5V 16 PS_ON

5 Ground 17 Ground

6 +5V 18 Ground

7 Ground 19 Ground

8 PWRGD 20 -5V

9 +5VSB 21 +5V

10 +12V 22 +5V

11 +12V 23 +5V

12 +3.3V 24 Ground

SYS_FAN: System Cooling FAN Power Connector

Pin Signal Name Function

1 GND System Ground

2 +12V Power +12V

3 Sense Sensor

CPU_FAN: FAN Power Connector

Pin Signal Name

4 +12V

3 +12V

2 Ground

1 Ground

1 GND System Ground

3 Sense Sensor

4 Control CPU FAN control

Pin Signal Name Function

2 +12V Power +12V

When installing 4-pin power cable, the

latches of power cable and the ATX_12V

match perfectly.

4-pin power cable

Connecting 4-pin power cable

The ATX_12V power connector is used to provide power to the CPU.
