ECS MCP61M-M3 User Manual

55
NVIDIA RAID Configuration
Figure 1.10 Array List Window

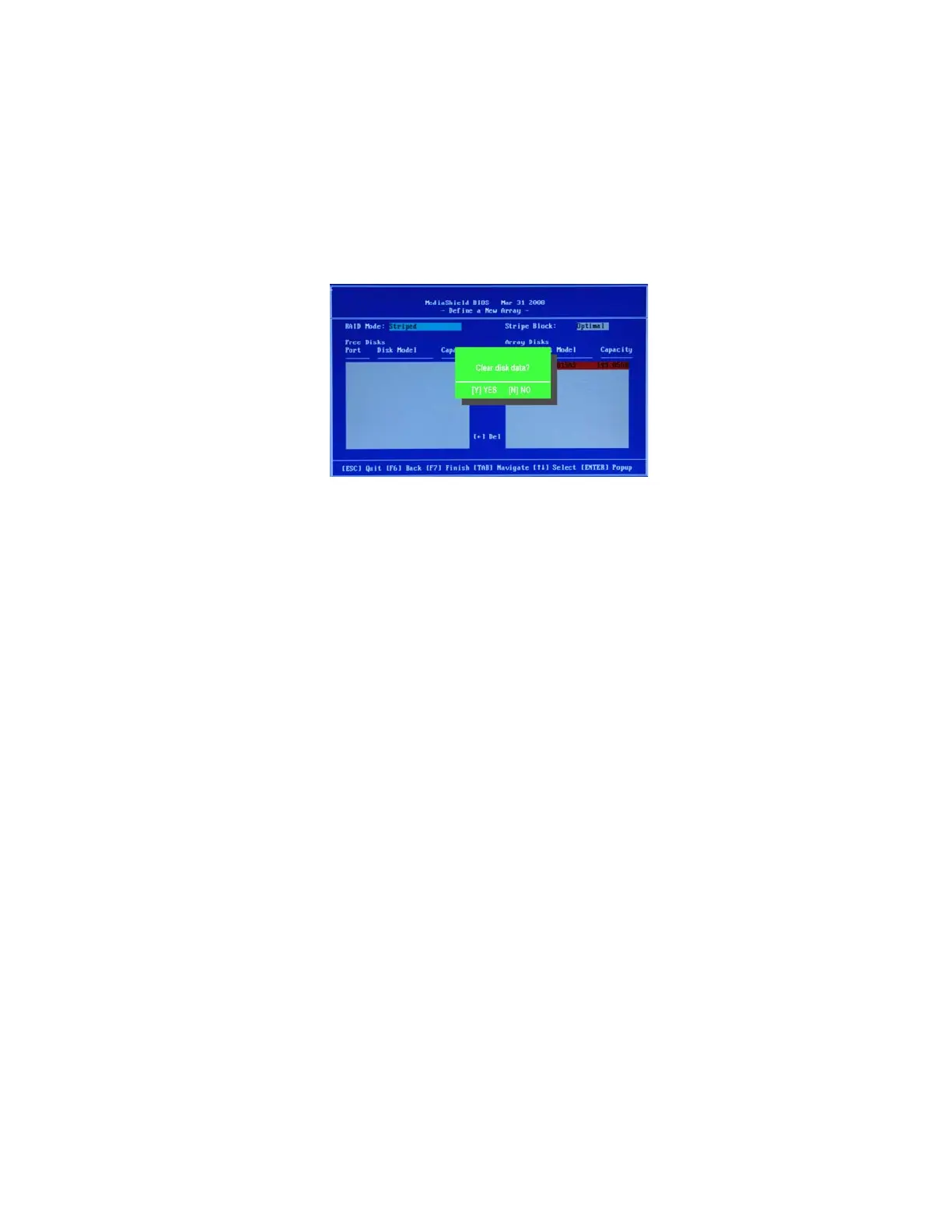

Press Y to clear the disk data.
The Array List screen appears, where you can review the RAID arrays that
you have set up.
The Array Detail screen shows various information about the array that you
selected, such as Striping Block used, RAID Mode, Striping Width, Disk
Model Name, and disk capacity.
If you want to mark this disk as empty and wipe out all its contents, press C.
At the prompt, press Y to wipe out all the data, otherwise press N.
Press Enter again to go back to the previous screen and then press F10 to exit
the RAID setup.
3
Use the arrow keys to select the array that you want to set up, then press B
to specify the array as bootable.
Press Enter to view and verify details.
5
6
7
4
2

ECS MCP61M-M3 Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	3
Power fan connector	Yes
Number of SATA connectors	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Audio chip	VIA VT1705
Power source type	ATX
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
BIOS memory size	64 Mbit
