Edge-Core ECS4310-18T User Manual

C HAPTER 3 | Installing the Switch
Connecting to a Power Source
– 44 –
CONNECTING TO A POWER SOURCE
To connect a switch to a power source:
1. Insert the power cable plug directly into the AC socket located at the back of
the switch.

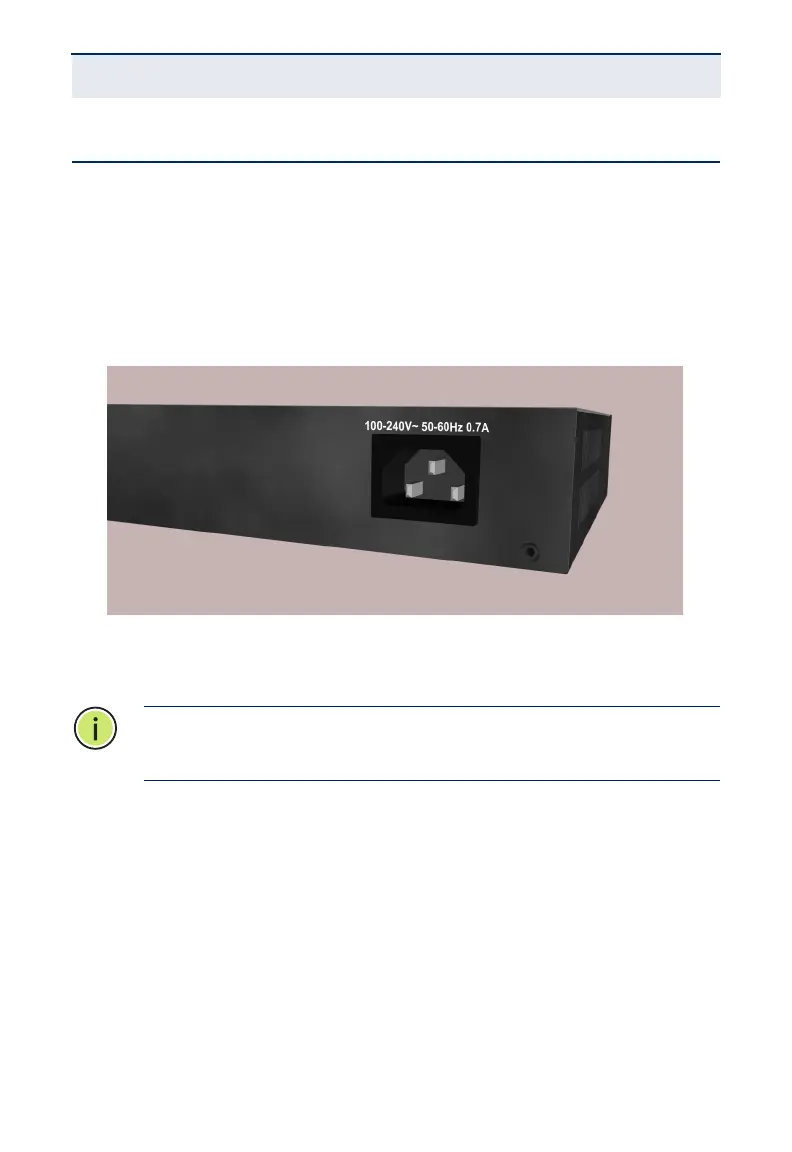

Figure 14: Power Socket
2. Plug the other end of the cable into a grounded, 3-pin, AC power source.
3. Check the front-panel LEDs as the device is powered on to be sure the
Power LED is lit. If not, check that the power cable is correctly plugged in.
N OTE : For International use, you may need to change the AC line cord.
You must use a line cord set that has been approved for the socket type
in your country.

Edge-Core ECS4310-18T Specifications

General

Number of Ports	18
Switching Capacity	36 Gbps
Forwarding Rate	26.78 Mpps
Power Consumption	20.3W
Dimensions	440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in)
Weight	2.7 kg (5.95 lbs)
Ports	16 x 10/100/1000BASE-T 2 x 1G/10G SFP+
MAC Address Table Size	8K
Power Supply	Internal Power Supply
Product Type	Switch
Port Type	10/100/1000 Mbps
Layer	Layer 2
Jumbo Frame Support	9K bytes
