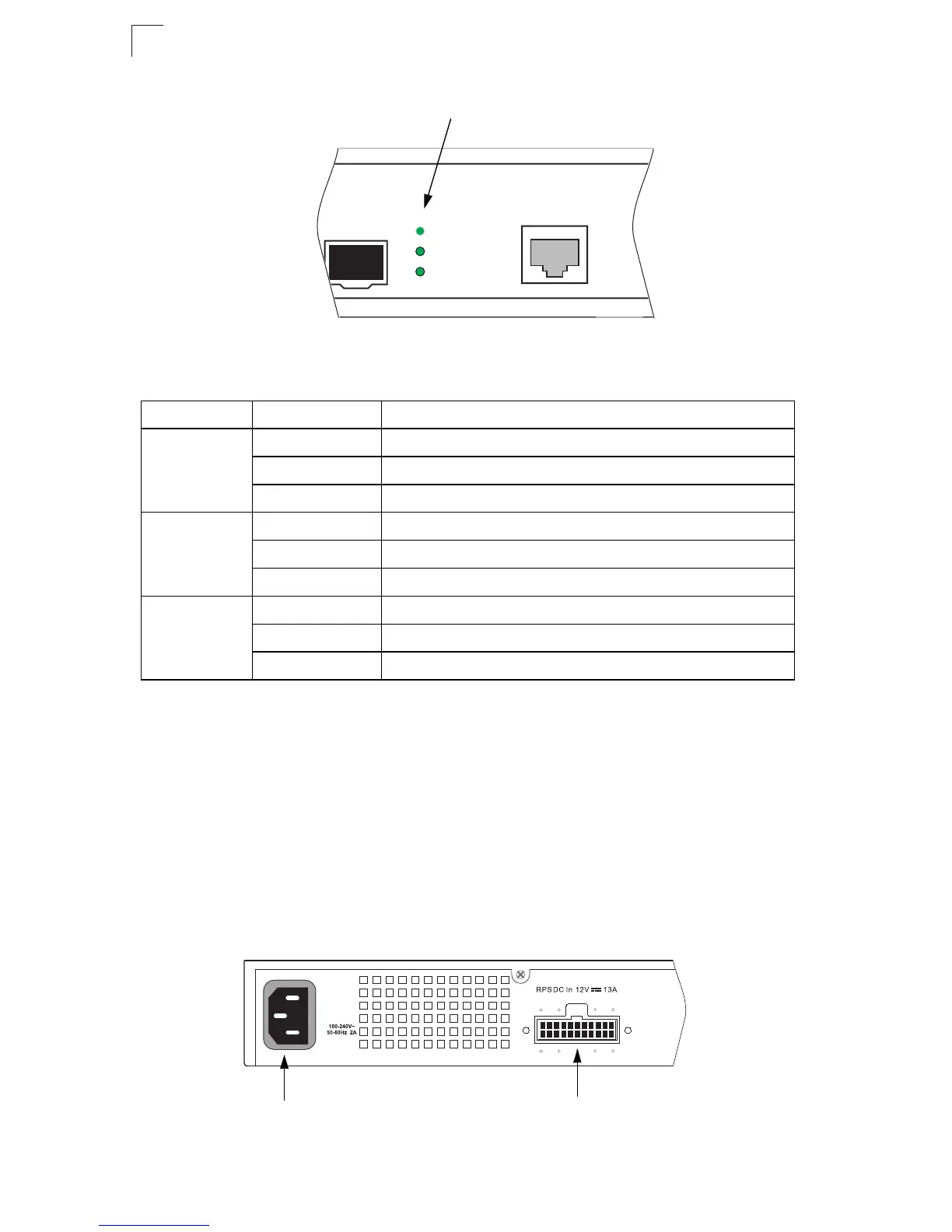

Figure 1-4 System LEDs
Optional Redundant Power Supply
The switch supports an optional Redundant Power Supply (RPS), that can supply
power to the switch in the event the internal power supply fails.
Power Supply Sockets
There are two power sockets on the rear panel of each switch. The standard power
socket is for the AC power cord. The socket labeled “RPS” is for the optional
Redundant Power Supply (RPS).
Figure 1-5 Power Supply Sockets
Table 1-2 System Status LEDs
LED Condition Status
Power Green Internal power is operating normally.
Amber Internal power supply failure.
Off Power off or failure.
RPS Green Redundant power supply is receiving power.
Amber Fault in redundant power supply, including thermal or fan failure.
Off Redundant power supply is off or not plugged in.
Diag Flashing Green System self-diagnostic test in progress.
Green System self-diagnostic test successfully completed.
Amber System self-diagnostic test has detected a fault.
