6. OPERATIONS AND ILLUSTRATIONS V-65E-A
6-21

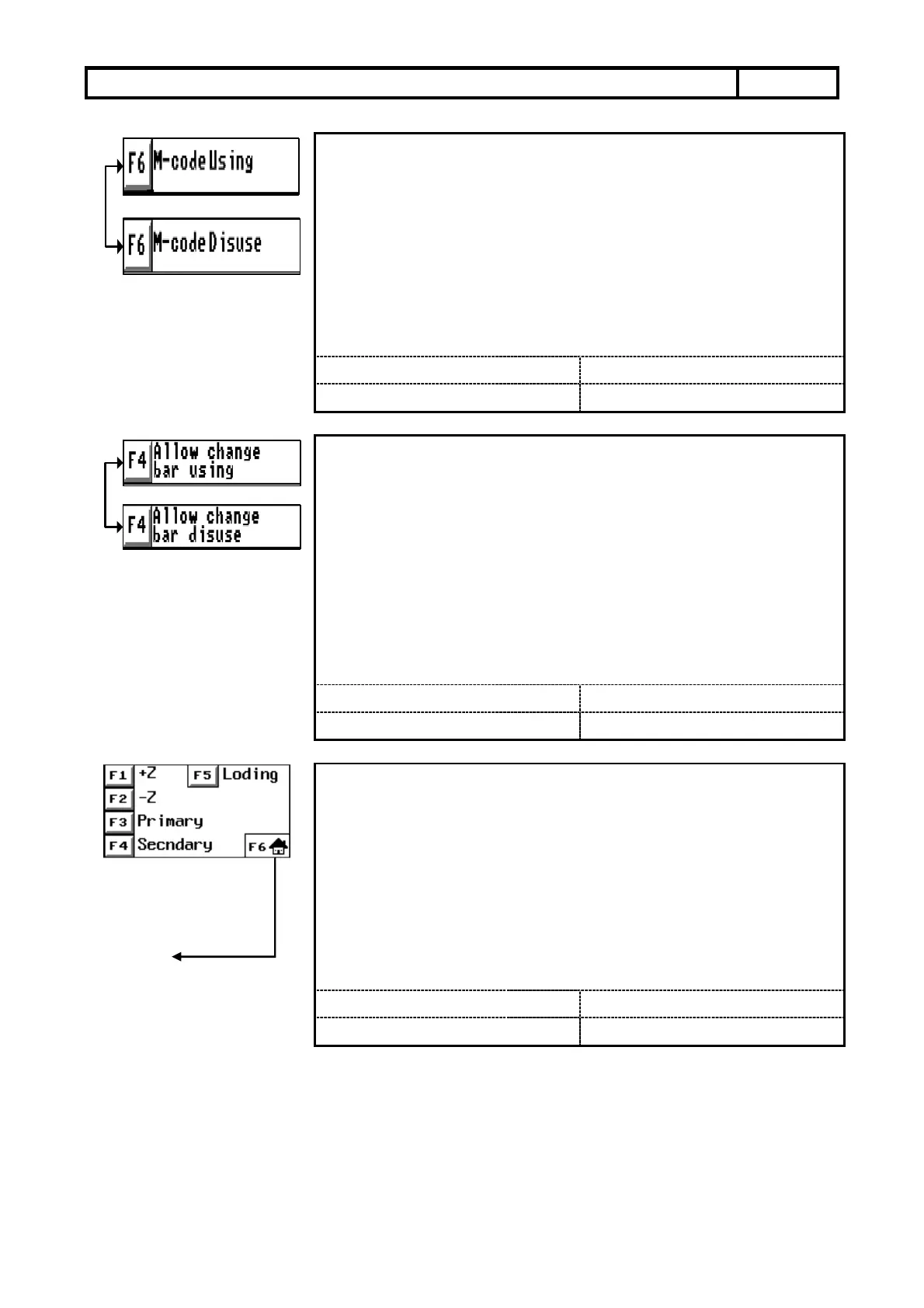

Parameter description︰The lathe gives a feeding signal to the bar feeder
are two modes:
1. Chuck Signal 2. M-Code.
If the interface of lathe and bar feeder only
connect “Chuck Signal”, please set for “0: M-Code
No Use”.
If the interface of lathe and bar feeder connect
“Chuck Signal” and “M-Code”, please set for “1:
M-Code Use”.
1.2M Generally value：
Setting range ：
NO
1.5M Generally value：
Setting value ：
Parameter description︰The lathe gives a changing bar signal to the bar
feeder are two modes:
1. Chuck Signal 2. Permit to change bar signal.
If the interface of lathe and bar feeder only
connect “Chuck Signal”, please set for “0: Permit
to change bar signal No Use”.
If the interface of lathe and bar feeder connect
“Chuck Signal” and “Permit to change bar signal”,
please set for “1: Permit to change bar signal
Use”.
1.2M Generally value：
Setting range ：
NO
1.5M Generally value：
Setting value ：
Parameter description︰The monitor display as Y0~Y4 on the screen when
operating F1~F5, therefore it advantage to
according to the PLC output.
F1：＋Z (Y0) F3：Primary (Y2)
F2：–Z (Y1) F4：Secondary (Y3)
F5：Loding (Y4)
Note︰ When operating primary and secondary function,
it must backward to the max for the next
operation.
Home page
1.2M Generally value：
Setting range ：
NO
1.5M Generally value：
Setting value ：
To Next Page
