EDGE30 / EDGE2440 / EDGE40 / EDGE2460 / EDGE60 / EDGE3860
Installation and Operating Manual
Original Instruction Manual 8 Rev 2.1 July 12, 2016
4. Set the oven base assembly flat on its casters near the final installation area.

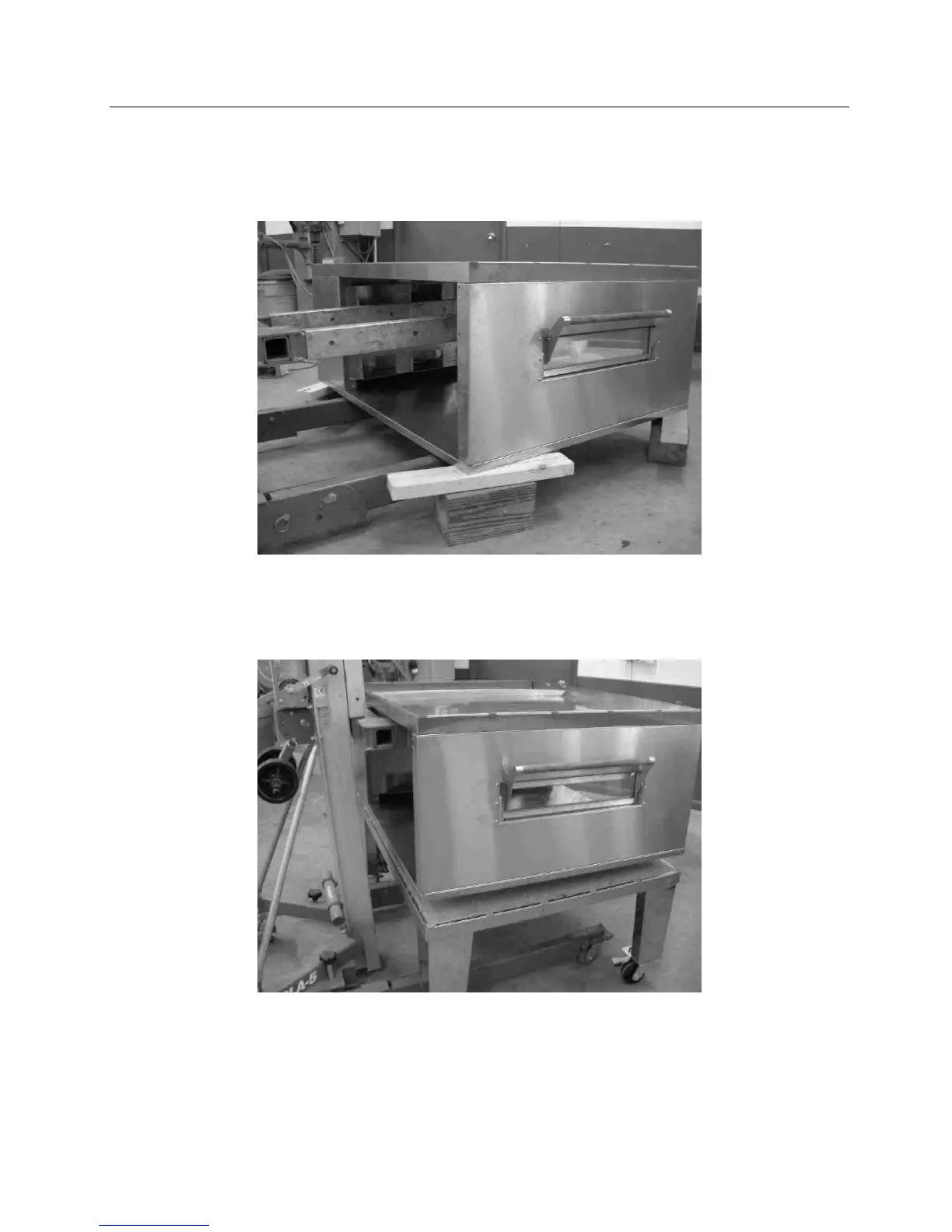

5. Tilt the oven assembly over so that the oven bottom is sitting flat on the floor. If using
a Genie SLA type lift, support the oven about seven inches above the floor using
cribbing blocks on all four corners to allow clearance for the Genie base. (Figure 5)
Figure 5
6. Lift and place the oven onto the base using a Genie SLA or similar type of lifting
device. (Figure 6)
Figure 6
7. For a triple-stack installation only (no legs), support the oven base about seven
inches above the floor using cribbing blocks on all four corners to allow clearance for
the Genie base while stacking the ovens.
