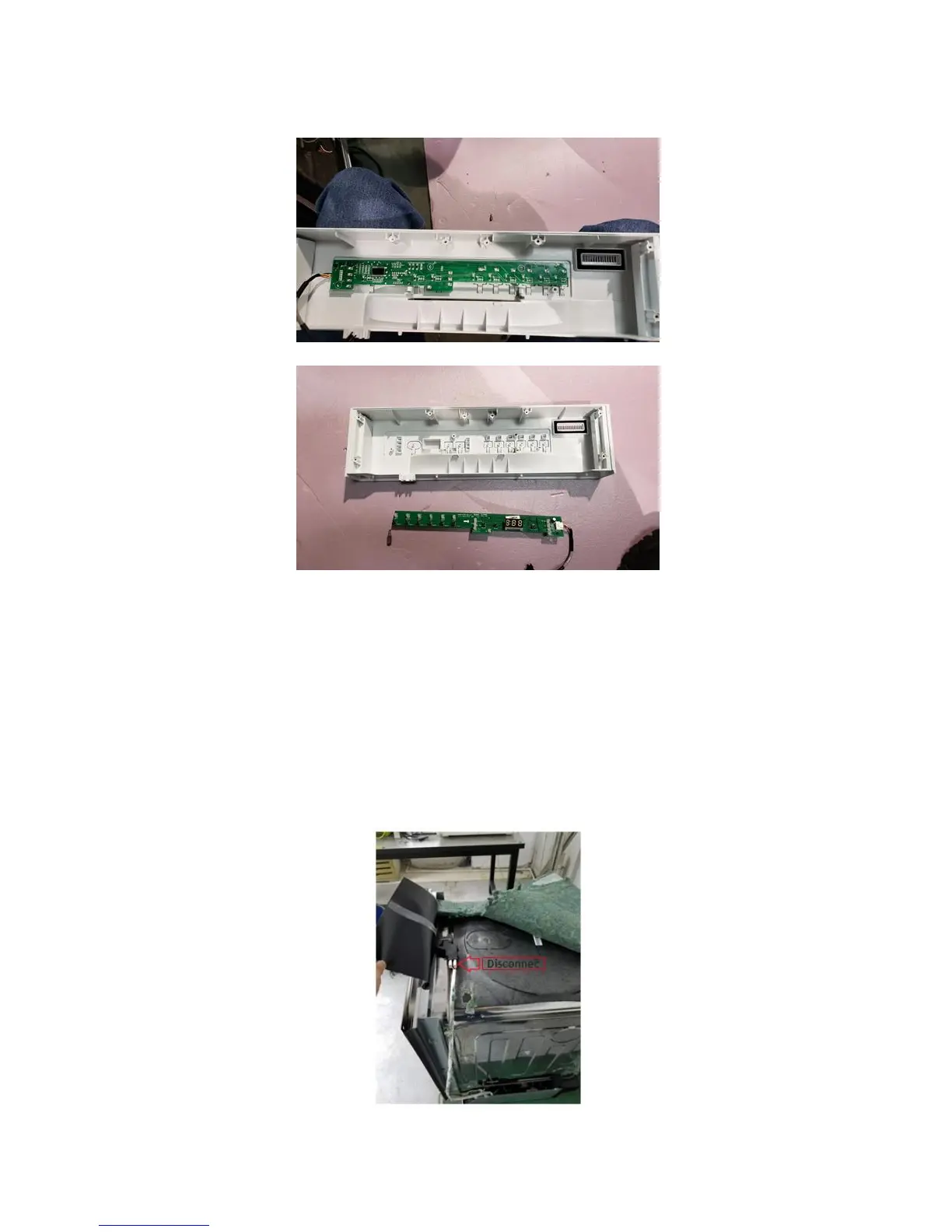

5. Remove the PCB user interface board
Door Switch Assembly
The door switch assembly consists of the door lock and door latch. The door lock is
connected to the line (hot) side of 12 VAC.
WARNING: Power remains applied to the controller location at CN6, Pin 1. while the
door is open (unlatched).
To remove the door switch assembly:
Disconnect the power supply to the dishwasher.
Disconnect the 2 wiring harnesses from the door switch.
