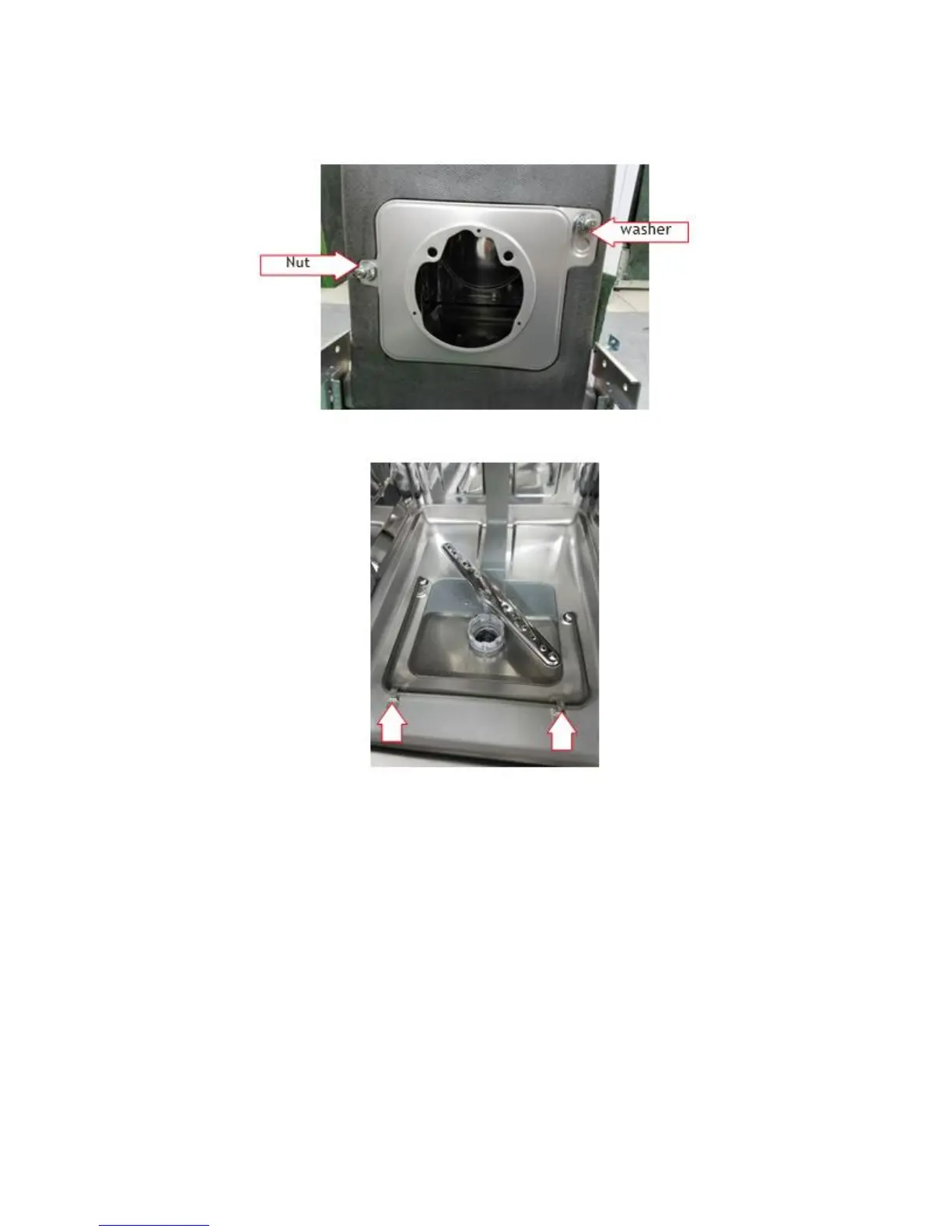

7. Remove the two nuts and washers that attach the heating element to the bottom
of the tub.
8. Lift the backside of the heating element and release it from the 2 retainers.
Wash Pump Assembly (Pump and Motor)
The wash pump assembly is located under the tub on the right of the sump assembly.
The motor utilizes a start capacitor rated at 10μfd. The motor rotates clockwise (as
viewed from the terminal end) and draws approximately 1 amp at 120 VAC. The motor
has an approximate resistance of R1=24-30Ωand R2=19-25 Ω
To remove the wash pump assembly:
1. Disconnect the power.
2. Open the dishwasher door and remove the bottom rack.
3. Lay the dishwasher on its back.
4. Remove the 1 screw that attaches the base cover to the base, then use a flat-
head screw driver to release the snap joints.
5. Remove the wiring harness connected to the float switch on the base cover.
