Inner Door Panel

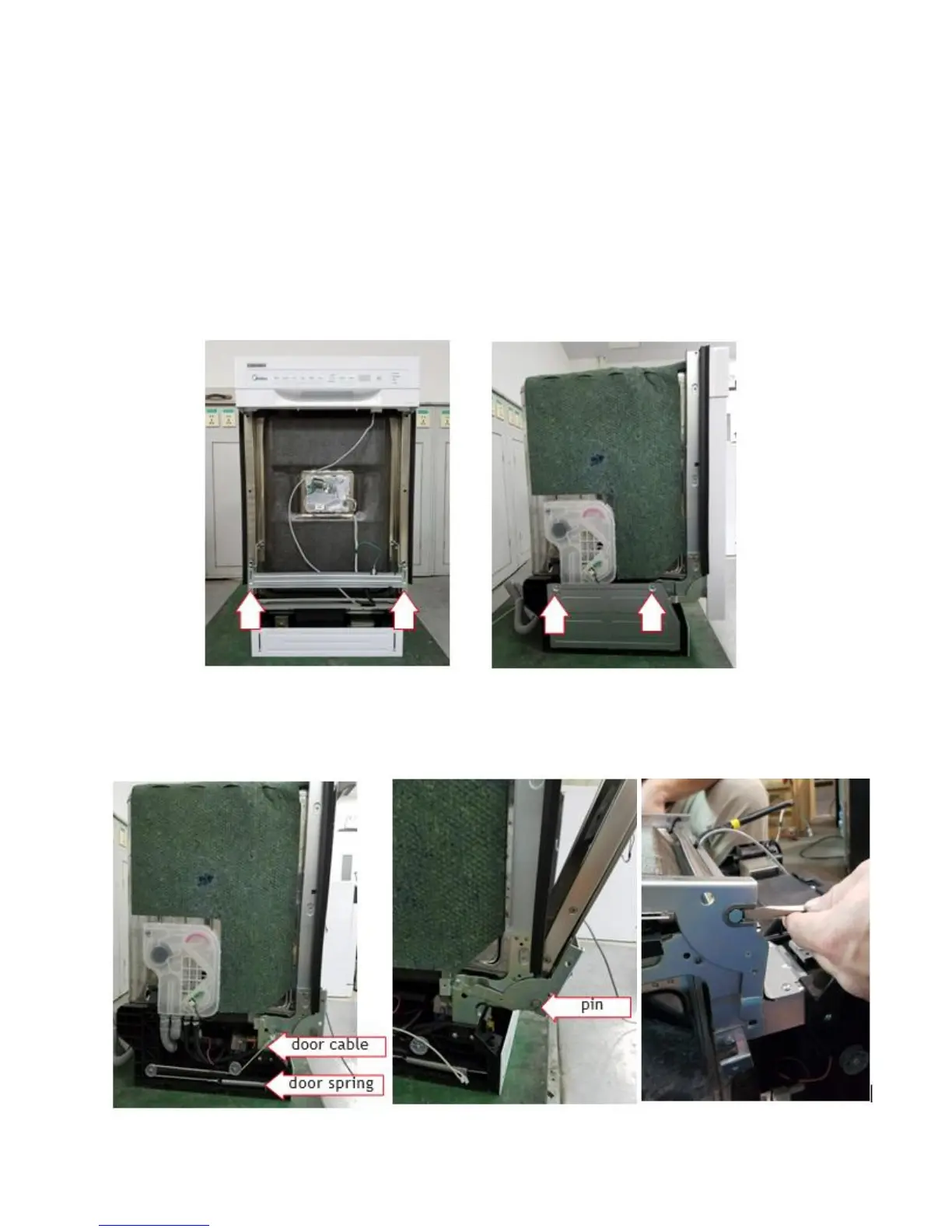

To remove the inner door panel:
1. Disconnect power.
2. Remove the control panel. (See Control Panel.)
3. Remove the detergent/rinse module. (See Detergent / Rinse Aid Module.)
4. Remove the 2 screws from the hinge panel.
5. Remove the 2 screws from each of the base side panels.
6. Disconnect door spring and door cable.
7. Open the inner door approximately 10 degrees and lift the door until the door
hinge separates from the pin. A flat-head screwdriver may be used to assist.
